← Jackrabbit JR 400-180 (s/n 823-1230)

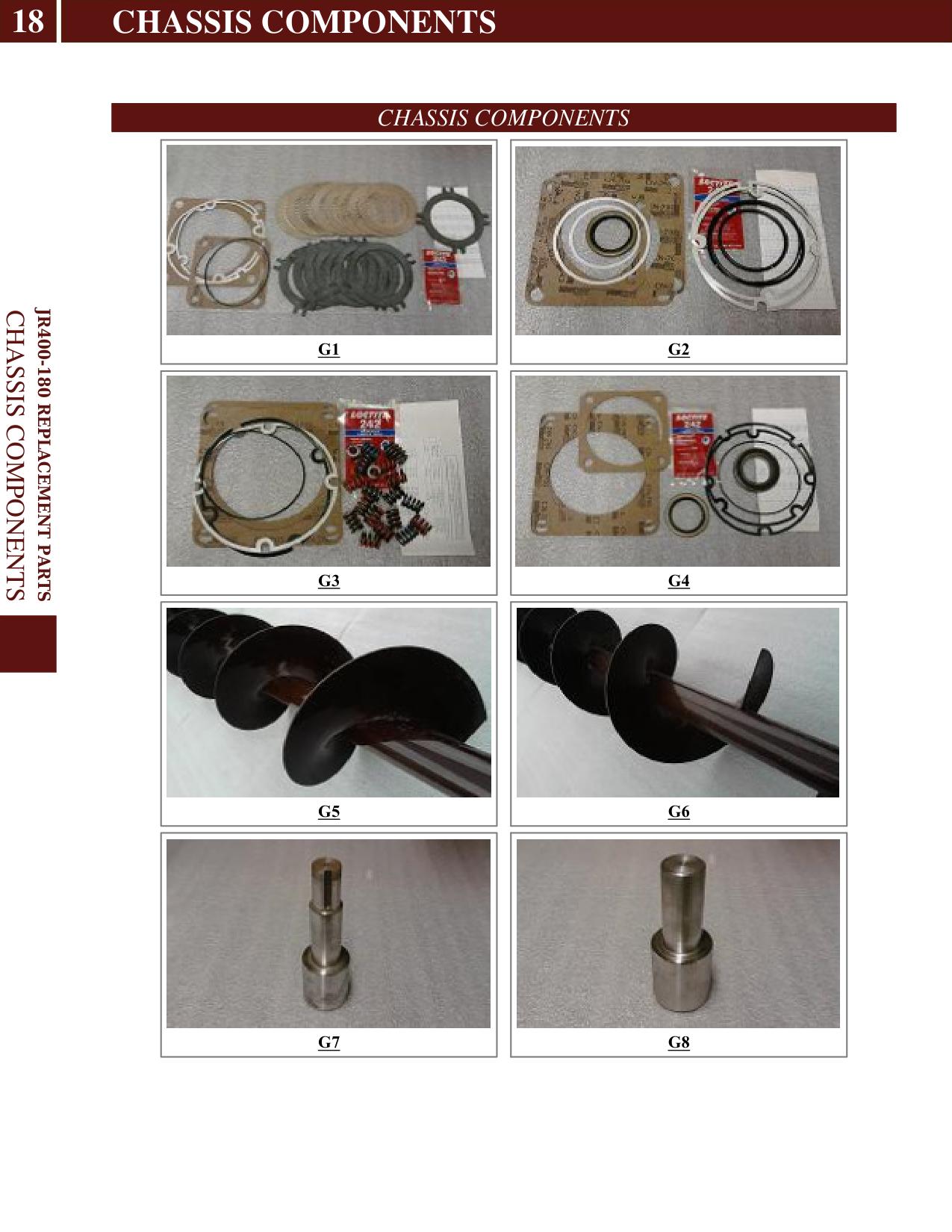

Chassis Components · Jackrabbit Jackrabbit JR 400-180 (s/n 823-1230)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| G1 | 27869A | Brake Lining Kit | |
| G2 | 27869B | Brake Seal Kit | |
| G3 | 27869C | Brake Spring Kit | |
| G4 | 27869D | Brake Bearing Kit | |
| G5 | 26291 | Left Auger | |
| G6 | 26290 | Right Auger | |
| G7 | 26612 | Auger Drive Mount | |
| G8 | 26286 | Dead Shaft |
