Cabin Components · Jackrabbit Jackrabbit JR 400-180 (s/n 823-1230)

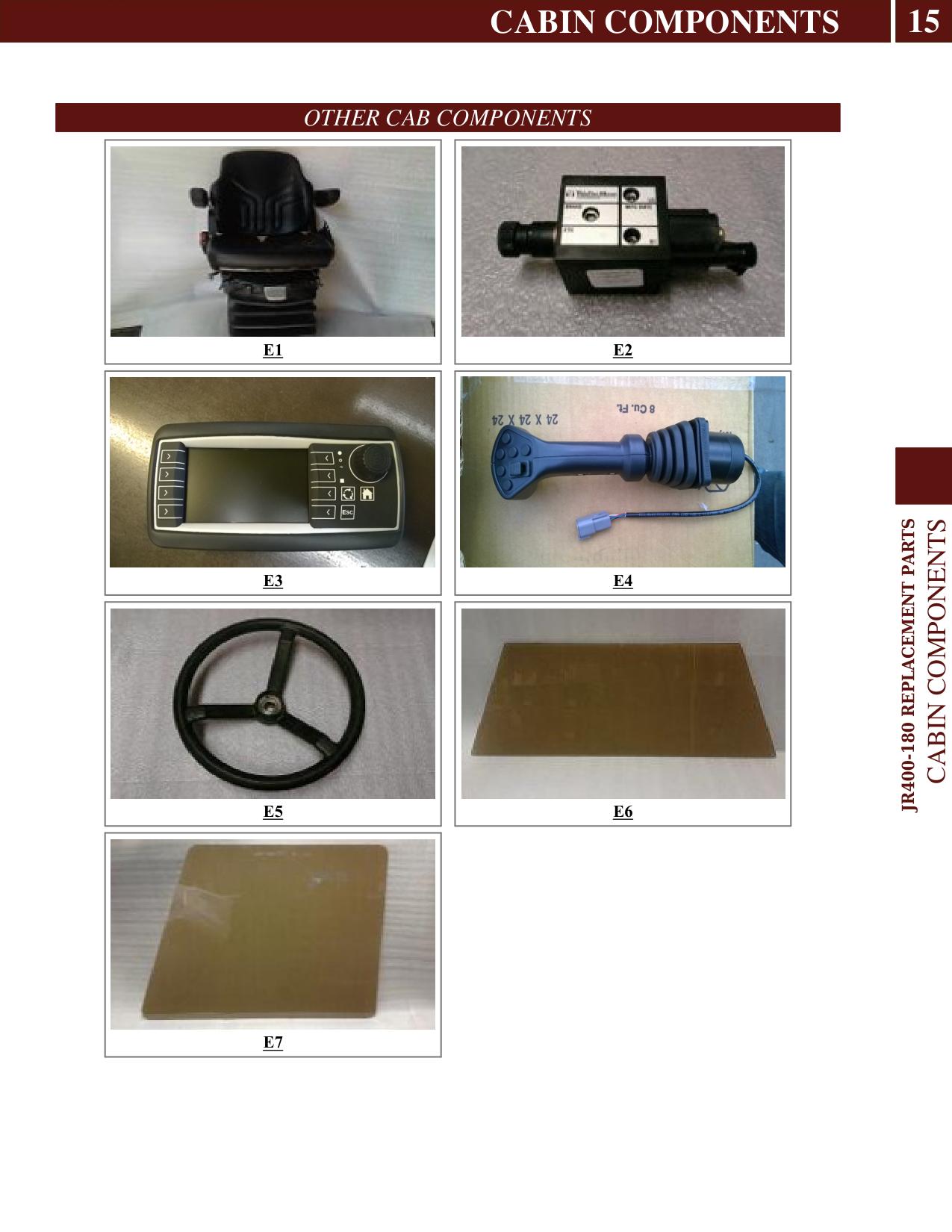

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| E1 | 28823 | Air Suspension Seat | |
| E2 | 33136 | Throttle Control | |
| E3 | 33930 | Digital Display | |
| E4 | 33923 | Joystick | |
| E5 | 27837 | Steering Wheel | |
| E6 | 33951 | 3/8 Rear Window | |
| E7 | 33075 | 3/8 Right Window |
