← Jackrabbit JR 400-180 (s/n 823-1230)
Cab Door · Jackrabbit Jackrabbit JR 400-180 (s/n 823-1230)

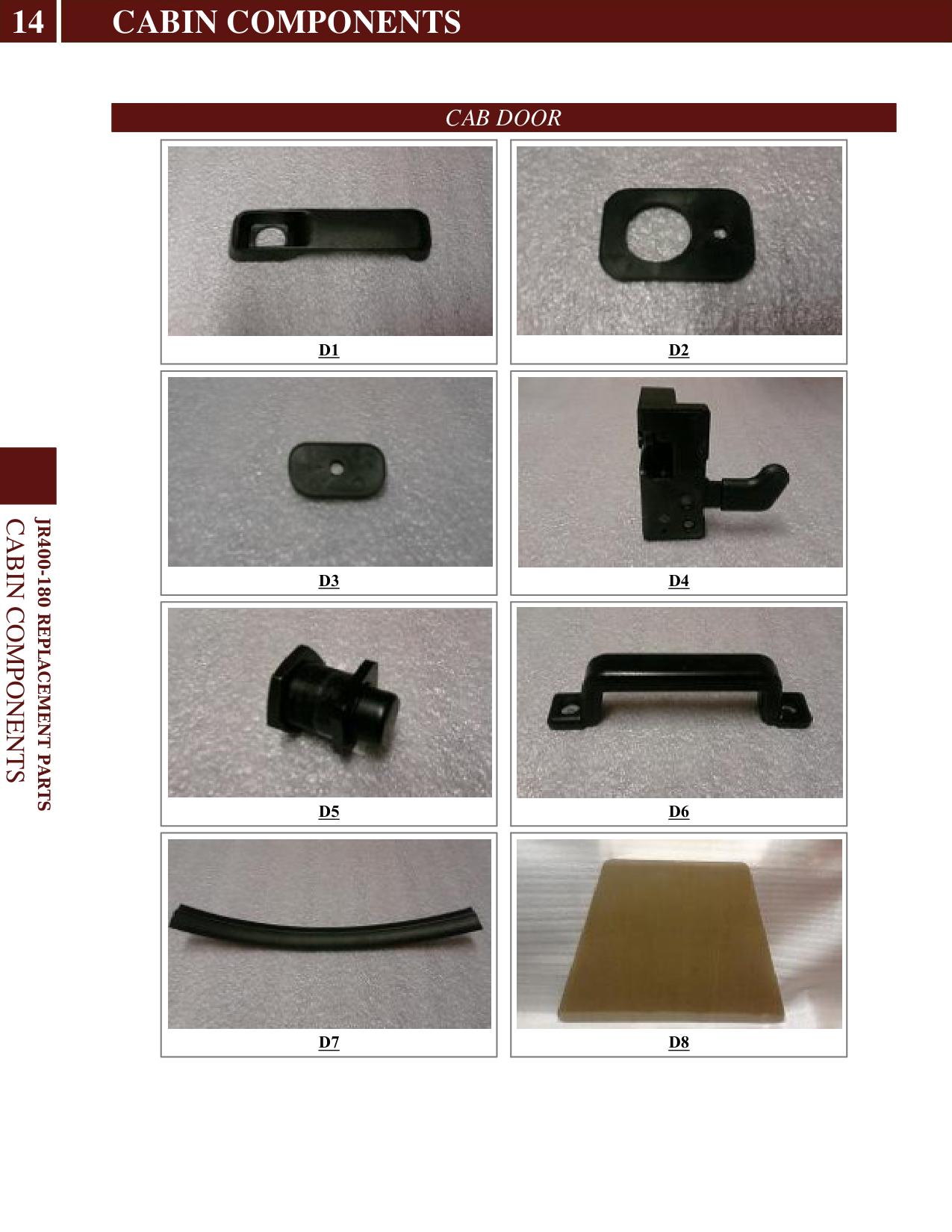

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| D1 | 28345 | Door Handle | |
| D2 | 28343 | Large Door Handle Gasket | |
| D3 | 28342 | Small Door Handle Gasket | |
| D4 | 28344 | Door Latch | |
| D5 | 28341 | Thumb Button | |
| D6 | 27759 | Door Handle | |
| D7 | 27596A | Door Weather Stripping 17' | |
| D8 | 25915 | Front Window |
