← Jackrabbit JR 400-180 (s/n 823-1230)
Climate Control · Jackrabbit Jackrabbit JR 400-180 (s/n 823-1230)

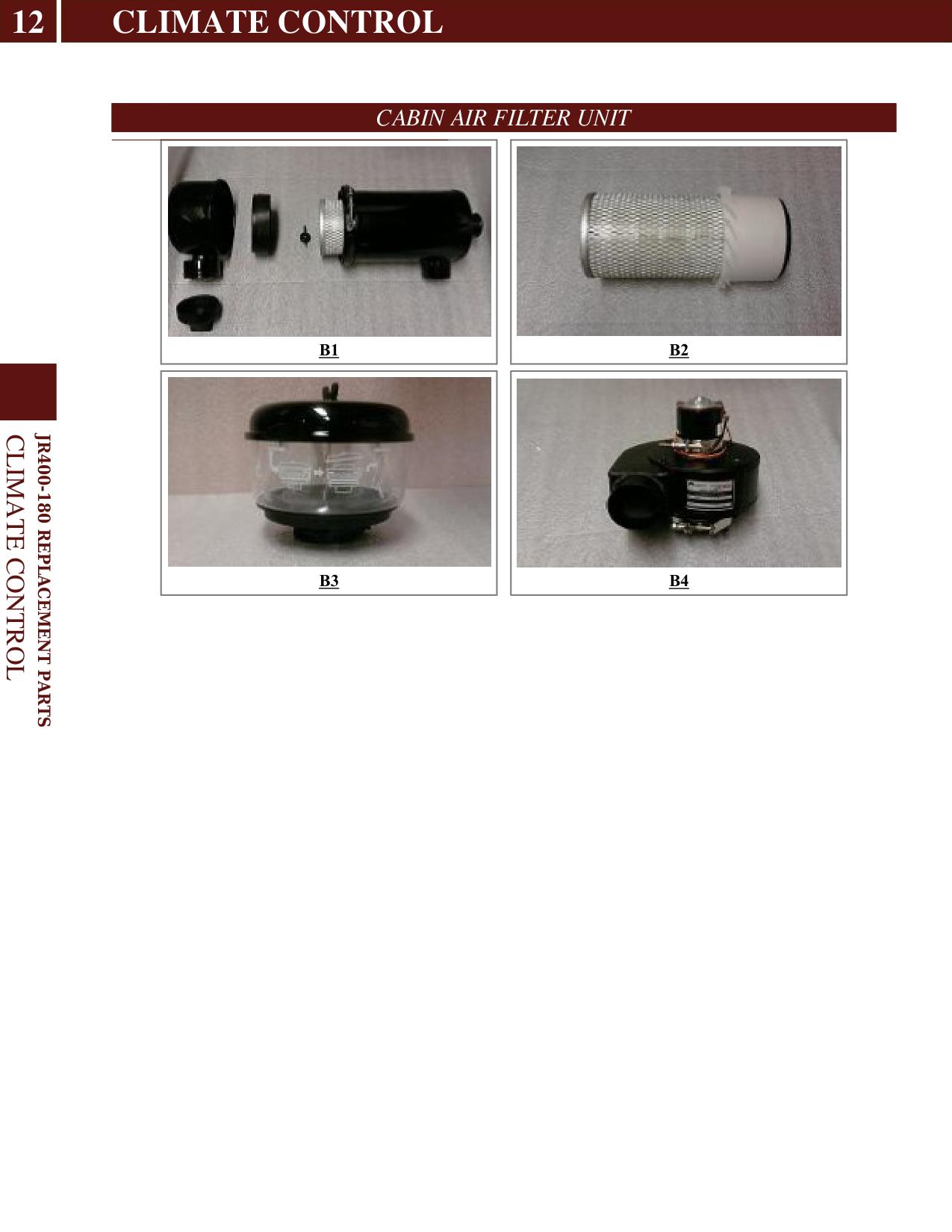

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| B1 | 27004 | Cab Filter Assembly | |
| B2 | 27004A | Cab Air Filter | |
| B3 | 26938 | Cab Pre-Cleaner | |
| B4 | 27324 | Cab Fan Blower Assembly | |
| C2 | 27147 | Condenser To Dryer | |
| C3 | 27865 | Dryer To A/C Unit | |
| C4 | 27866 | Compressor To A/C Unit | |
| C5 | 27150 | Cab Wall To A/C Unit | |
| C6 | 27148 | Dryer To Cab Wall | |
| C7 | 27149 | Cab Wall To A/C Unit | |
| C8 | 27151 | Cab Wall To Compressor |
