Climate Control · Jackrabbit Jackrabbit JR 400-180 (s/n 823-1230)

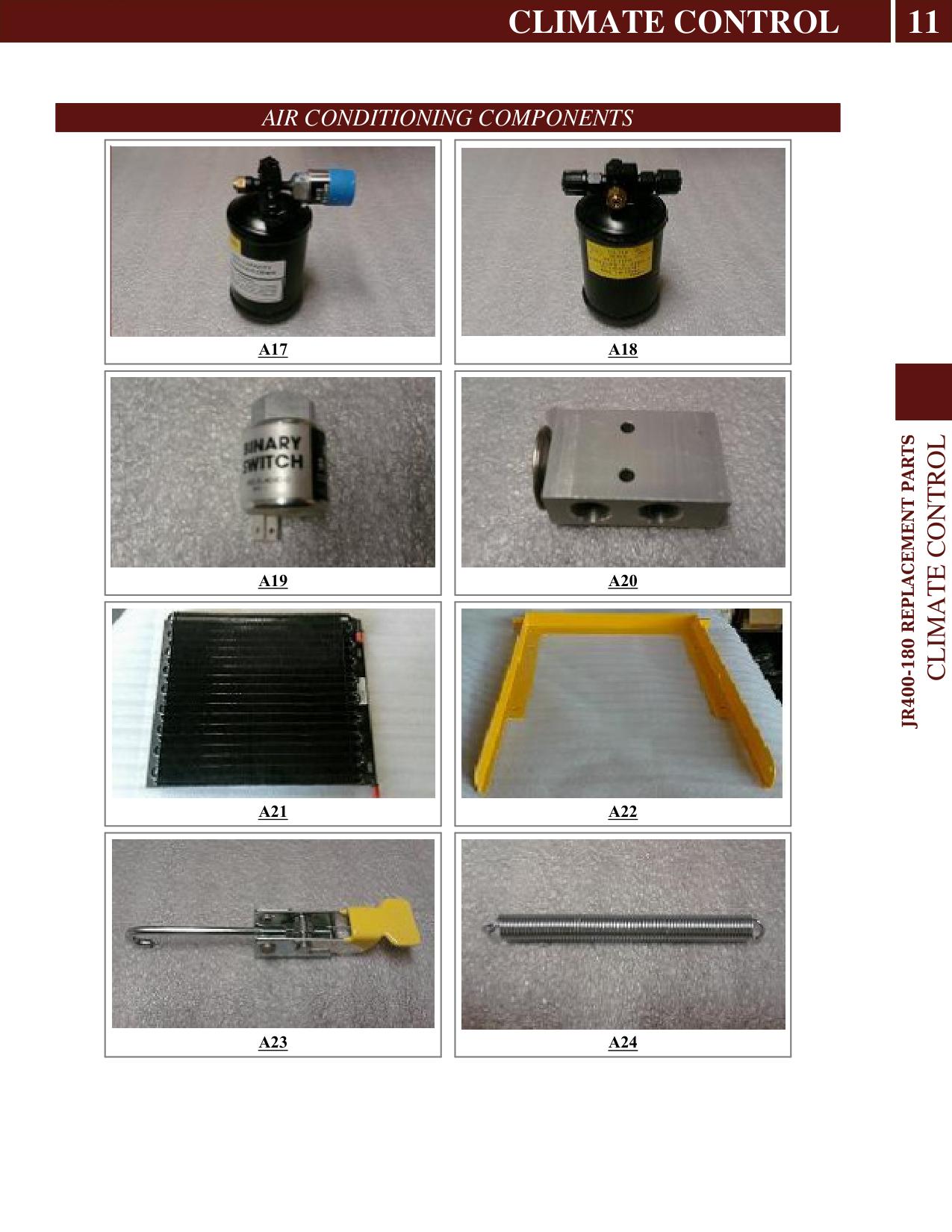

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| A17 | 26407 | Receiver Dryer W/ Binary Switch | |
| A18 | 26407A | Receiver Dryer Only | |
| A19 | 27397 | Binary Switch | |
| A20 | 27357 | Expansion Valve | |
| A21 | 33916 | Condenser T3 | |
| A22 | 33915 | Condenser Frame | |
| A23 | 27018 | Condenser Latch | |
| A24 | 27391 | Condenser Spring |
