← Jackrabbit JR 400-180 (s/n 823-1230)
Climate Control · Jackrabbit Jackrabbit JR 400-180 (s/n 823-1230)

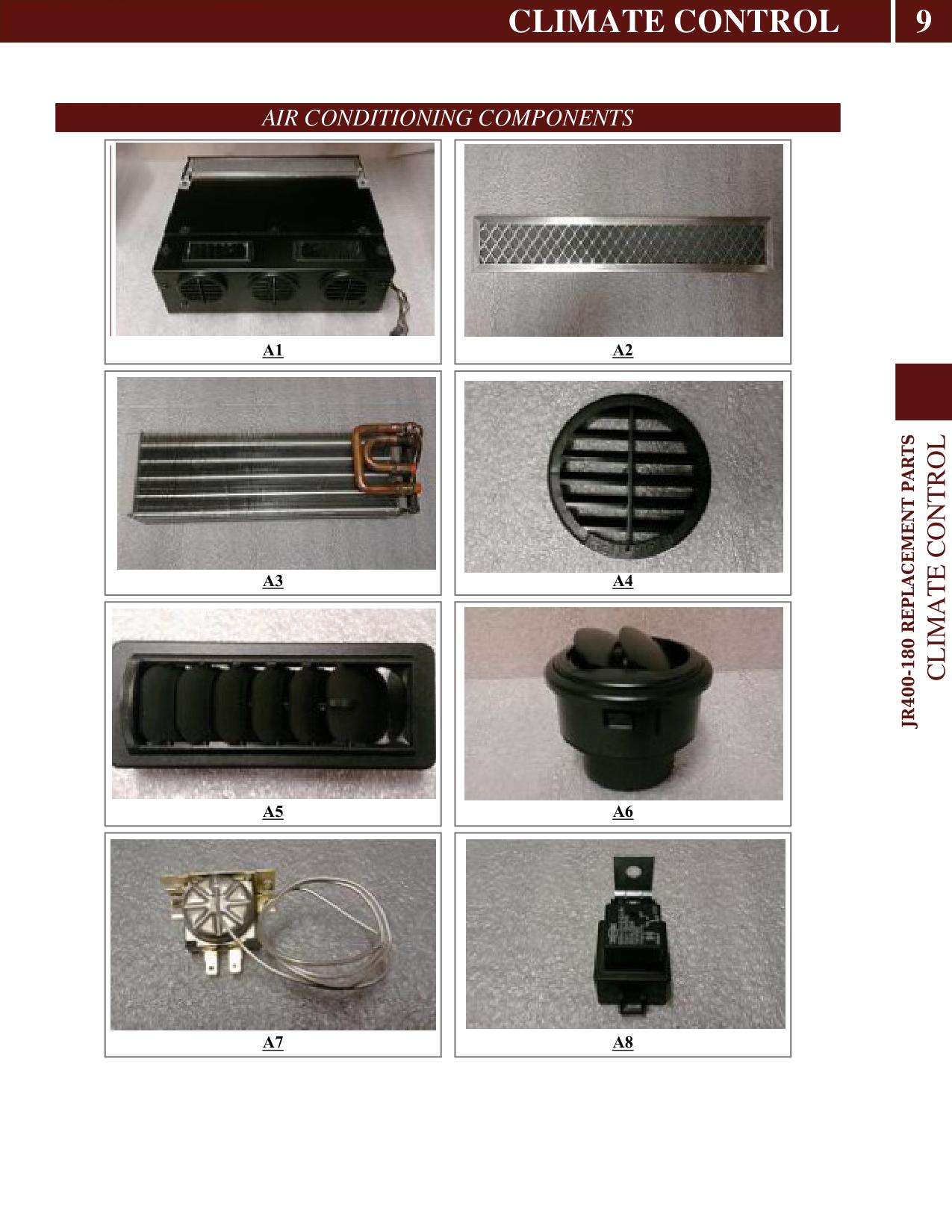

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| A1 | 26406 | A/C Unit Assembly | |
| A2 | 26406A | Filter Screen | |
| A3 | 26406B | Evaporator Coil | |
| A4 | 26406C | Round Louver | |
| A5 | 26406D | Rectangular Louver | |
| A6 | 27440 | Air Diffuser | |
| A7 | 27326 | A/C Thermostat | |
| A8 | 27308 | A/C Relay | |
| A9 | 27325 | A/C Switch Hi-Low 10 Other Cab Components | |
| A10 | 27325A | A/C Switch On-Off | |
| A11 | 27164 | Fan Motor | |
| A12 | 27520 | Blower Wheel | |
| A13 | 27920A | Blower Housing Assembly | |
| A14 | 27449 | Diffuser Hose | |
| A15 | 26408A | Compressor T3 | |
| A16 | 27323 | Compressor Mount |
