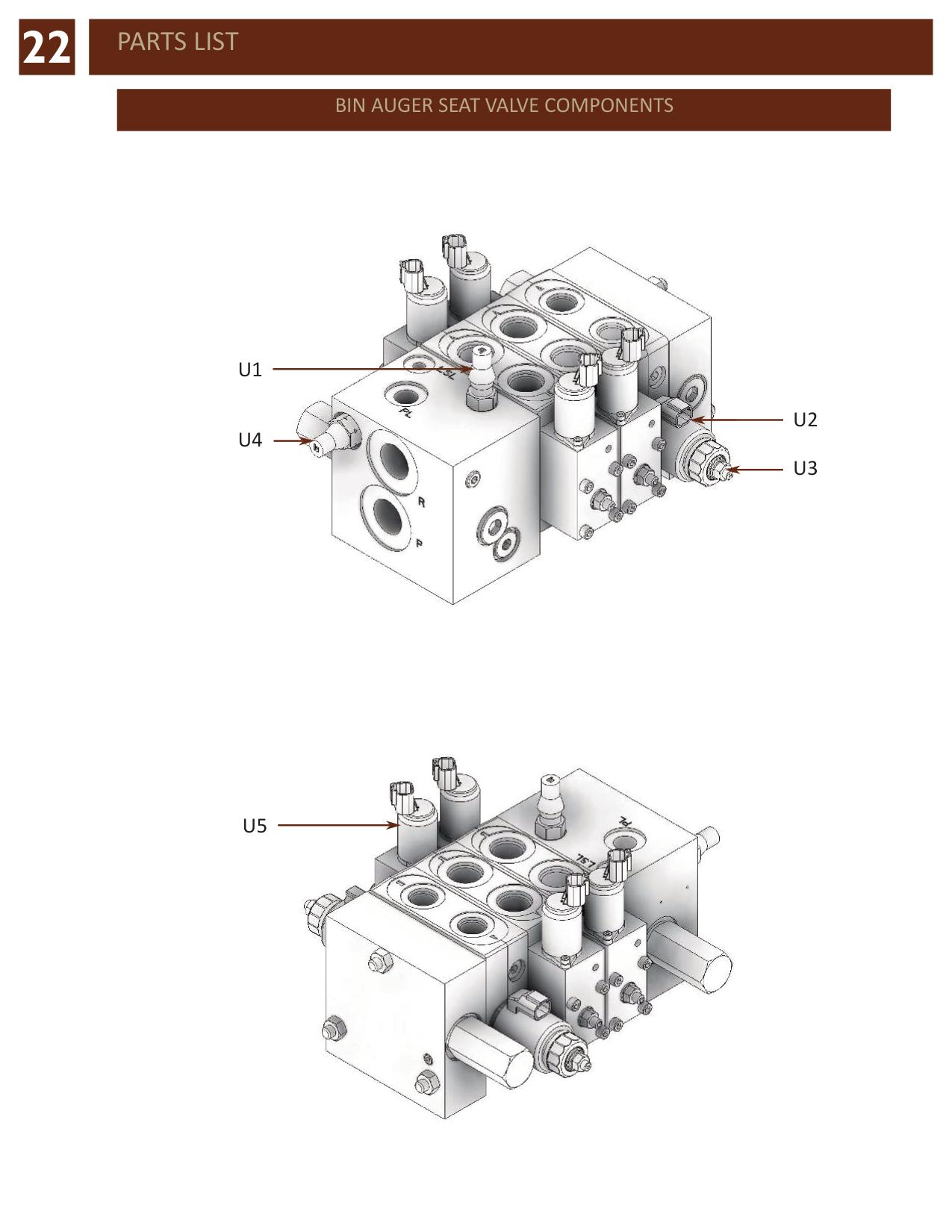

Bin Auger Seat Valve Components · Jackrabbit Jackrabbit JR 400-180 (s/n 1367+)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| U1 | 31227 | PRESSURE RELIEF VALVE | |
| U2 | 34123A | SOLENOID COIL | |
| U3 | 31224 | COMPRESSION PIPE | |
| U4 | 31226 | PILOT PRESSURE VALVE | |
| U5 | 31225 | PROP VALVE | |
| V1 | 34360 | SOFTWARE | |
| V2 | 34096 | SEAT HARNESS, JACKRUNNER 2021 | |
| V3 | 34098 | SCR MODULE HARNESS | |
| V4 | 34113 | ENGINE HARNESS | |
| V5 | 33820 | BODAS RC20-10/30, FLASHED FOR JR19 T4F v 3.00 | |
| V6 | 34114 | CAB HARNESS, JACKRUNNER 2021 | |
| V7 | 34115 | KEY SWITCH HARNESS | |
| V8 | 34187 | POWER CABLES AND BOX ASSEMBLY | |
| V9 | 34116 | ROOF LIGHT HARNESS | |
| V10 | 34117 | CUMMINS TIER 4 DIAGNOSTIC HARNESS | |
| V11 | 34112 | EXTERNAL HARNESS | |
| V12 | 34104 | REAR HARNESS |
