Miscellaneous Components · Jackrabbit Jackrabbit JR 400-180 (s/n 1367+)

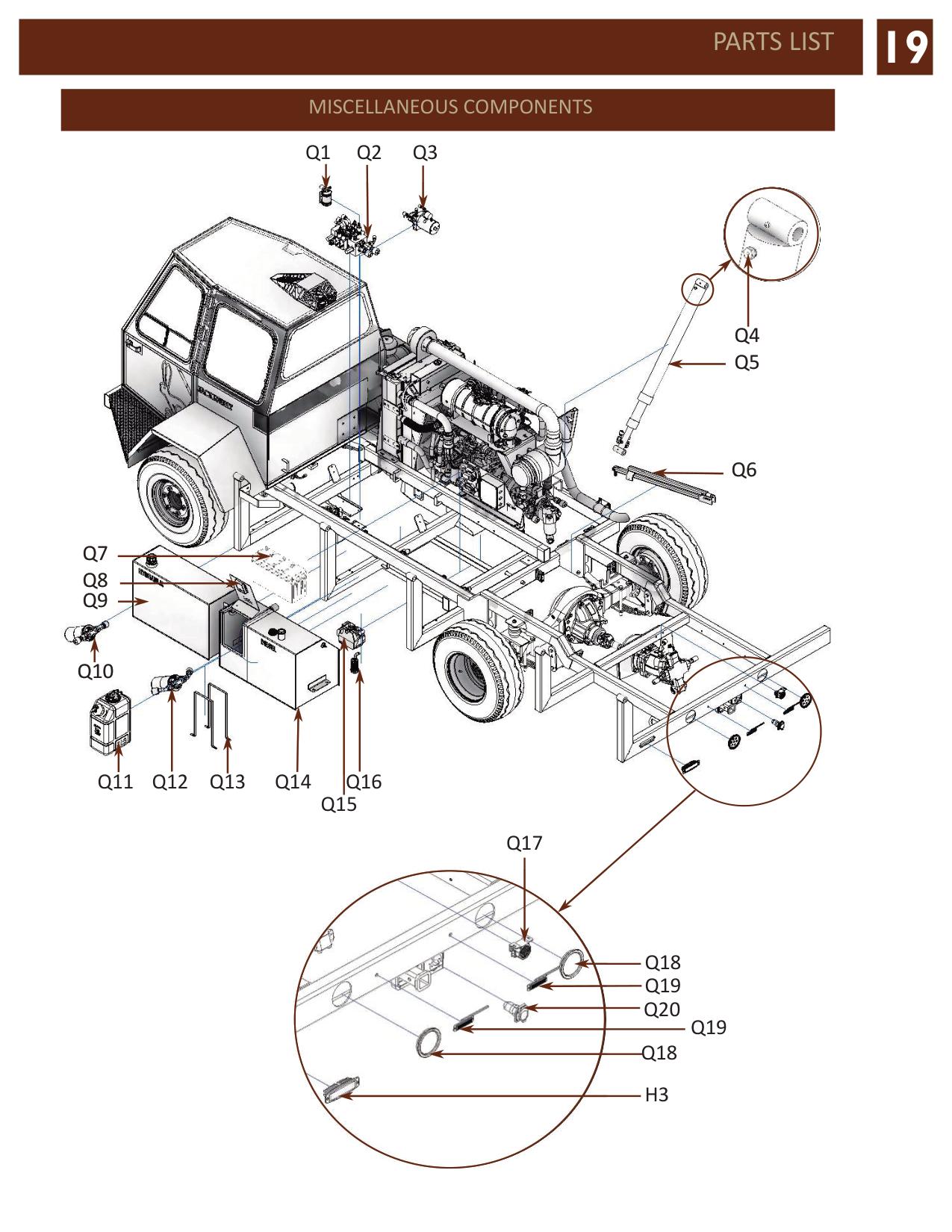

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| Q1 | 26407 | A/C RECEIVER DRIER W/ BINARY SWITCH | |
| Q2 | 27802 | BIN AUGER VALVE SEAL KIT | |
| Q3 | 34126 | BIN DUMP ELECTRIC PUMP | |
| Q4 | 25711D | BIN CYLINDER BLEEDER VALVE | |
| Q5 | 28940 | BIN CYLINDER | |
| Q5.1 | 33730 | BIN CYLINDER SEAL KIT | |
| Q6 | 34415 | SAFETY BAR ASSEMBLY | |
| Q7 | 34211 | 12V DEEP CYCLE BATTERY | |
| Q7.1 | 34123 | BIN AUGER SEAT VALVE | |
| Q8 | 34655 | LARGE FLUSH STYLE LATCH | |
| Q9 | 34650W | STANDARD HYDRAULIC TANK | |
| Q10 | 33360 | HYDRAULIC OIL FILTER (FRONT) | |
| Q11 | 34330A | 5 GAL. DEF TANK BOLT-ON NECK | |
| Q12 | 33975 | HYDRAULIC OIL FILTER (REAR) | |
| Q13 | 34558 | DEF TANK HOLD-DOWN STRAP | |
| Q14 | 34710W | T4F FUEL/DEF TANK | |
| Q15 | 34331 | 12V DEF SUPPLY MODULE | |
| Q16 | 34307 | DOSER MODULE FILTER | |
| Q17 | 62532 | BACK-UP ALARM | |
| Q18 | 30596 | RED ROUND LED | |
| Q19 | 34010 | 12 V FLASHING LED STROBE LIGHT | |
| Q20 | 29683 | 7-WAY FEMALE TRAILER PLUG |
