← Jackrabbit JR 400-180 (s/n 1367+)

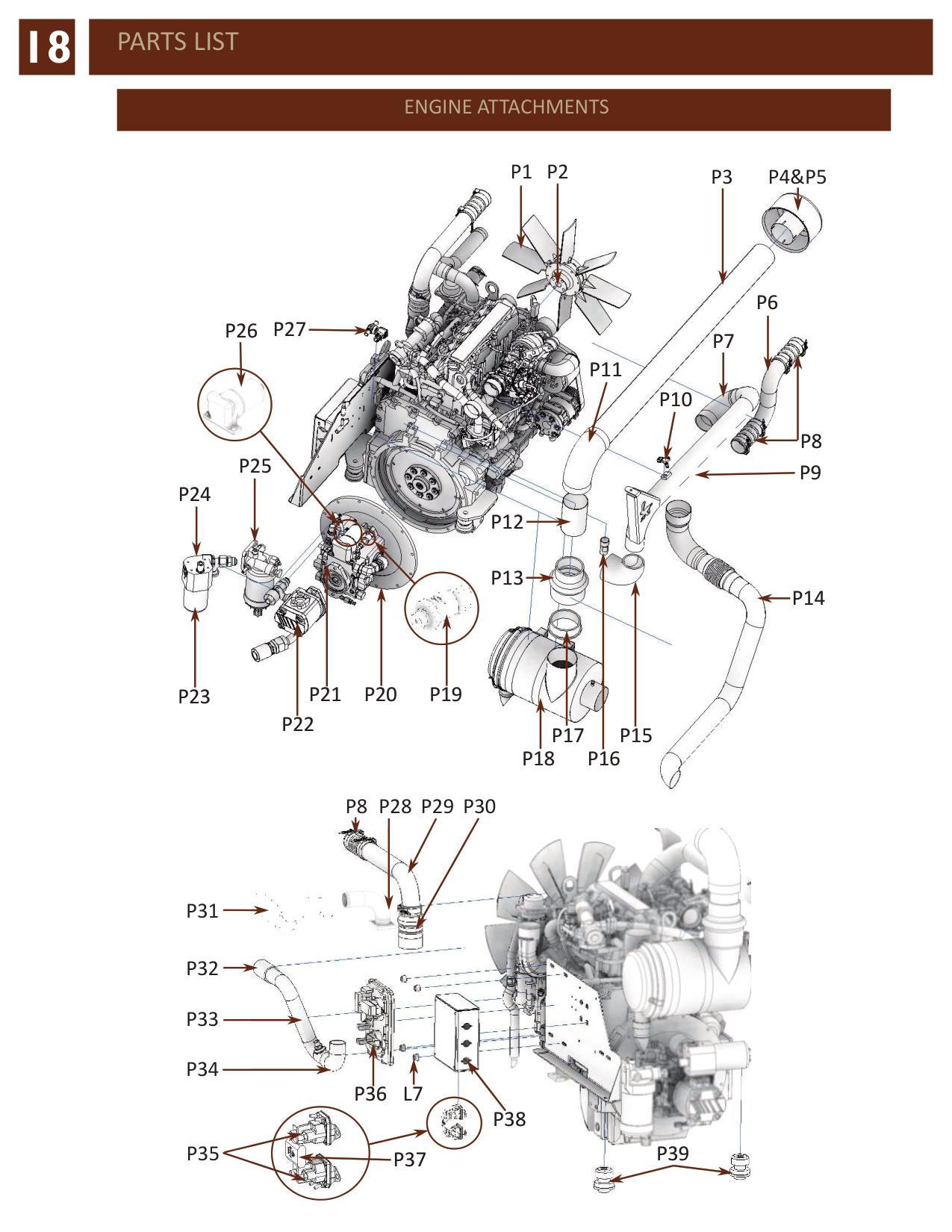

Engine Attachments · Jackrabbit Jackrabbit JR 400-180 (s/n 1367+)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| P1 | 34036 | REVERSING FAN | |
| P2 | 34301 | CLEANFIX FAN ADAPTER 1-3/4" | |
| P3 | 34782 | PRECLEANER PIPE | |
| P4 | 26939 | TURBO II AIR CLEANER (NOT SHOWN) | |
| P5 | 34782 | CENTRI PRECLEANER | |
| P6 | 56756 | CAC INLET PIPE - T4F | |
| P7 | 29576 | 2.75 X 2.75 RUBBER ELBOW | |
| P8 | 34786 | 2-1/2" X 6" CONVOLUTED CAC HOSE | |
| P9 | 34147W | AIR INTAKE WELDMENT | |
| P10 | 34381 | TBAP SENSOR | |
| P11 | 34169 | 4" RUBBER 90 ELBOW | |
| P12 | 34789 | SHORT PRECLEANER PIPE - T4F | |
| P13 | 34783 | REDUCING HUMP 5" - 4" | |
| P14 | 34170 | EXHAUST PIPE WELDMENT | |
| P15 | 90L40R30 | AIR INTAKE ELBOW | |
| P16 | 27176 | AIR FILTER GAUGE | |
| P17 | 50R45 | 4-1/2" - 5" INSERT | |
| P18 | 27239 | AIR FILTER BODY | |
| P19 | 34347 | HEAVY DUTY PRESSURE SENSOR | |
| P20 | 28314B | PUMP MOUNT PLATE | |
| P21 | 31121 | VARIABLE DISPLACEMENT PUMP | |
| P22 | 34125 | GEAR PUMP | |
| P23 | 34118 | PRESSURE FILTER HOUSING | |
| P24 | 34119 | PRESSURE FILTER | |
| P25 | 34311 | FUEL SEPARATOR FILTER | |
| P26 | 27006 | CHARGE FILTER | |
| P27 | 34335 | DEF COOLANT VALVE | |
| P28 | 34040 | THERMOSTAT HOUSING WELDMENT | |
| P29 | 34276 | CAC OUTLET PIPE | |
| P30 | 34784 | 3" - 2-1/2" CONV. REDUCER PUMP HOSE | |
| P31 | 34122 | FLEXIBLE RADIATOR HOSE | |
| P32 | 34376 | 2" ID SILICONE STRAIGHT HOSE 4" LONG | |
| P33 | 34294W | LOWER COOLANT PIPE | |
| P34 | 34378 | 2" ID SILICONE ELBOW 4.5IN OC | |
| P35 | 33417 | MAG SWITCH | |
| P36 | 34305 | ELECTRONIC CONTROL MODULE CONN. | |
| P37 | 33570 | BUSS AMG 250A 32V FUSE | |
| P38 | 34138 | ENGINE POWER J-BOX | |
| P39 | 27261 | ENGINE MOUNT ISOLATOR |
