Def Unit Components · Jackrabbit Jackrabbit JR 400-180 (s/n 1367+)

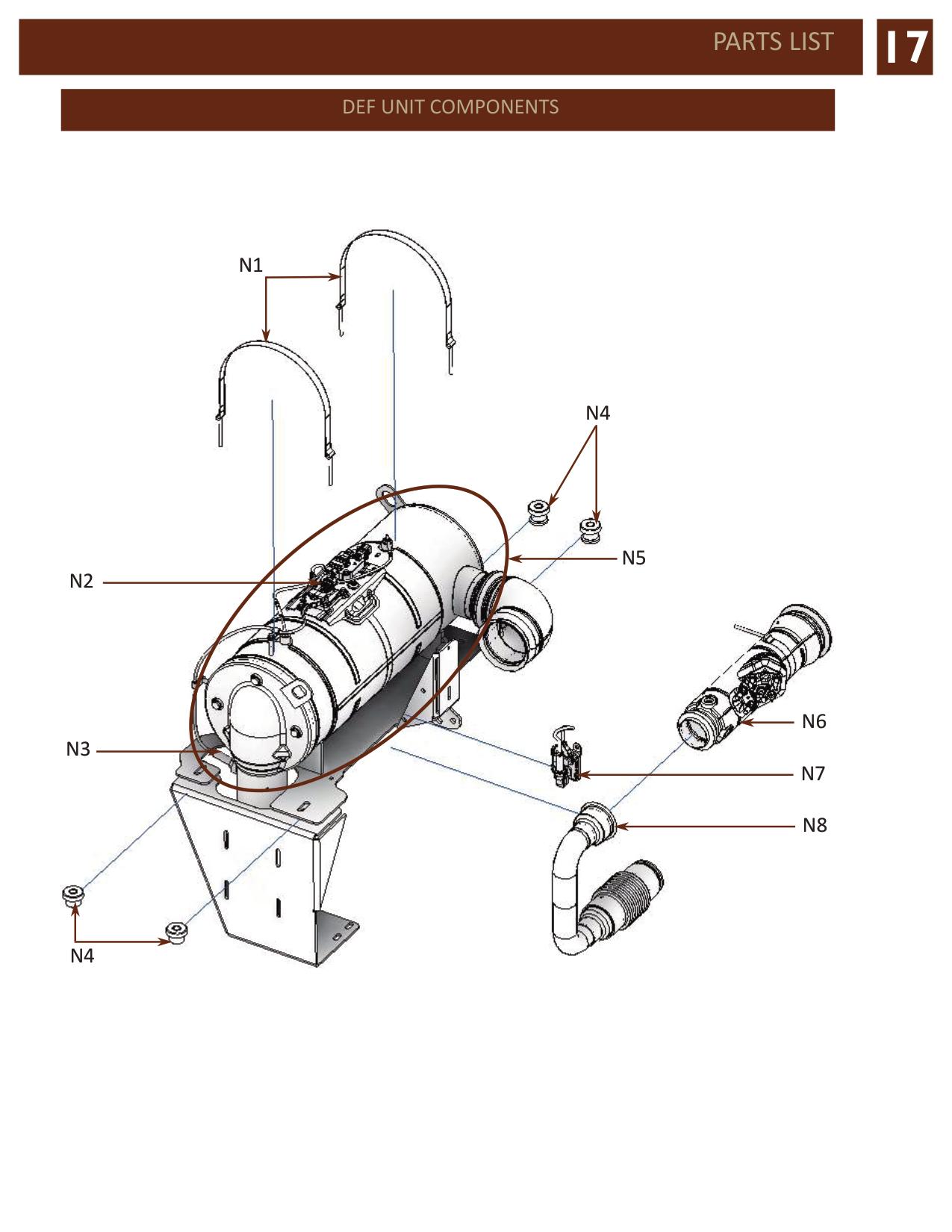

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| N1 | 34153 | 24" DOUBLE T-BOLT STRAP | |
| N2 | 34321 | SENSOR, TEMPERATURE | |
| N3 | 34322 | SENSOR, EXHAUST NITROGEN OXIDE | |
| N4 | 29814 | RUBBER ISOLATOR | |
| N5 | 34325 | SELECTIVE CATALYTIC REDUCTION CATALYST | |
| N6 | 34320 | INJECTOR, DOSER | |
| N7 | 34320A | SENSOR, INLET NITROGEN OXIDE | |
| N8 | 34640 | EXHAUST TO DRT U BEND |
