Front Chassis Assembly / Rear Chassis Assembly · Jackrabbit Jackrabbit JR 400-180 (s/n 1367+)

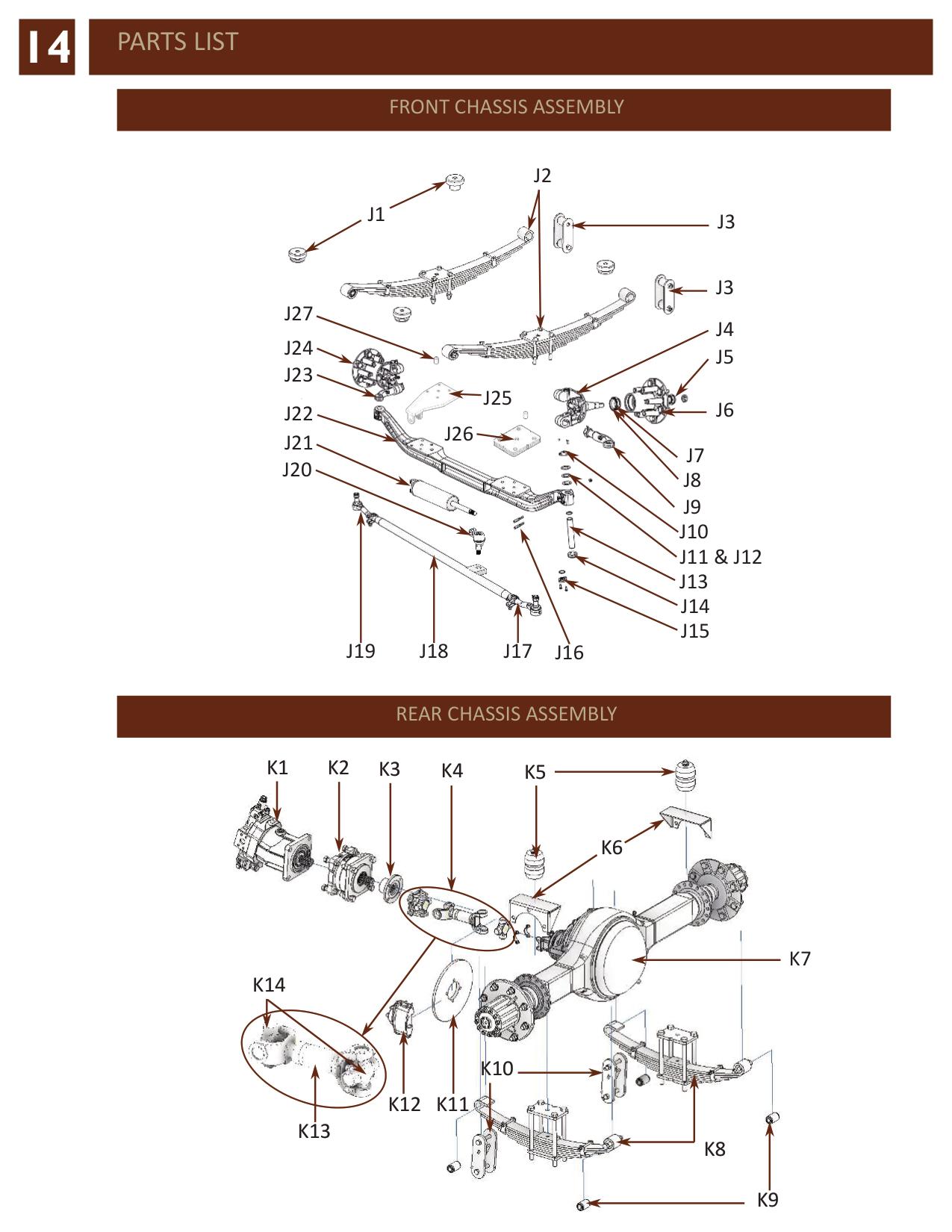

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| J1 | 33882 | FRONT SUSPENSION RUBBER DAMPER | |
| J2 | 29633 | FRONT LEAF SPRING | |
| J3 | 34273 | FRONT SPRING HANGAR | |
| J4 | 56902 | KNUCKLE, RIGHT | |
| J5 | 27842B | BEARING CONE, OUTER | |
| J6 | 56892 | AXLE HUB | |
| J7 | 27842D | BEARING CONE, INNER | |
| J8 | 27842A | HUB SEAL | |
| J9 | 56904 | STEERING ARM, RIGHT | |
| J10 | 56908 | 1/8"-27 GREASE FITTING | |
| J11 | 56912 | KNUCKLE SHIM, TYPE 1 | |
| J12 | 56913 | KNUCKLE SHIM, TYPE 2 | |
| J13 | 56905 | KING PIN | |
| J14 | 56899 | THRUST BEARING | |
| J15 | 56906 | STEERING KNUCKLE CAP | |
| J16 | 56897 | KING PIN STUDS | |
| J17 | 56910 | TIE ROD END, RIGHT | |
| J18 | 56893 | TIE ROD CROSS TUBE | |
| J19 | 56909 | TIE ROD END, LEFT | |
| J20 | 22414 | VERTICAL SOCKET BALL JOINT | |
| J21 | 29751 | STEERING CYLINDER | |
| J21.1 | 27869B | BRAKE SEAL KIT | |
| J22 | 56907 | I BEAM (FINISHED) | |
| J23 | 56903 | STEERING ARM, LEFT | |
| J24 | 56901 | KNUCKLE, LEFT | |
| J25 | 56890 | CYLINDER MOUNT SPACER WELDMENT | |
| J26 | 56882 | AXLE SPACER, RIGHT | |
| J27 | 56889 | AXLE PLATE DOWEL PIN | |
| K1 | 34345 | ELEC. PROP. GROUND DRIVE MOTOR | |
| K1.1 | 26239A | GROUND DRIVE SHAFT SEAL | |
| K2 | 27869 | MICO PARKING BRAKE | |
| K2.1 | 27869A | BRAKE LINING KIT | |
| K2.2 | 27869B | BRAKE SEAL KIT | |
| K2.3 | 27869C | BRAKE SPRING KIT | |
| K2.4 | 27869D | BRAKE BEARING KIT | |
| K2.5 | 28571 | SEAL BREAK SHAFT | |
| K3 | 25820 | DRIVE LINE COMPANION FLANGE | |
| K4 | 26081 | SLIP YOKE | |
| K5 | 34546 | OVERLOAD STOP REST | |
| K6 | 28565 | OVERLOAD BUMP STOP | |
| K7 | 26233 | REAR AXLE ASSEMBLY | |
| K7.1 | 28822 | HUB SEAL | |
| K7.2 | 28826 | HUB GASKET | |
| K7.3 | 28800 | PINION SEAL | |
| K8 | 26449B | REAR LEAF SPRING | |
| K9 | 28272A | 3/4" LEAFSPRING BUSHING | |
| K10 | 33480 | REAR SPRING HANGER | |
| K11 | 34388 | BRAKE ROTOR PLATE | |
| K12 | 34225 | HYDRAULIC FLOATING CALIPER BRAKE | |
| K13 | 29939 | DRIVELINE U-BOLT KIT | |
| K14 | 26081C | REPLACEMENT REPAIR KIT |
