← Jackrabbit JR 400-180 (s/n 1367+)

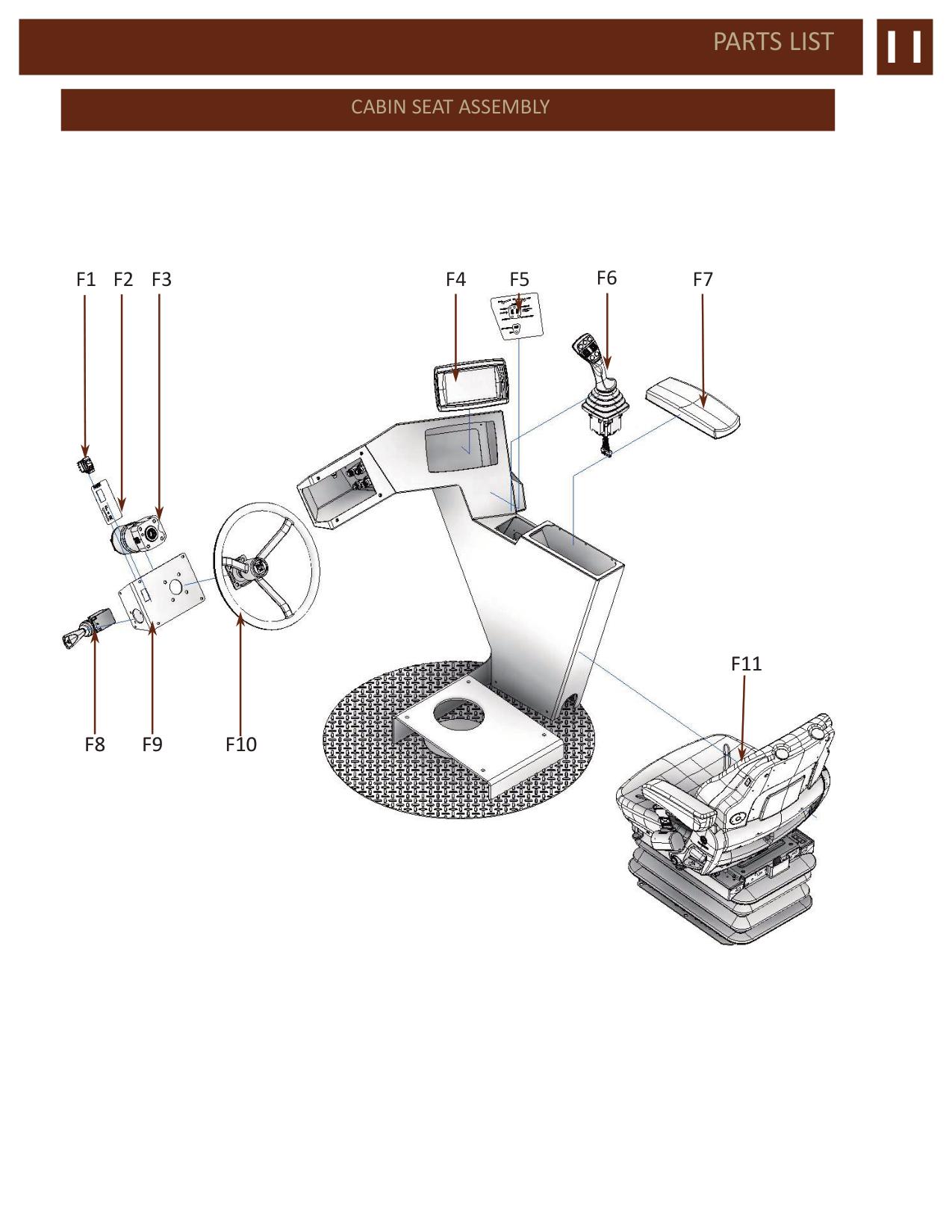

Cabin Seat Assembly · Jackrabbit Jackrabbit JR 400-180 (s/n 1367+)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| F1 | 62559 | T4F PARKING BRAKE SWITCH | |
| F2 | 62514 | CAB FNR LABEL | |
| F3 | 34121 | STEERING MOTOR LOAD SENSE | |
| F3.1 | 22026A | STEERING MOTOR SEAL KIT | |
| F4 | 34360 | T4F 6" RUNNER DISPLAY | |
| F5 | 62513 | CAB JOYSTICK INSTRUCTION LABEL | |
| F6 | 34445 | T4F JOYSTICK | |
| F7 | 62540C | OPERATOR ARMREST | |
| F8 | 34448 | FNRP SHIFTER | |
| F9 | 62555 | SEAT CONSOLE STEERING MOUNT PLATE | |
| F10 | 27837 | STEERING WHEEL | |
| F11 | 28823 | AIR SUSPENSION SEAT |
