Cabin Air Filter Unit / Cabin Control Panel · Jackrabbit Jackrabbit JR 400-180 (s/n 1367+)

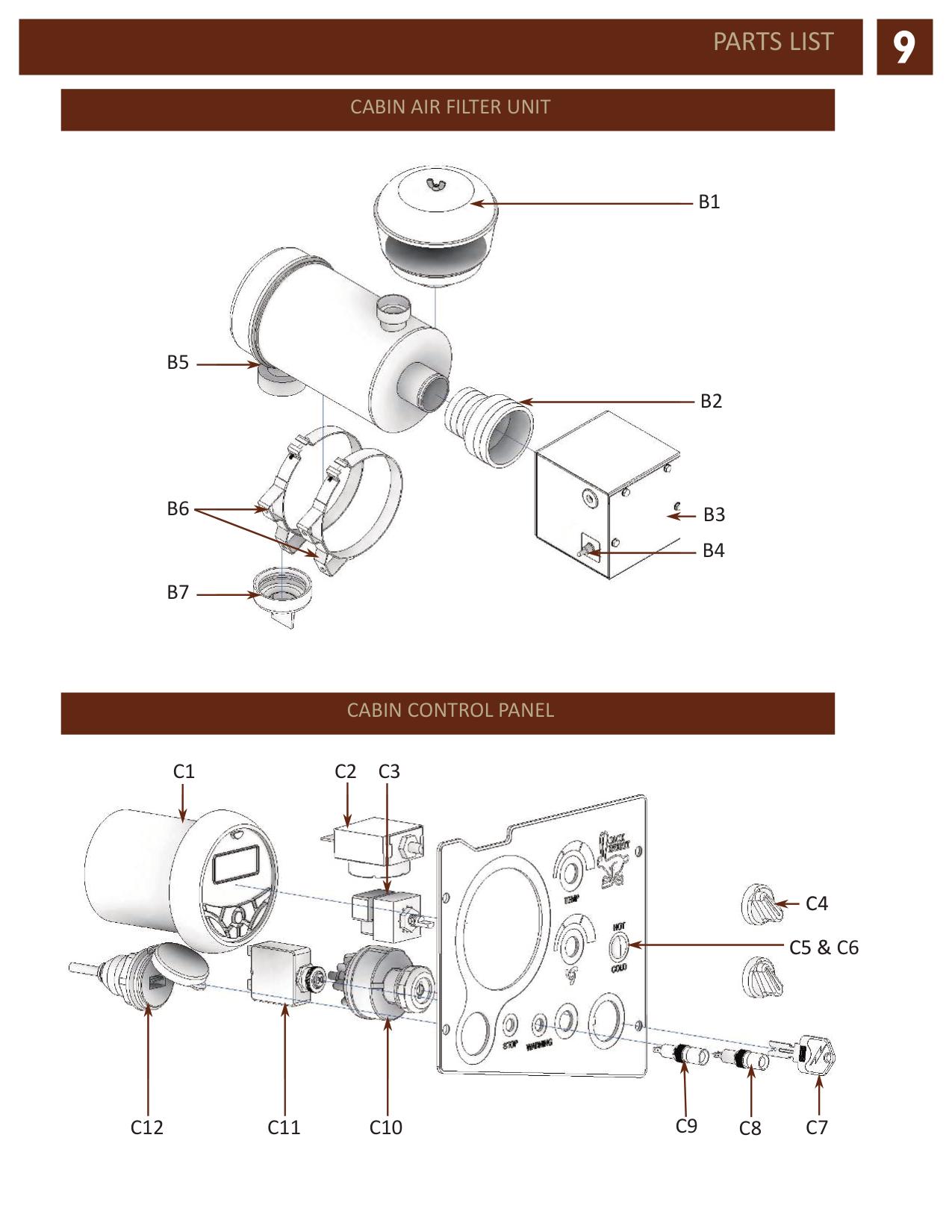

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| B1 | 27004 | CAB AIR CLEANER ASSEMBLY | |
| B2 | 62507 | CAB FAN BLOWER ASSEMBLY | |
| B3 | 62621 | 2"-3" PIPE ADAPTER | |
| B4 | 62743 | TOGGLE SWITCH | |
| B5 | 27507 | CAB PRE-CLEANER | |
| B6 | 27544 | FILTER MOUNTING BAND | |
| B7 | 27004C | VACUATOR VALVE | |
| C1 | 34444 | BOSS RADIO | |
| C2 | 62746 | ROTARY THERMOSTAT | |
| C3 | 62745 | ROTARY 3-SPEED SWITCH | |
| C4 | 62744 | DTAC SWITCH KNOB | |
| C5 | 60295 | 1/2 PLASTIC PLUG | |
| C6 | 27527 | HOT/COLD TOGGLE SWITCH (NOT SHOWN OPTION) | |
| C7 | 22416A | KEY | |
| C8 | 34298 | 8 mm YELLOW PILOT LIGHT | |
| C9 | 34299 | 8 mm RED PILOT LIGHT | |
| C10 | 22416 | KEY SWITCH | |
| C11 | 27165 | 30 AMP AC CIRCUIT BREAKER | |
| C12 | 62705 | FLUSH MOUNT USB |
