← Jackrabbit 30-36 Elevator (CAT 3.4L)
29Gpm · Jackrabbit Jackrabbit 30-36 Elevator (CAT 3.4L)

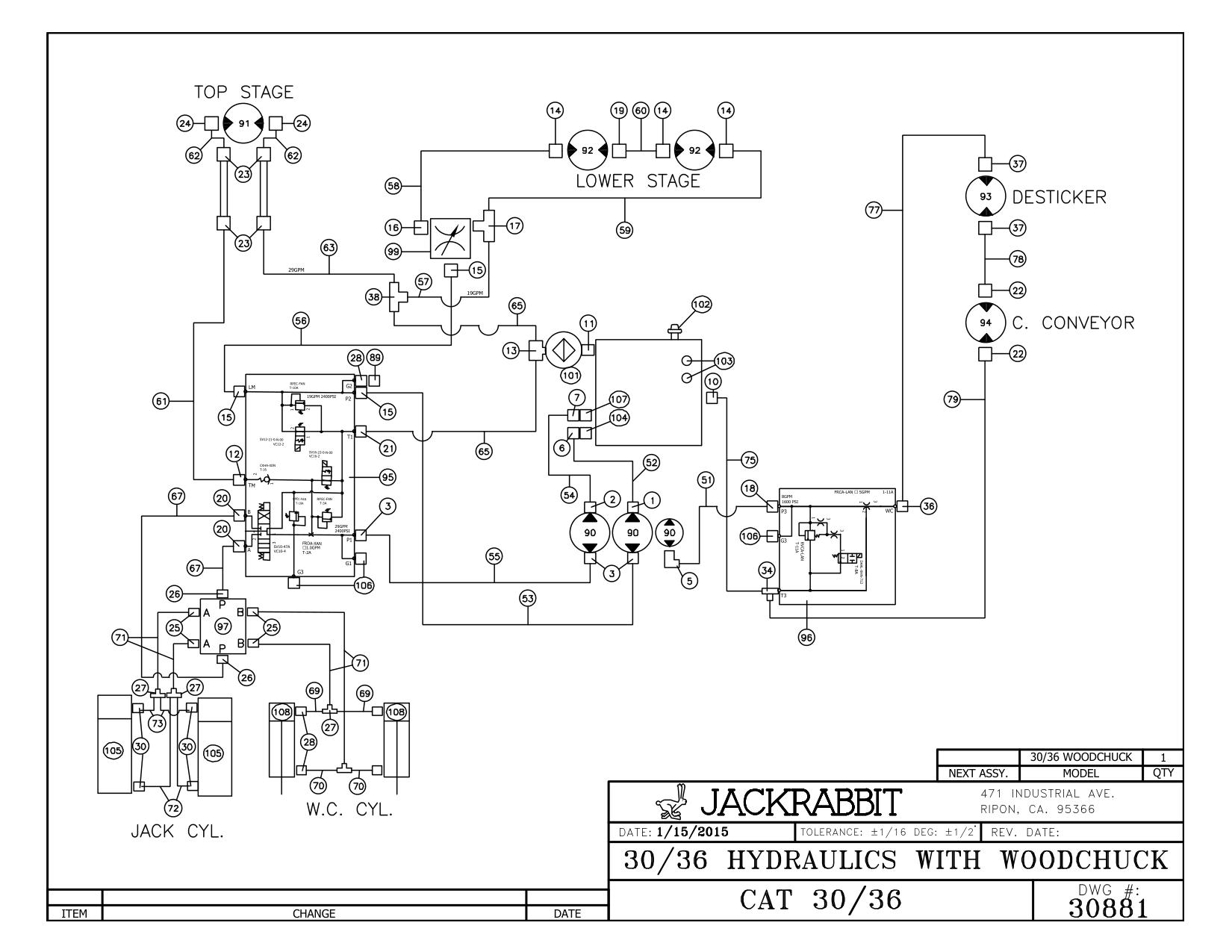

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| E-1 | 30880 | Pivot Tube | 1 |
| E-2 | 32500 | Main Control Box | 1 |
| E-3 | 24574 | Control Pannel Hood | 1 |
| E-4 | 22416 | Key Switch | 1 |
| E-5 | 27527 | ON-OFF SWITCH | 3 |
| E-6 | 30862 | MVP-312 Display | 1 |
| E-8 | 27867 | Momentairy Switch | 1 |
| E-9 | 27787 | 5 AMP Circit Breaker (NOT SHOWN) | 1 |
| E-10 | 26399 | 30 AMP Circit Breaker (NOT SHOWN) | 1 |
| E-11 | Relay (NOT SHOWN) | 1 | |
| E-12 | 28246 | Remote Control Transmitter - Option - (NOT SHOWN) | 1 |
| E-13 | 28247 | Remote Control Receiver - Option - (NOT SHOWN) | 1 |
| E-6 | E-4 | ||
| E-5 | E-2 E-3 E-1 |
