← Jackrabbit 30-36 Elevator (Deutz)
Hydraulics: · Jackrabbit Jackrabbit 30-36 Elevator (Deutz)

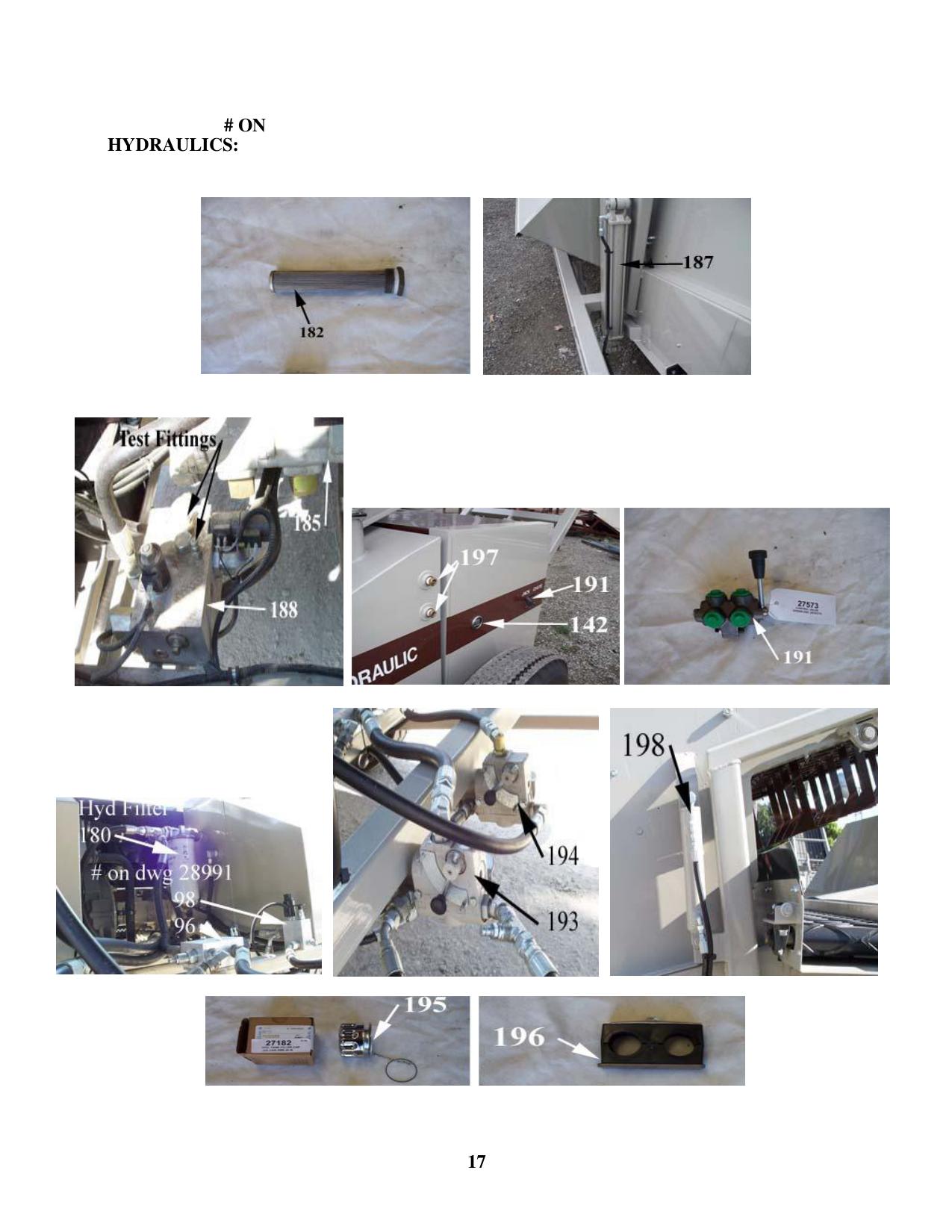

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 5 | 22097 | Bearing (1-1/2” Pillow Block) | 2 |
| 8 | 23524 | Flangette Bearing (#52 MST 22PPRAG) | 2 |
| 9 | 28892 | 36” x 64’ – 6” Giant Z Belt (Incline) Standard Model | 1 |
| 10 | 27306 | Bearings For Return Rollers | 16 |
| 15 | 22977 | Bearing (1” Pillow Block) | 6 |
| 15B | 31067 | Bearing (#RFC #1-1/2”) | 2 |
| 30 | 26464 | Bearings Pad | 8 |
| 33 | 28891 | 30” x 309” Giant Z Bin Belt | 1 |
| 33C | 28934 | Transition Seal, UHMW | 2 |
| 349 | 28834 | Axel Assembly | |
| 350 | 27020 | Tires 12-16.5 TL R-3 | 2 |
| 400 | 22977 | VAK 1” Pillow Block Bearing | 10 |
| 401 | 26201 | 6T 550 Eccentric Sprocket W/Bearing 5/8” Bore | 4 |
| 404 | 22983 | 8T 550 Idler –5/8” Bore G&G | 4 |
| 405 | 26202 | 11T 550 1” ID Sprocket | 4 |
| 410 | 27380 | (12” x 196”) Giant Z Incline Belt, Almonds & Walnuts | 1 |
| 411 | 27378 | (12” x 115” Giant Z Incline Belt, Almonds & Walnuts | 1 |
| 413 | (30”x ) Giant Z DS30 Cross Conv. Pecan | 1 | |
| 415 | 27523A | 30” Lacing Pin | 1 |
| 420 | 28530 | Desticker Chain Weldment | 1 |
| 421 | 28531 | Desticker Master Link Bar W/5 Flags | 1 |
| 422 | 28532 | Desticker Master Link Bar W/ 4 Flags | 1 |
| 423 | 28529 | Desticker Master Link Bar W/Fingers | 1 |
| 424 | 26046 | Flags (Only) | 1 |
| 425 | 27141 | CA 557 Master Link No Attachment | 1 |
| 427 | 27142 | CA 557 Master Link W/A4 Attachment | 1 |
| 430 | 24664 | DS Drive Motor (RS #180201) | 1 |
| 431 | 27017 | Conveyor Drive Motor (RS #100201) | 2 |
| 432 | 26050 | Manifold Duel Flow | 1 |
| 433 | 27313 | Solenoid Valve Waterman 15C7TS | 1 |
| 434 | 27317 | Relief Valve FRDA XAN | 1 |
| 435 | 27318 | Coil 70402S-12 | 1 |
| 436 | 28937 | Cylinder (1 ½” x 6”), lifts & lowers WoodChuck | 2 |
| 450 | 26692 | Rubber Stick Bumper | 1 |
| 451 | 27583 | WARNING (Decal) | 2 |
| 452 | 26231 | Shield for Sprockets, UHMW | 2 |
| 453 | 26232 | Outer Shield for Sprockets, Metal | 4 |
| 460 | 26158 | Drive Pulley (Conveyor) 2.08” X 12” | 2 |
| 461 | 26157 | Idler Pulley (Conveyor) 2.08” X 12” | 2 |
| 464 | 27536 | Drive Pulley (Conveyor) SRC 2.08”X 30” Pecan | 1 |
| 465 | 27538 | Idler Pulley (Conveyor) 2.08 X 30” Pecan | 1 |
| 466 | 28896 | 1” Drive Shaft X 40 ¾” | 1 |
| 467 | 28897 | 1” Idler Shaft X 36 ¼” | 1 |
| 468 | 26493 | Climax Coupler 1” (CC-100-100) | 3 |
| 469 | 24395D | Torque Arm, WoodChuck | 1 |
| 470 | 26622 | Side Seal 6” x 24” | 2 |
| 471 | 27373 | Slide Kit ( #472-475) | 1 |
| 472 | 22190 | ¼” x ¾” Elevator Bolts, Nuts & Washers | 28 |
| 473 | 26129 | Upper Chain Slide | 4 |
| 474 | 25386 | Short Upper Slide | 4 |
| 475 | 24491 | Exhaust Slide (Incline) | 2 |
| 480 | 28552A | Cross Conveyor Seal, 4” X 96” | 1 |
