← Jackrabbit 30-36 Elevator (Deutz)

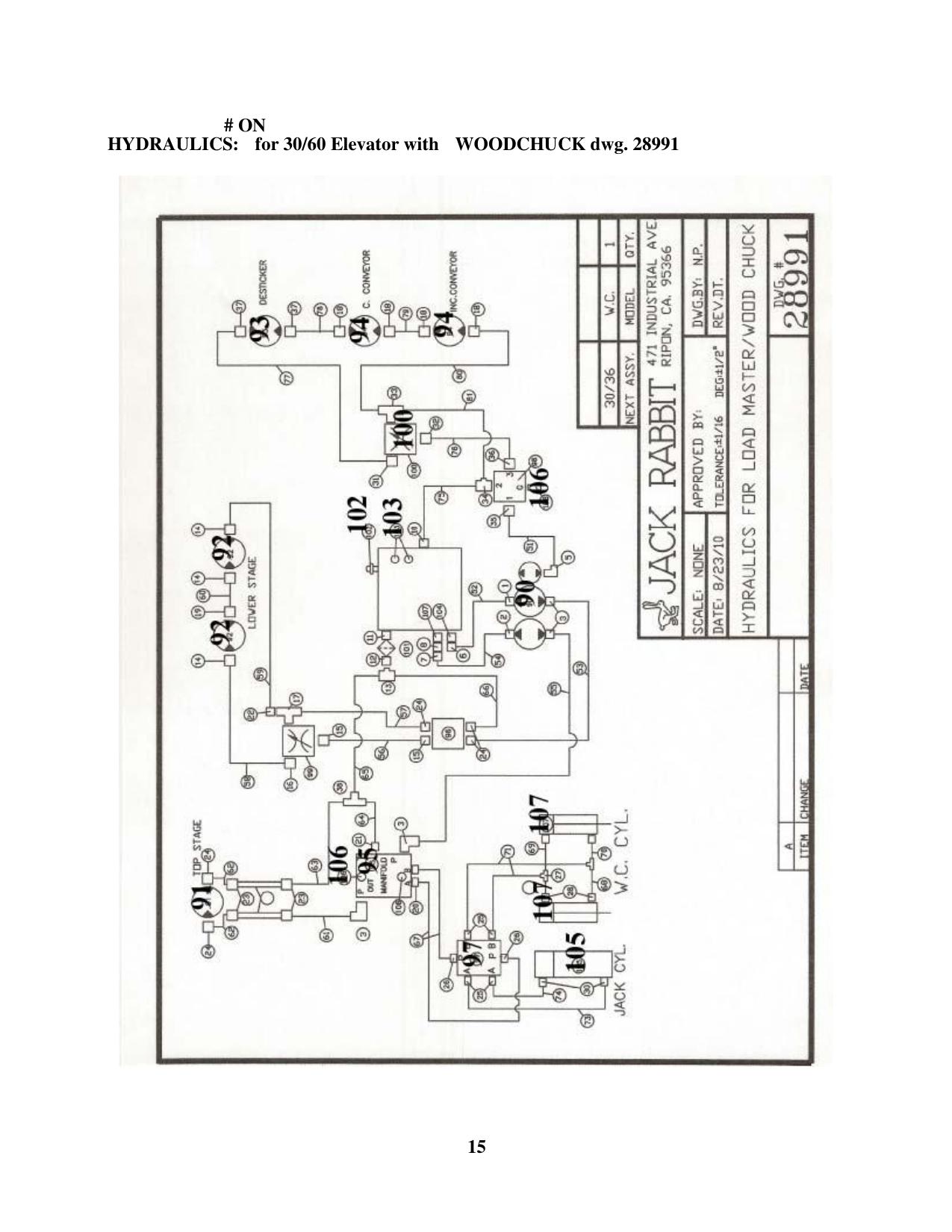

Figure 11 · Jackrabbit Jackrabbit 30-36 Elevator (Deutz)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 91 26034 Incline Conveyor Motor | 1 | |
| 35 | 92 24664 Bin Conveyor Motors | 2 | |
| 96 | C-33996 HZ Belt Body | 1 | |
| 96 | C-33996 HZ Belt Body | ||
| 98 | Sun XRCX-LAN-HJ-712 Vented relief | 1 | |
| 98 | Sun XRCX-LAN-HJ-712 Vent relief | ||
| 99 | FC51-12 SAE (HZ Belt) | ||
| 100 | FC51-10 SAE | ||
| 106 | Test Fitting | 1 | |
| 180 | 101 27811 Hydraulic Filter LHA SPE 60-10 | 1 | |
| 182 | 104 24671 Suction Strainer | 1 | |
| 185 | 90 28989 Pump (Triple Pump) | 1 | |
| 186 | 24641 | Lower pin for 26612 | 1 |
| 187 | 105 26612 Cylinder (2” x 24”) Jack | 1 | |
| 188 | 95 26050 Manifold 8051-1 | 1 | |
| 188 | 95 26050 Manifold Components: | ||
| 191 | 97 27573 Selector Valve (DH5/6B-SAE | 1 | |
| 193 | 99 24403 Flow Control (FC 51-12SAE) | 2 | |
| 194 | 100 28999 Flow Control (FC 51-10 SAE) | 1 | |
| 195 | 102 27182 Hydraulic Tank Filler Cap & Breather | 1 | |
| 196 | 26199 | Clamp (1” Hycon double) | 4 |
| 197 | 103 24669 Sight Gauge | 2 | |
| 198 | 107 28937 Cylinder 1 ½”x 6” (lifts & lowers WoodChuck) | 2 |
