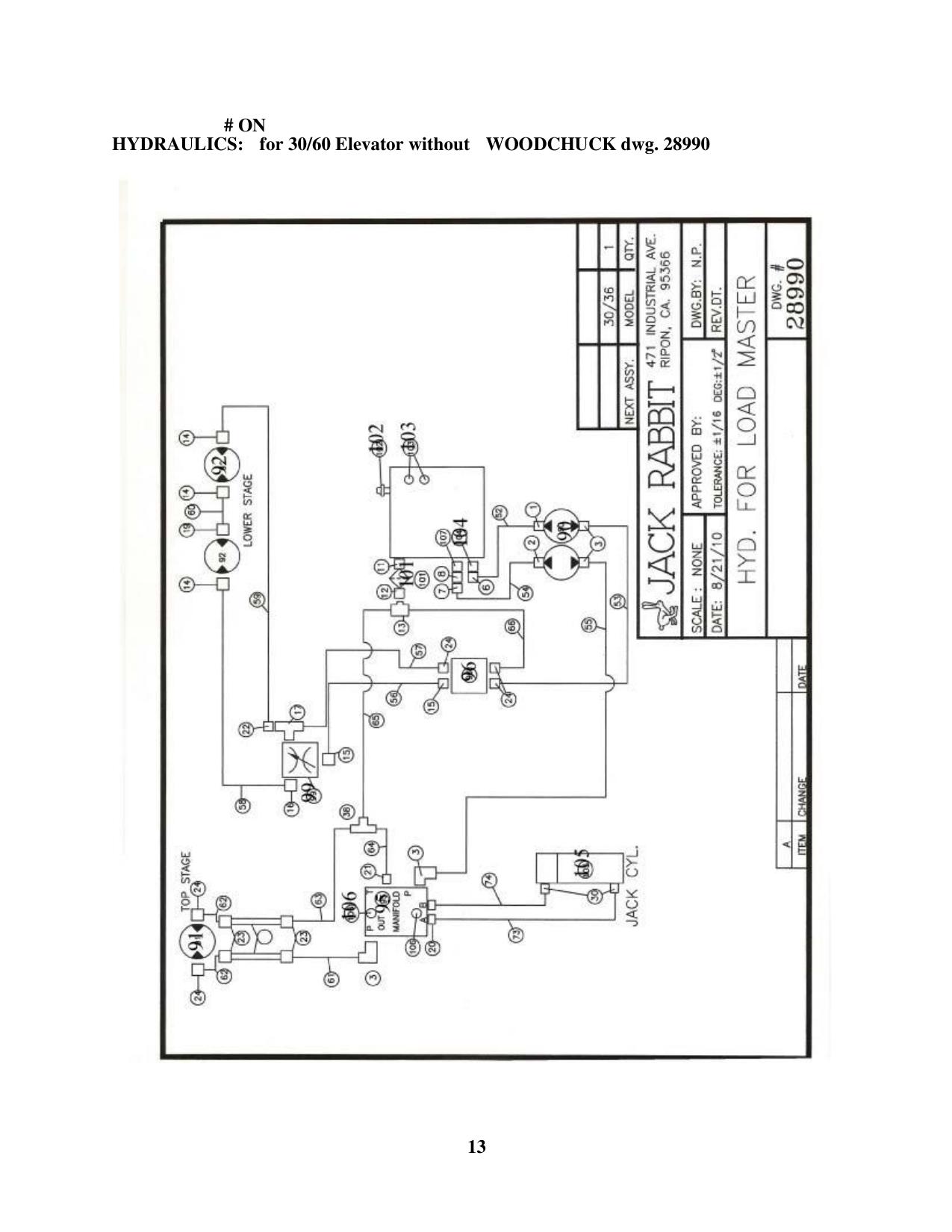

Figure 10 · Jackrabbit Jackrabbit 30-36 Elevator (Deutz)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 91 26034 Incline Conveyor Motor | 1 | |
| 92 | 35 24664 Bin Conveyor Motors | 2 | |
| 96 | C-33996 HZ Belt Body | 1 | |
| 106 | Test Fitting | 1 | |
| 180 | 101 27811 Hydraulic Filter LHA SPE 60-10 | 1 | |
| 182 | 104 24671 Suction Strainer | 1 | |
| 185 | 90 28994 Pump (Double Pump) P330l--- | 1 | |
| 186 | 24641 | Lower pin for 26612 | 1 |
| 187 | 105 26612 Cylinder (2” x 24”) for jack | 1 | |
| 188 | 95 26050 Manifold 8051-1 | 1 | |
| 188 | 26050 | Manifold Components: | |
| 193 | 99 24403 Flow Control (FC 51-3/4) | 1 | |
| 195 | 102 27182 Hydraulic Tank Filler Cap & Breather | 1 | |
| 196 | 26199 | Clamp (1” Hycon double) | 8 |
| 197 | 103 24669 Sight Gauge | 2 |
