← Jackrabbit 30-36 Elevator (Deutz)

Figure 3 · Jackrabbit Jackrabbit 30-36 Elevator (Deutz)

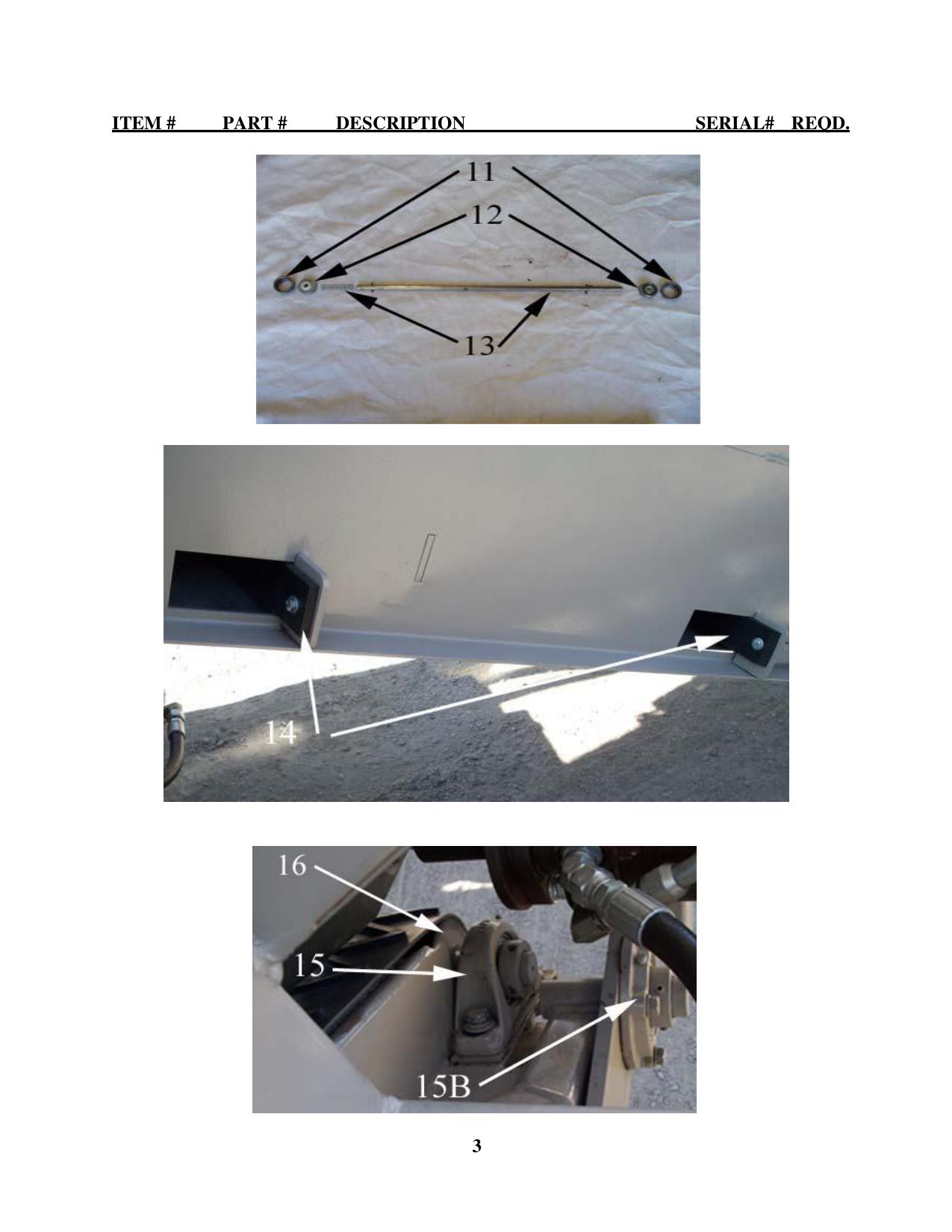

Tap a circled number on the diagram to identify the part.

diagram
✕
#Part numberDescriptionQty
15 22977 Bearing (1” Pillow Block) 4
30 26464 Bearings Pad 2
33 28891 (30” x 309”) Giant Z Bin Belt 1
33A 26887 Belt Wiper UHMW 37” 1
33B 28883 Front Seal (for pop out) 1
33C 28934 Transition Seal UHMW 2
34 24664 Lower Hyd. Motor (RS180201) 2
35 26493 Motor Coupler (Climax Coupler CC100-100) 2
36 28935 Lower Torque Arm 2
37 28832A 30”Drive Pulley W/Lag 2
60 26018 Idler Roller 30 3/8” (return roller) 2
61 27307 Bearing Housing (end cap) 4
62 27306 Bearing (for return rollers) 4
63 28216 Hex Shaft for return rollers 32 3/8” 2
