← Jackrabbit 30-36 Elevator (Deutz)

Jackrabbit · Jackrabbit Jackrabbit 30-36 Elevator (Deutz)

Tap a circled number on the diagram to identify the part.

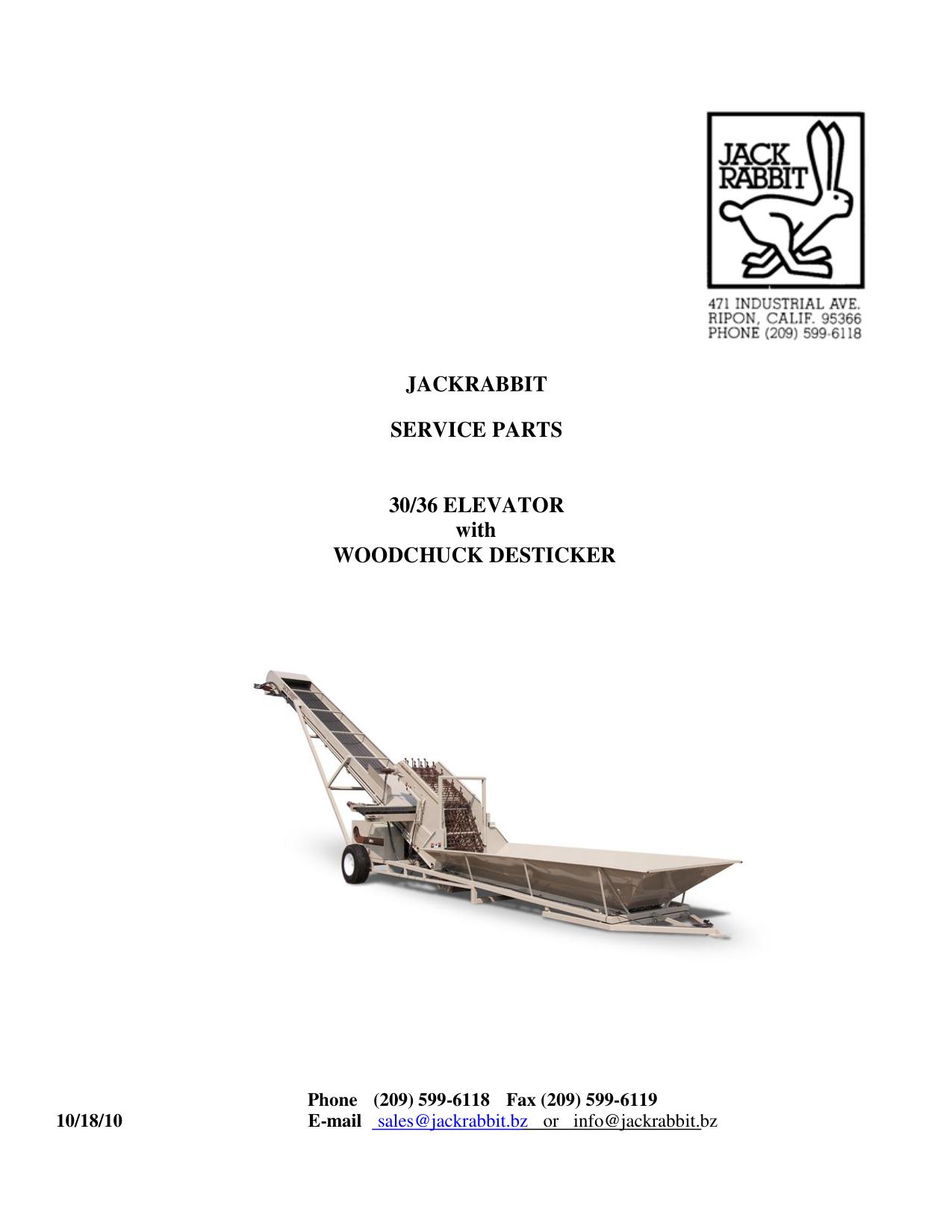

diagram
✕
#Part numberDescriptionQty
1 26034 Incline Conveyor Motor (OMT500) 1
2 25996 Upper Torque Arm 1
3 27352 Clamping Collar 1
4 26812 Coupler Solid 1-1/2” ID 1
5 22097 Bearing (1-1/2” Pillow Block) 2
6 28441 Upper Drive Pulley 36” W/LG. & Shaft 1
7 28440 Snub Roller 36” Length 1
8 23524 Flangette Bearing (52 MST 22PPRAG) for snub roller 2
9 28892 36” x 64’ 6” Giant Z Incline Belt (Standard Model) 1
10 28506 Idler Roller 36 – 3/8” Length, Return Roller 6
11 27307 Bearing Housing For Return Rollers (End Cap) 12
12 27306 Bearings for Return Rollers 12
13 Shaft & #21 Spring for 36 3/8”Return Roller 6
14 28936 Belt Wipers (UHMW) 36” Incline Belt 2
15 22977 Bearing (1” Pillow Block) 2
15B 31067 Bearing for Incline Conveyor (RFC350 1 ½”) 2
16 28418B Idler Pulley, Incline belt( 36 “ W/Lag) 1
