← Jackrabbit 30-36 Elevator (CAT 2.8L)
Woodchuck Cross Conveyor · Jackrabbit Jackrabbit 30-36 Elevator (CAT 2.8L)

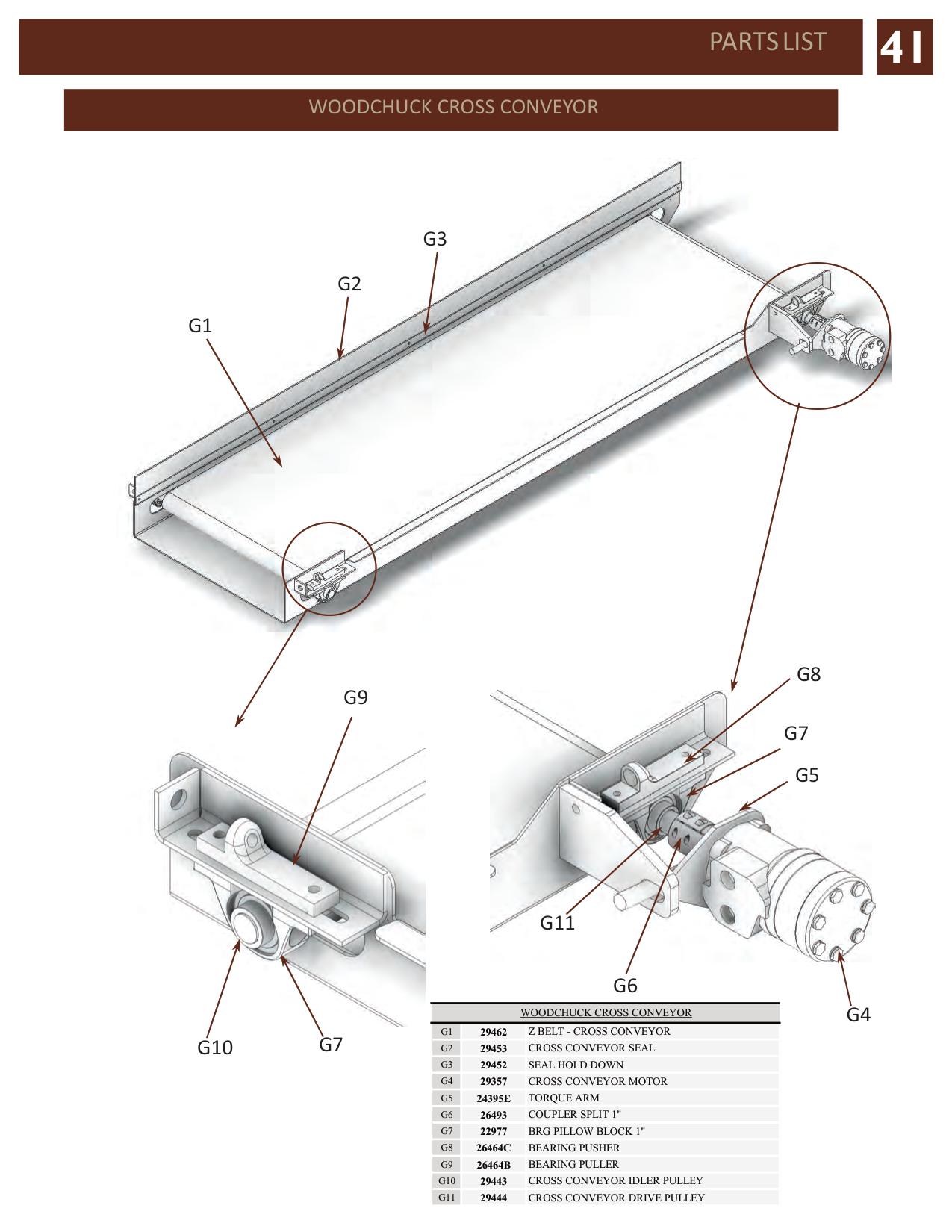

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| G1 | 29462 | Z Belt - Cross Conveyor | |
| G2 | 29453 | Cross Conveyor Seal | |
| G3 | 29452 | Seal Hold Down | |
| G4 | 29357 | Cross Conveyor Motor | |
| G5 | 24395E | Torque Arm | |
| G6 | 26493 | Coupler Split 1" | |
| G7 | 22977 | Brg Pillow Block 1" | |
| G8 | 26464C | Bearing Pusher | |
| G9 | 26464B | Bearing Puller | |
| G10 | 29443 | Cross Conveyor Idler Pulley | |
| G11 | 29444 | Cross Conveyor Drive Pulley |
