← Jackrabbit 30-36 Elevator (CAT 2.8L)
Woodchuck · Jackrabbit Jackrabbit 30-36 Elevator (CAT 2.8L)

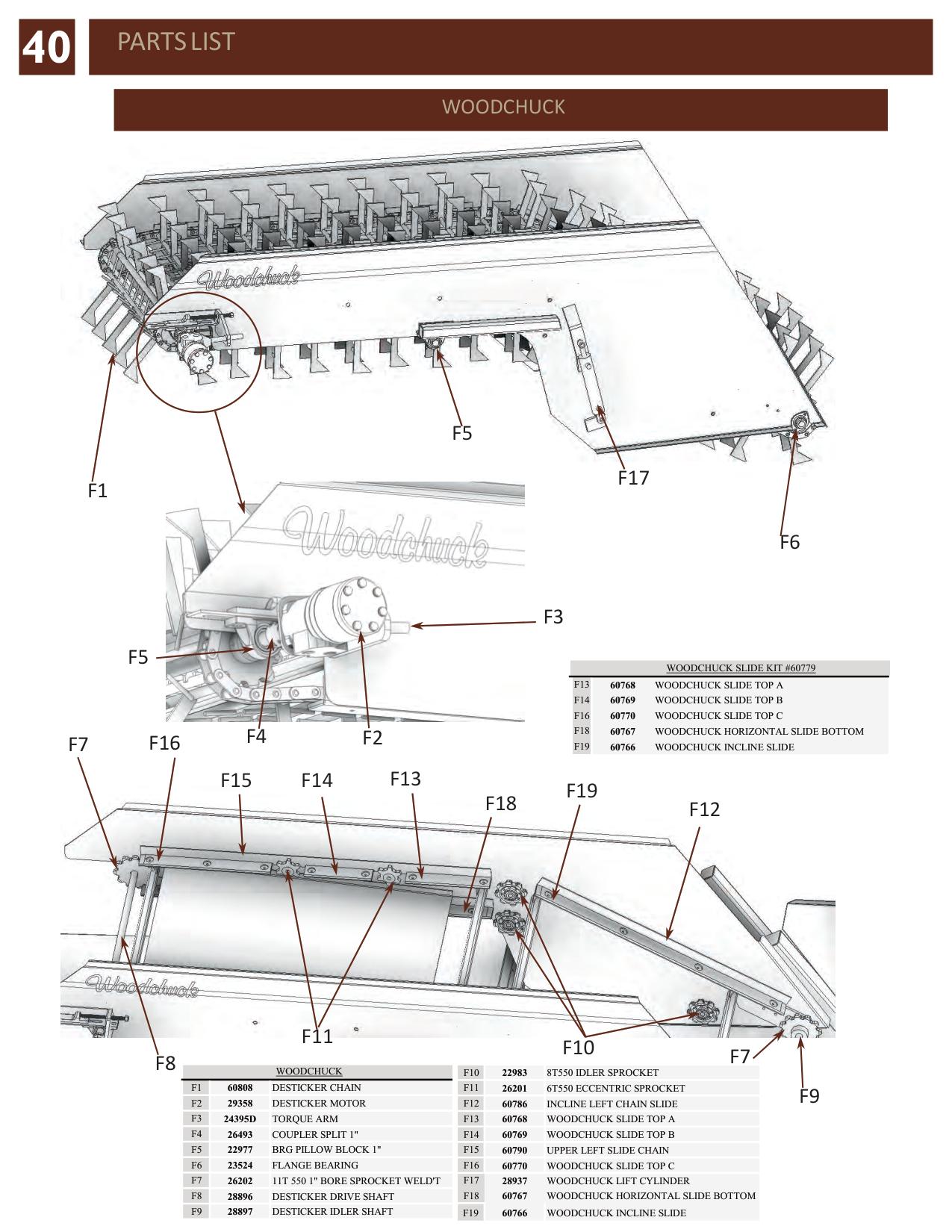

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| F1 | 60808 | Desticker Chain | |
| F2 | 29358 | Desticker Motor | |
| F3 | 24395D | Torque Arm | |
| F4 | 26493 | Coupler Split 1" | |
| F5 | 22977 | Brg Pillow Block 1" | |
| F6 | 23524 | Flange Bearing | |
| F7 | 26202 | 11T 550 1" Bore Sprocket Weld'T | |
| F8 | 28896 | Desticker Drive Shaft | |
| F9 | 28897 | Desticker Idler Shaft | |
| F10 | 22983 | 8T550 Idler Sprocket | |
| F11 | 26201 | 6T550 Eccentric Sprocket | |
| F12 | 60786 | Incline Left Chain Slide | |
| F13 | 60768 | Woodchuck Slide Top A | |
| F14 | 60769 | Woodchuck Slide Top B | |
| F15 | 60790 | Upper Left Slide Chain | |
| F16 | 60770 | Woodchuck Slide Top C | |
| F17 | 28937 | Woodchuck Lift Cylinder | |
| F18 | 60767 | Woodchuck Horizontal Slide Bottom | |
| F19 | 60766 | Woodchuck Incline Slide |
