← Jackrabbit 30-36 Elevator (CAT 2.8L)
Cat C2.8 Engine Replacement · Jackrabbit Jackrabbit 30-36 Elevator (CAT 2.8L)

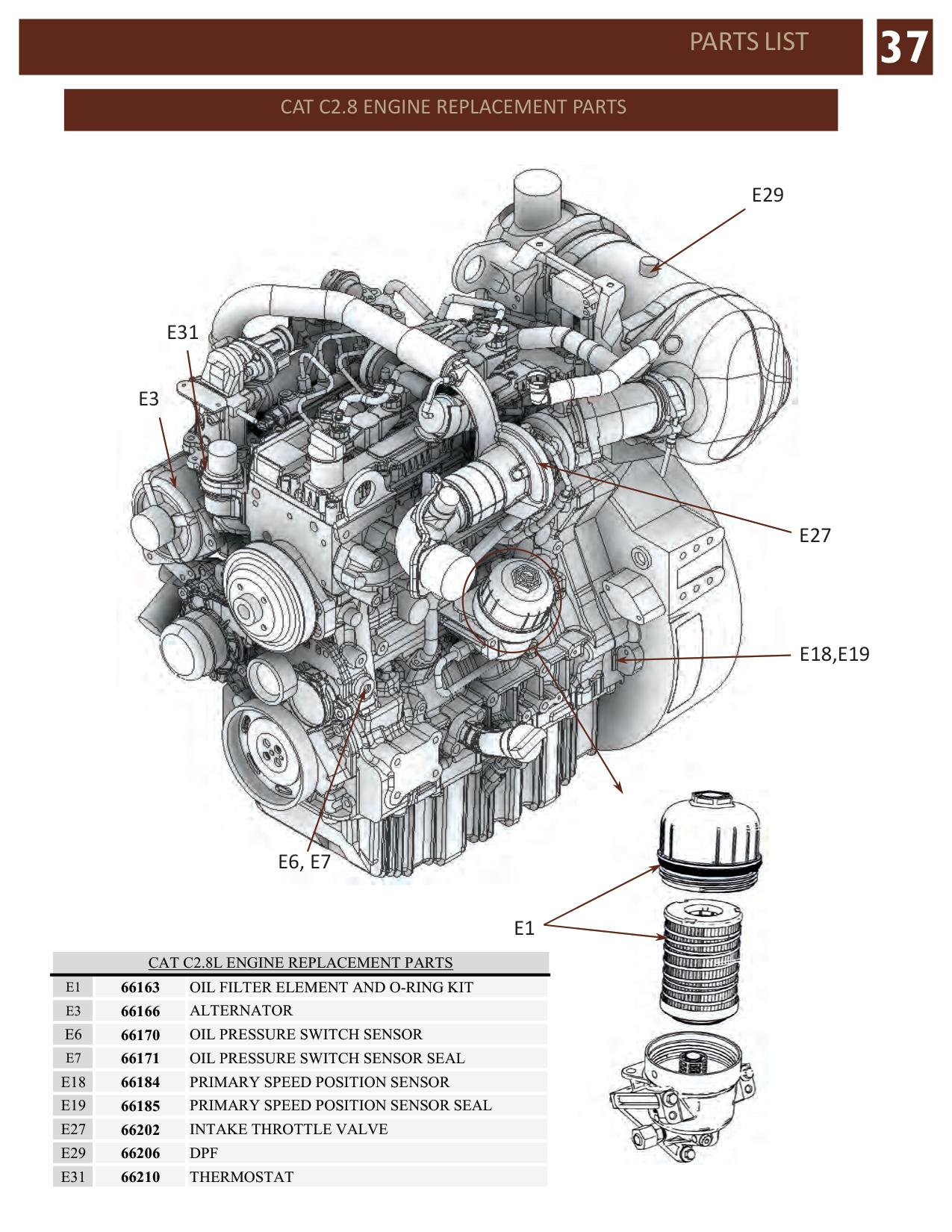

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| E1 | 66163 | Oil Filter Element And O-Ring Kit | |
| E2 | 66165 | Starter | |
| E3 | 66166 | Alternator | |
| E4 | 66167 | Water Pump | |
| E5 | 66168 | Water Pump Gasket | |
| E6 | 66170 | Oil Pressure Switch Sensor | |
| E7 | 66171 | Oil Pressure Switch Sensor Seal | |
| E8 | 66172 | Coolant Temp Sensor | |
| E9 | 66175 | Nrs (Egr) Inlet Temp Sensor | |
| E10 | 66176 | Nrs (Egr) Outlet Temp Sensor | |
| E11 | 66177 | Nrs (Egr) Diff Pressure Sensor | |
| E12 | 66178 | Intake Manifold Pressure Sensor | |
| E13 | 66179 | Intake Manifold Pressure Sensor Seal | |
| E14 | 66180 | Intake Manifold Temp Sensor | |
| E15 | 66181 | Intake Manifold Temp Sensor Seal | |
| E16 | 66182 | Fuel Temp Sensor | |
| E17 | 66183 | Fuel Rail Pressure Sensor | |
| E18 | 66184 | Primary Speed Position Sensor | |
| E19 | 66185 | Primary Speed Position Sensor Seal | |
| E20 | 66186 | Secondary Speed Position Sensor | |
| E21 | 66187 | Secondary Speed Position Sensor Seal | |
| E22 | 66188 | Exhaust Temp Sensor (Dpf) | |
| E23 | 66189 | Exhaust Pressure Sensor (Dpf) | |
| E24 | 66190 | Fuel Injector | |
| E25 | 66191 | High Pressure Fuel Pump | |
| E26 | 66192 | High Pressure Control Valve | |
| E27 | 66202 | Intake Throttle Valve | |
| E28 | 66205 | Turbo | |
| E29 | 66206 | Dpf | |
| E30 | 66207 | Egr Valve | |
| E31 | 66210 | Thermostat | |
| E32 | 66213 | Fan Belt | |
| E33 | 66214 | Filll Cap | |
| E34 | 66770 | Reversing Fan Kit | |
| E35 | 66216 | Radiator | |
| E36 | 66217 | Degas Tank | |
| E37 | 66218 | Radiator Top Hose | |
| E38 | 66219 | Radiator Bottom Hose |
