← Jackrabbit 30-36 Elevator (CAT 2.8L)

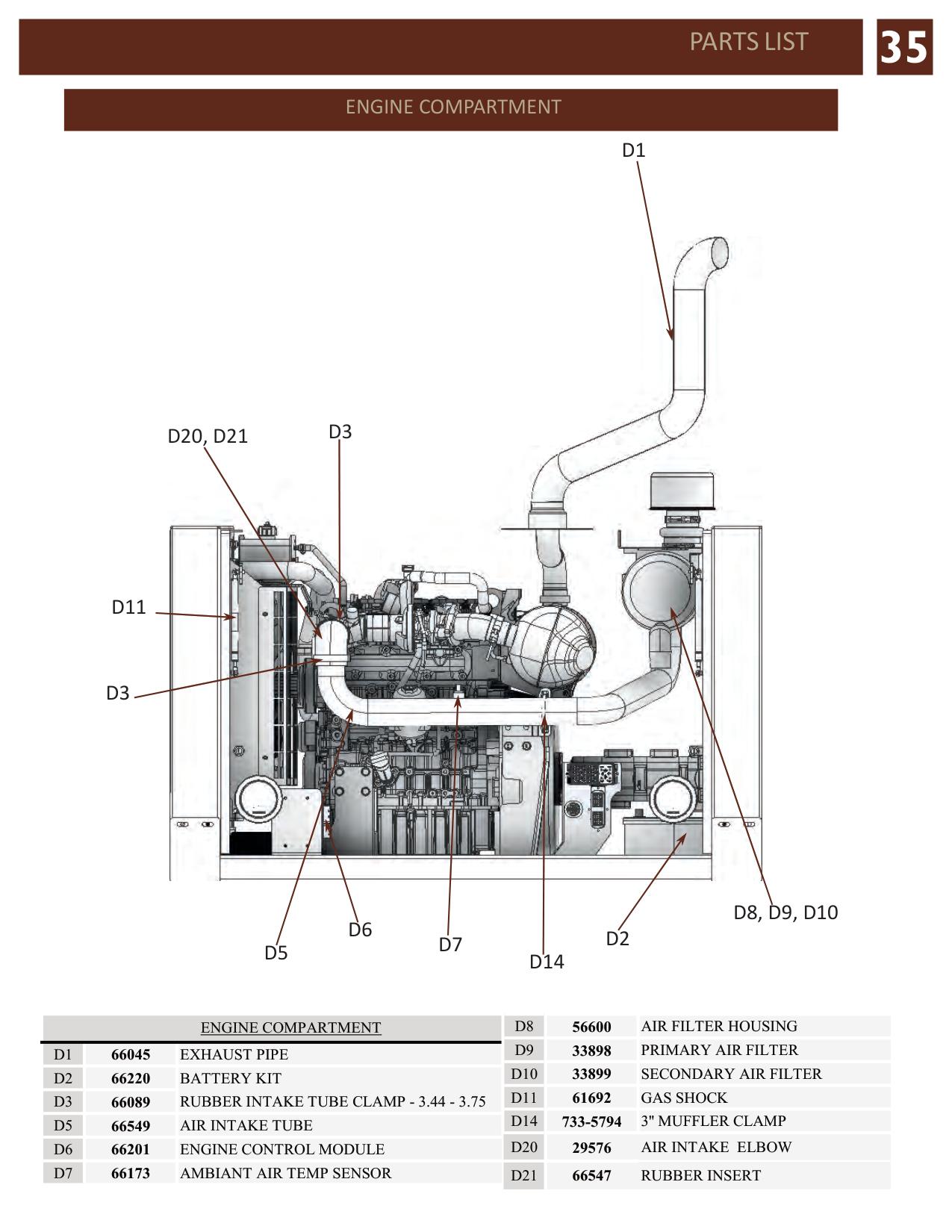

Engine Compartment · Jackrabbit Jackrabbit 30-36 Elevator (CAT 2.8L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| D1 | 66045 | Exhaust Pipe | |
| D2 | 66220 | Battery Kit | |
| D3 | 66089 | Rubber Intake Tube Clamp - 3.44 - 3.75 | |
| D4 | 60162 | Rubber Intake Tube | |
| D5 | 66549 | Air Intake Tube | |
| D6 | 66201 | Engine Control Module | |
| D7 | 66173 | Ambiant Air Temp Sensor | |
| D8 | 56600 | Air Filter Housing | |
| D9 | 33898 | Primary Air Filter | |
| D10 | 33899 | Secondary Air Filter | |
| D11 | 61692 | Gas Shock | |
| D12 | 66091 | Exhaust Clamp | |
| D13 | 66039 | Lower Exhaust Tube | |
| D14 | 733-5794 3'' Muffler Clamp | ||
| D15 | 66164 | Fuel Filter | |
| D16 | 66556 | Murr Module | |
| D17 | 66090 | Rubber Intake Tube Clamp - 3.94 - 4.25 | |
| D18 | 28339 | Pre Cleaner Ex-30 | |
| D19 | 30659 | Reducing Elbow | |
| D20 | 29576 | Air Intake Elbow | |
| D21 | 66547 | Rubber Insert |
