← Jackrabbit 30-36 Elevator (CAT 2.8L)

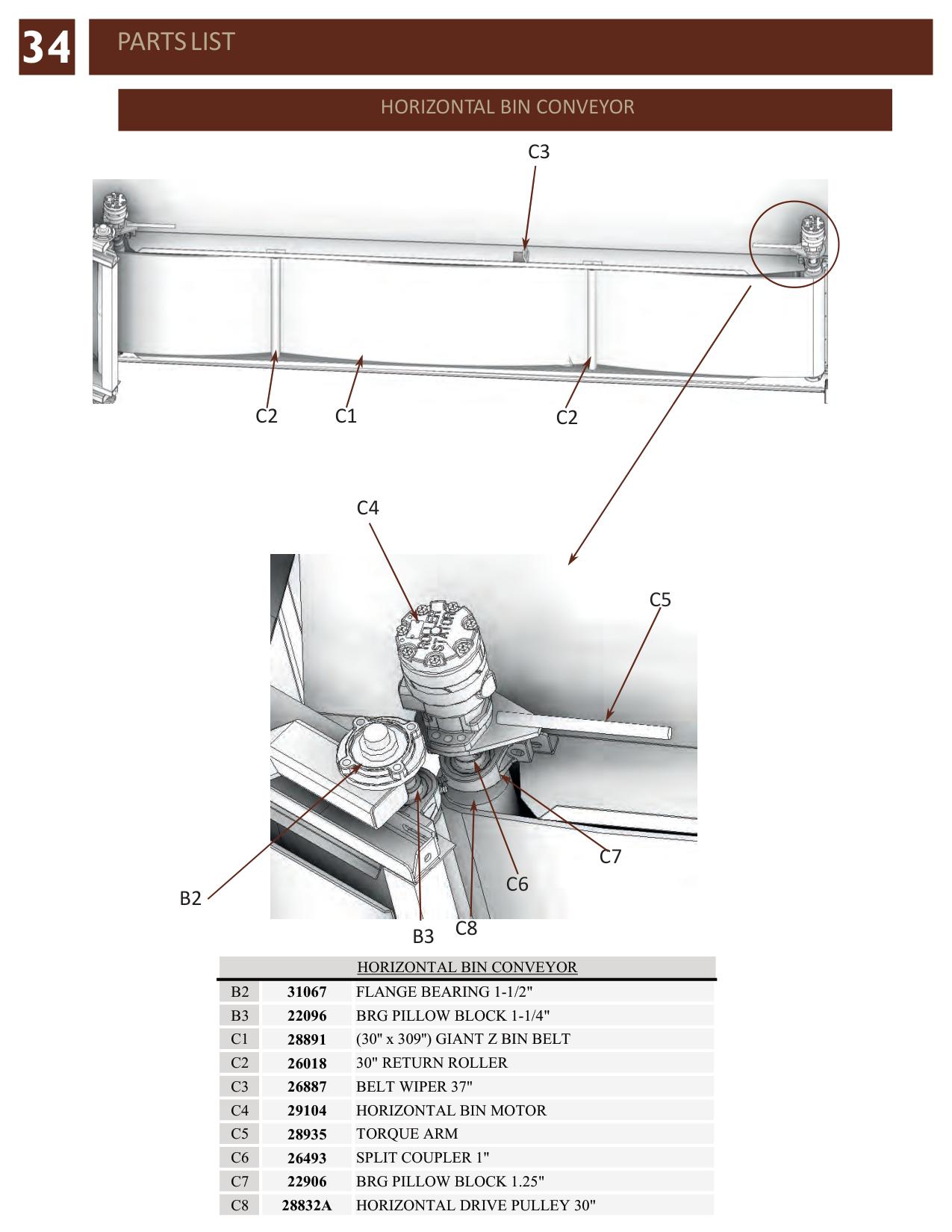

Horizontal Bin Conveyor · Jackrabbit Jackrabbit 30-36 Elevator (CAT 2.8L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| C1 | 28891 | (30'' X 309'') Giant Z Bin Belt | |
| C2 | 26018 | 30" Return Roller | |
| C3 | 26887 | Belt Wiper 37" | |
| C4 | 29104 | Horizontal Bin Motor | |
| C5 | 28935 | Torque Arm | |
| C6 | 26493 | Split Coupler 1" | |
| C7 | 22906 | Brg Pillow Block 1.25" | |
| C8 | 28832A | Horizontal Drive Pulley 30" |
