← Jackrabbit 30-36 Elevator (CAT 2.8L)

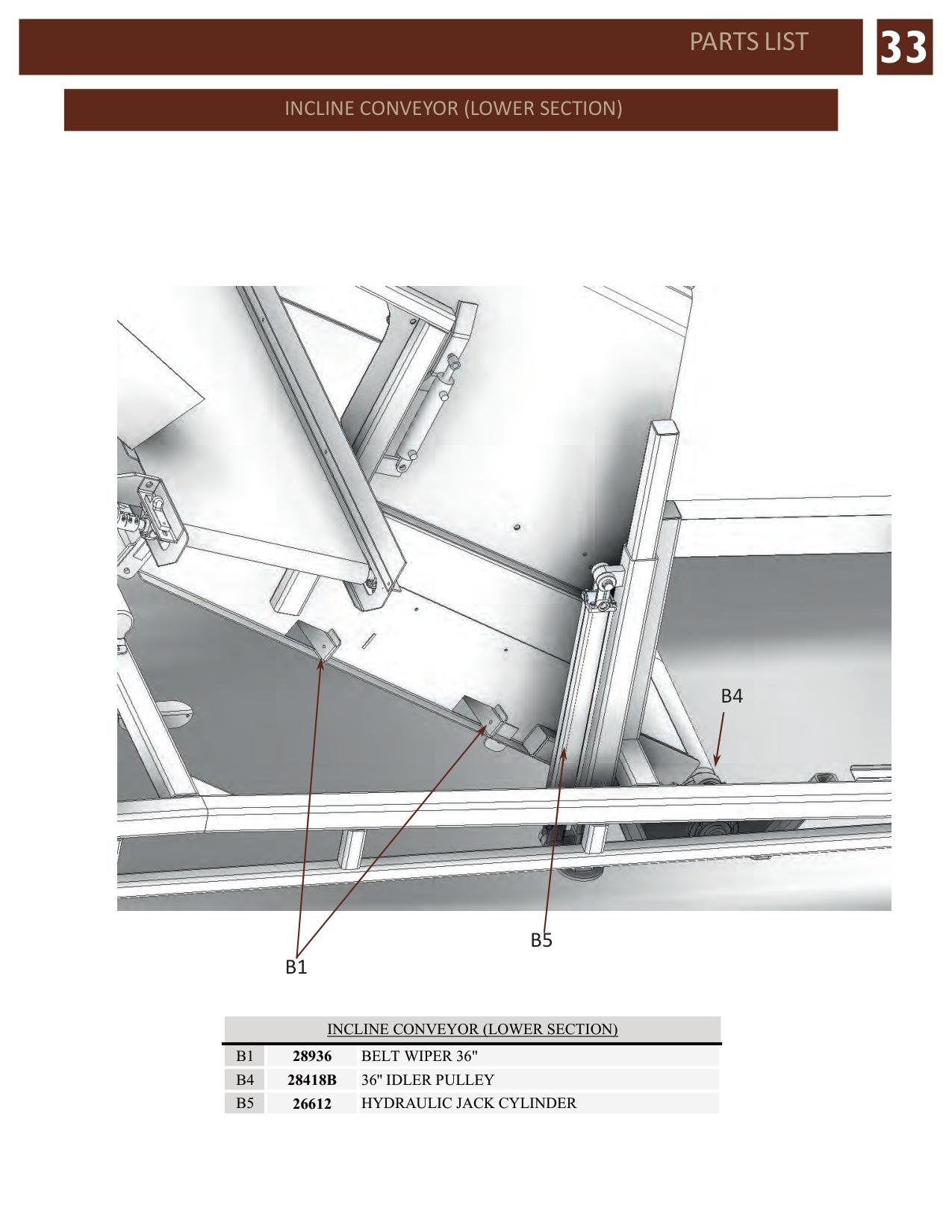

Incline Conveyor (Lower Section) · Jackrabbit Jackrabbit 30-36 Elevator (CAT 2.8L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| B1 | 28936 | Belt Wiper 36" | |
| B2 | 31067 | Flange Bearing 1-1/2" | |
| B3 | 22096 | Brg Pillow Block 1-1/4" | |
| B4 | 28418B | 36'' Idler Pulley | |
| B5 | 26612 | Hydraulic Jack Cylinder |
