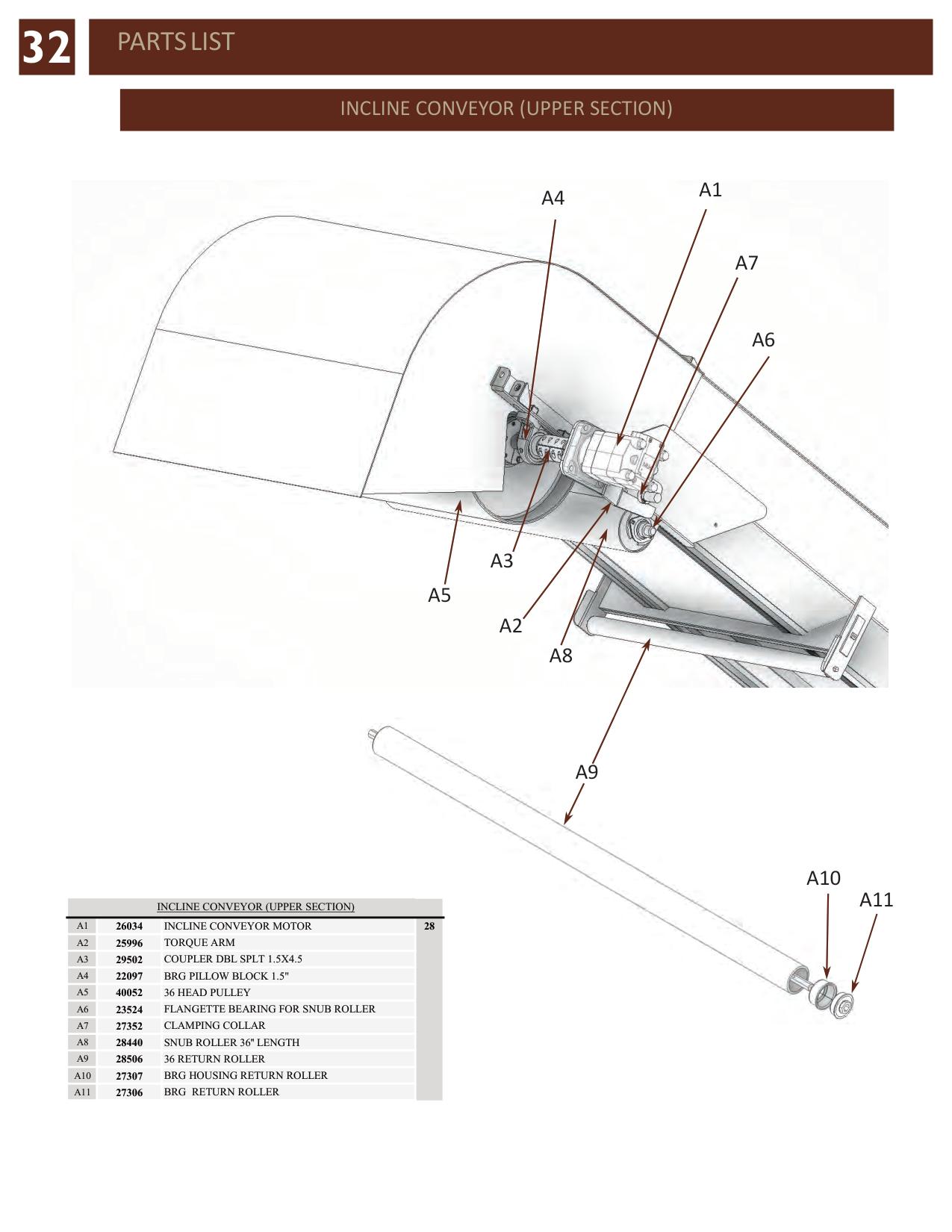

Incline Conveyor (Upper Section) · Jackrabbit Jackrabbit 30-36 Elevator (CAT 2.8L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| A1 | 26034 | Incline Conveyor Motor | |
| A2 | 25996 | Torque Arm | |
| A3 | 29502 | Coupler Dbl Splt 1.5X4.5 | |
| A4 | 22097 | Brg Pillow Block 1.5" | |
| A5 | 40052 | 36 Head Pulley | |
| A6 | 23524 | Flangette Bearing For Snub Roller | |
| A7 | 27352 | Clamping Collar | |
| A8 | 28440 | Snub Roller 36'' Length | |
| A9 | 28506 | 36 Return Roller | |
| A10 | 27307 | Brg Housing Return Roller | |
| A11 | 27306 | Brg Return Roller |
