Jjl 20/30 Elevator · Jackrabbit Jackrabbit 20/30 JJ Elevator

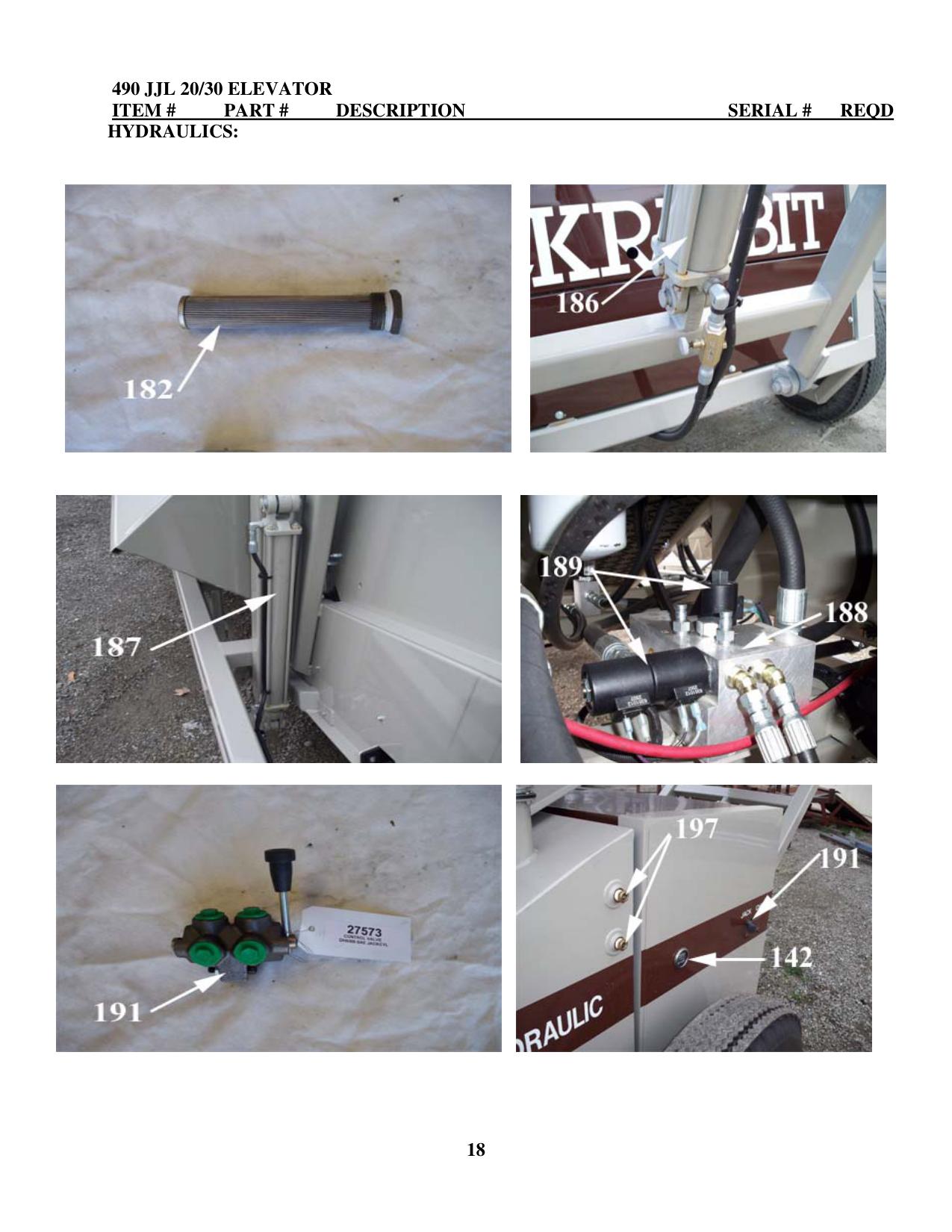

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 5 | 22097 | Bearing (1-1/2” Pillow Block) | 2 |
| 8 | 23524 | Flangette Bearing (#52 MST 22PPRAG) | 2 |
| 9 | 27375 | (30” x 64’ 6”) Giant Z Incline Belt 1-129 & 207--- | 1 |
| 10 | 27306 | Bearings For Return Rollers | 16 |
| 16 | & 400 22977 Bearing (1” Pillow Block) | 6 | |
| 26 | 31067 | Bearing (RFC350 1-1/2”) | 2 |
| 30 | 26464 | Bearings Pad | 8 |
| 33 | 27377 | (20” x 318”) Giant Z Bin Belt 115--- | 1 |
| 300 | 24537 | JACLRABBIT (White) | 1 |
| 350 | 23944 | Tires 7.5 X 16 LTE | 2 |
| 400 | 22977 | VAK 1” Pillow Block Bearing | 10 |
| 401 | 26201 | 6T 550 Eccentric Sprocket W/Bearing 5/8” Bore | 4 |
| 402 | 26201A | 6T 550 Concentric Sprocket W/Bearing 5/8” Bore | 2 |
| 403 | 26201B | 6T Idler Sprocket AG 2426F 3/4” Bore | 2 |
| 404 | 22983 | 8T 550 Idler – AETNA 5/8” Bore | 1 |
| 405 | 26202 | 11T 550 1” ID Sprocket | 4 |
| 410 | 27380 | (12” x 196”) Giant Z Incline Belt, Almonds & Walnuts | 1 |
| 411 | 27379 | (12” x 102”) Giant Z Cross Conv. Belt, Almonds & Walnuts | 1 |
| 413 | 26149A | (30”x 119”) Giant Z DS30 Cross Conv. Pecan | 1 |
| 414 | 27380A | (24” x 276”) Giant Z DS30 Incline (MGM Farms) Pecan | 1 |
| 415 | 27523B | 12” Lacung Pin | 1 |
| 420 | 26120 | Desticker Chain Weldment (DS30) | 1 |
| 421 | 26780B | Desticker Master Link Bar W/4 Flags | 1 |
| 422 | 26780A | Desticker Master Link Bar W/ 3 Flags | 1 |
| 423 | 26780 | Desticker Master Link Bar W/Fingers | 1 |
| 424 | 26046 | Flags (Only) | 1 |
| 425 | 27141 | CA 557 Master Link No Attachment | 1 |
| 426 | 27141A | CA557 Master Offset Link #E4008 | 1 |
| 427 | 27142 | CA 557 Master Link W/A4 Attachment | 1 |
| 430 | 24664 | DS Drive Motor (RS #180201) | 1 |
| 431 | 27017 | Conveyor Drive Motor (RS #100201) | 2 |
| 432 | 26050A | Manifold Duel Flow | 1 |
| 433 | 27313 | Solenoid Valve Waterman 15C7TS | 1 |
| 434 | 27317 | Priotity Valve FRDA XAN 1.0 | 1 |
| 435 | 27318 | Waterman Coil 70402S-12 | 1 |
| 450 | 26692 | Rubber Stick Bumper (4” X 59”) | 1 |
| 451 | 27583 | WARNING (Decal) | 2 |
| 452 | 26231 | Shield for Sprockets, UHMW | 2 |
| 453 | 26232 | Outer Shield for Sprockets, Metal | 4 |
| 460 | 26158 | Drive Pulley (Conveyor) 2.08” X 12” | 2 |
| 461 | 26157 | Idler Pulley (Conveyor) 2.08” X 12” | 2 |
| 462 | 26158A | Drive Pulley (Conveyor) SRC 2.08 X 24” Pecan (MGM) | 1 |
| 463 | 26157A | Idler Pulley (Conveyor) 2.08” X 24” Pecan (MGM) | 1 |
| 464 | 27536 | Drive Pulley (Conveyor) SRC 2.08”X 30” Pecan | 1 |
| 465 | 27538 | Idler Pulley (Conveyor) 2.08 X 30” Pecan | 1 |
| 466 | 26143 | 1” Drive Shaft | 1 |
| 467 | 26144 | 1” Idler Shaft | 1 |
| 468 | 26493 | Climax Coupler 1” (CC-100-100) | 3 |
| 469 | 24395D | Torque Arm, WoodChuck | 1 |
| 470 | 26622/A Side Seal 6” x 24” | 2 | |
| 471 | 27373 | Slide Kit ( #472-475) | 1 |
| 472 | 22190 | ¼” x ¾” Elevator Bolts, Nuts & Washers | 28 |
| 473 | 26129 | Upper Chain Slide | 4 |
| 474 | 25386 | Short Upper Slide | 4 |
| 475 | 24491 | Exhaust Slide (Incline) | 2 |
| 480 | 27208 | Cross Conveyor Seal | 1 |
