Jjl 20/30 Elevator · Jackrabbit Jackrabbit 20/30 JJ Elevator
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 150 | 26403 | Rocker Switch (1TP4-2) Throttle & Belt | 2 |
| 151 | 27118 | Rocker Switch Momentary (#1TP4-7) Jack & Chute | 1 |
| 152 | 27527 | Toggle Switch (1TL1-2) | 1 |
| 153 | 27528 | Push Button Switch (90030) @ end of bin | 1 |
| 154 | 27121 | Key Switch (Deutz Ing.) (117-6269) | 1 |
| 155 | 27131A | Engine Oil Temperature Gauge (118 2577) 2” hole | 1 |
| 156 | 27145 | Deutz Idiot Light Assembly | 1 |
| 157 | 27123 | Light Bulb Only | 1 |
| 158 | 27787 | Circuit Breaker Cole Hersee 30055-6 5 AMP | 1 |
| 159 | Relay | 2 | |
| 160 | 28246 | Remote Control Transmitter | 1 |

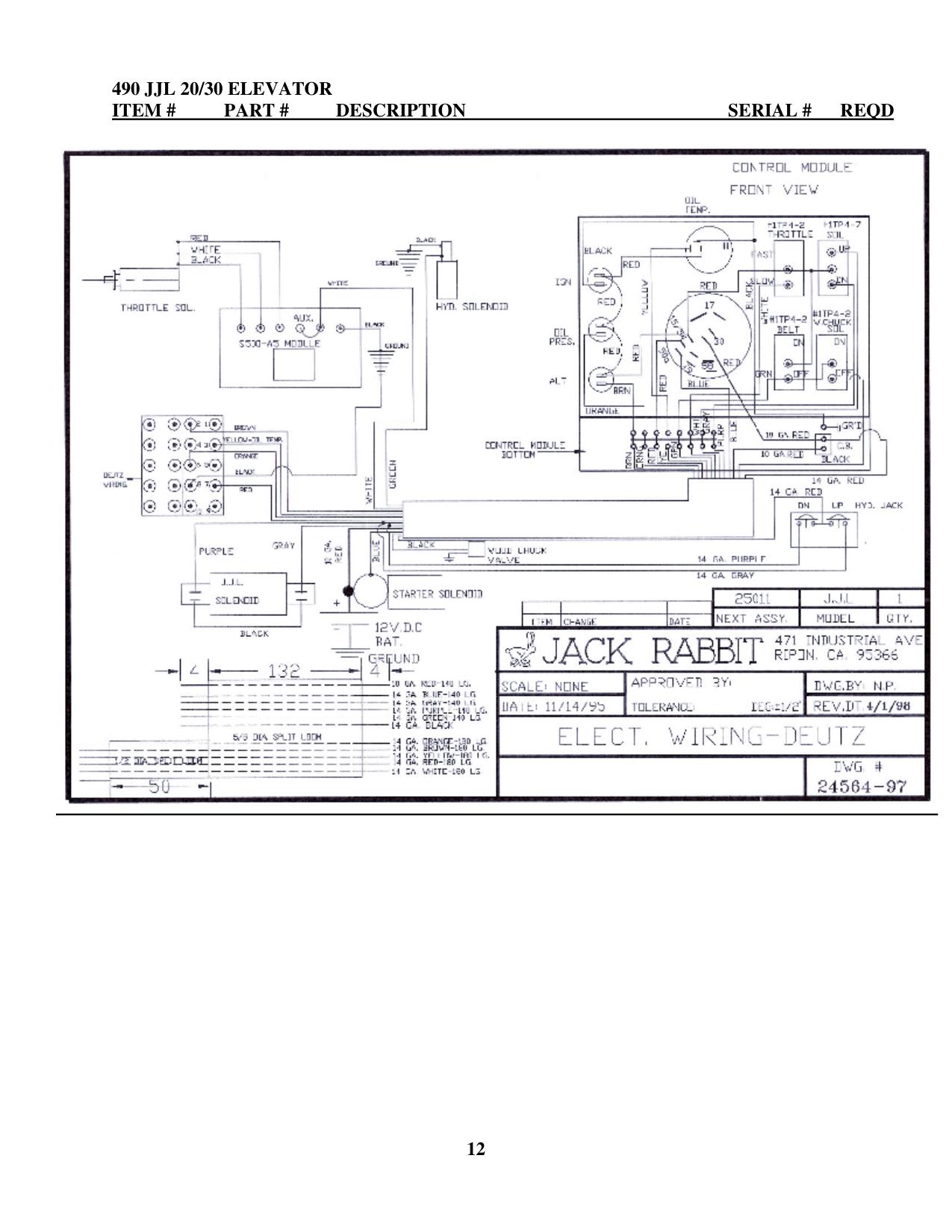

| 161 | 24564-97 Electrical Wiring Schematic for 20/30 & WoodChuck | 1 |
