Jjl 20/30 Elevator · Jackrabbit Jackrabbit 20/30 JJ Elevator

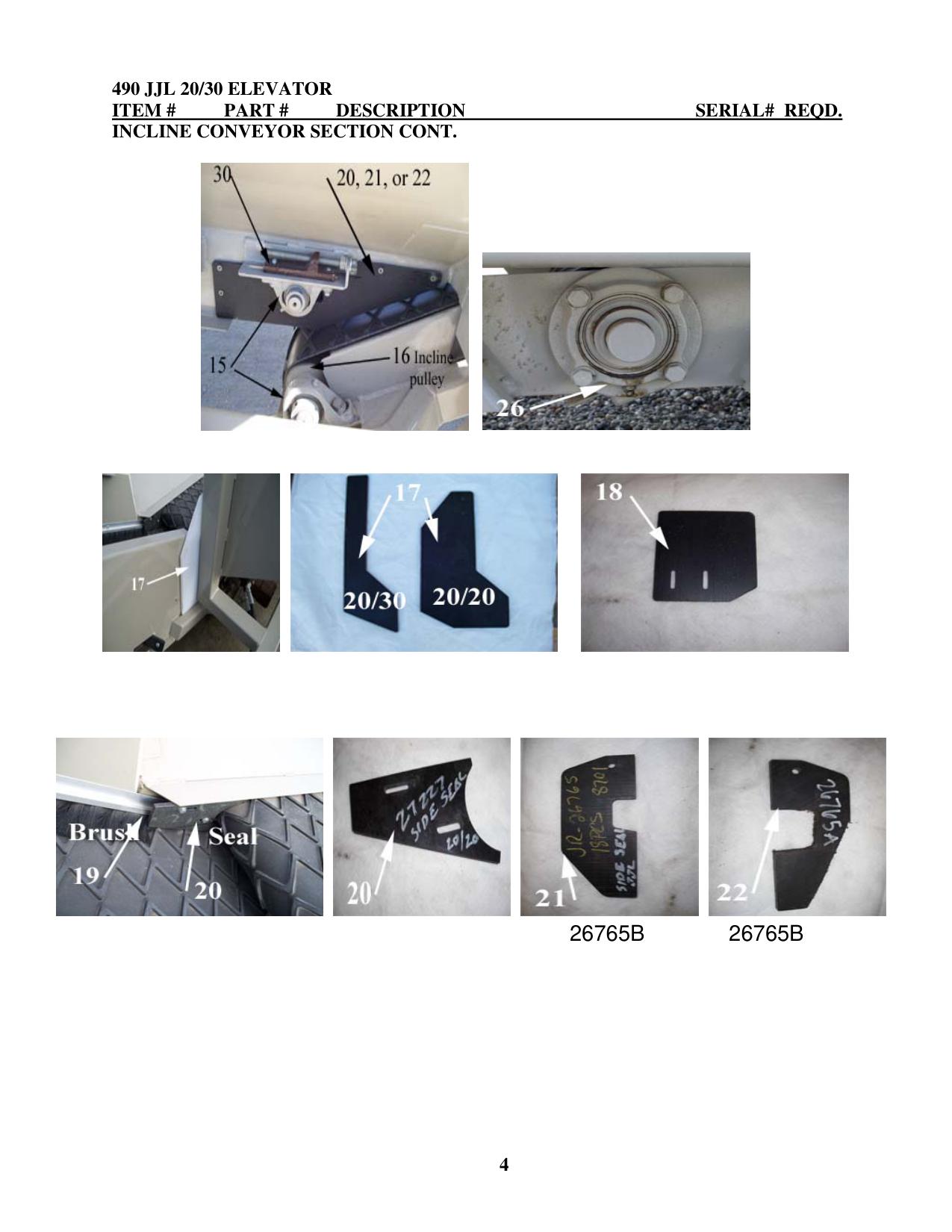

Tap a circled number on the diagram to identify the part.

#	Part number	Description	Qty
15	22977	Bearing (1” Pillow Block)	4
16	24341A	Idler Lower 20 ¼” W/Lag 1-161	1
26	31067	FC350 1 ½” Bearing	2
30	26464	Bearings Pad	2
33	27377	(20” x 318”) Giant Z Bin Belt 115---	1
33A	24556	Belt Wiper UHMW 27 ¾”	1
34	24664	Lower Hyd. Motor (RS180201) 162---	2
35	26493	Motor Coupler (Climax Coupler CC100-100) 162---	2
36	24395A	Lower Torque Arm 162---	2
37	24340A	Lower Drive Pulley W/Lag 162---	2
38	24368	20”x 27 ½” Rear Skid Pan	1
39	24369	20” x 45 ½”Center Skid Pan	1
40	24371	20” x 64 ½”Front Skid Pan	1
41	24657	20 3/8” x 18 ½”Lower Extension Pan	1
42	24662	23 ½” x 21 3/8” Extension Upper	1
43	26045A	20” Bin Extension Upper ( New )	1
