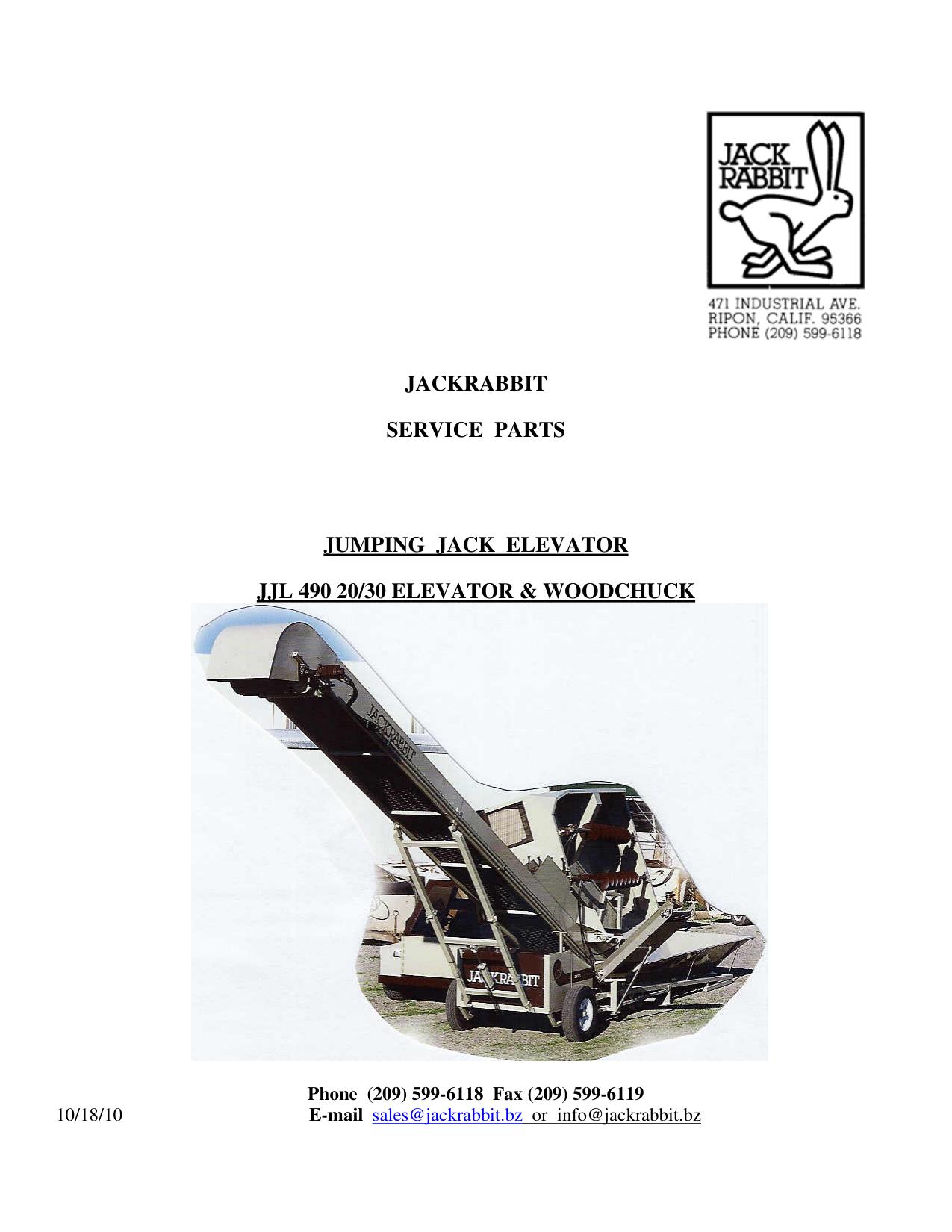

Jackrabbit · Jackrabbit Jackrabbit 20/30 JJ Elevator

Tap a circled number on the diagram to identify the part.

#	Part number	Description	Qty
1	26034	Incline Conveyor Motor (OMT500) 66-115,120,130----	1
2	25996	Upper Torque Arm	1
3	27352	Clamping Collar	1
4	26812	Coupler Solid 1-1/2” ID	1
5	22097	Bearing (1-1/2” Pillow Block)	2
6	26011	Upper Drive Pulley 30” W/LG. & Shaft	1
7	24374	Snub Roller 30” Length	1
8	23524	Flangette Bearing (52 MST 22PPRAG) for snub roller	2
9	27375	(30” x 64’ 6”) Giant Z Incline Belt 1-129 & 207---	1
10	26018	Idler Roller 30 – 3/8” Length, Return Roller	8
11	27307	Bearing Housing For Return Rollers (End Cap)	12
12	27306	Bearings for Return Rollers	12
13	28216	Shaft & Spring for 30 3/8”Return Roller	6
14	26887	Belt Wipers (UHMW 37”) 30” Incline Belt	2
15	22977	Bearing (1” Pillow Block)	2
16	24341B	Idler Pulley, Lower 30 ¼” W/Lag	1
17	24923	Slide Spacer UHMW 20/20	2
18	28120	Transition Seal Incline Belt (UHMW)	2
19	24659	Brushes and Holder Assembly	6
20	27227	Transition Side Seal, 20/20 130-149	1
21	26765	Transition Side Seal	1
22	26765A	Transition Side Seal	1
23	26002	Incline Long Pan 240”	1
