← Jackrabbit 20/20 JJ Elevator
Jjl 20/20 Elevator · Jackrabbit Jackrabbit 20/20 JJ Elevator

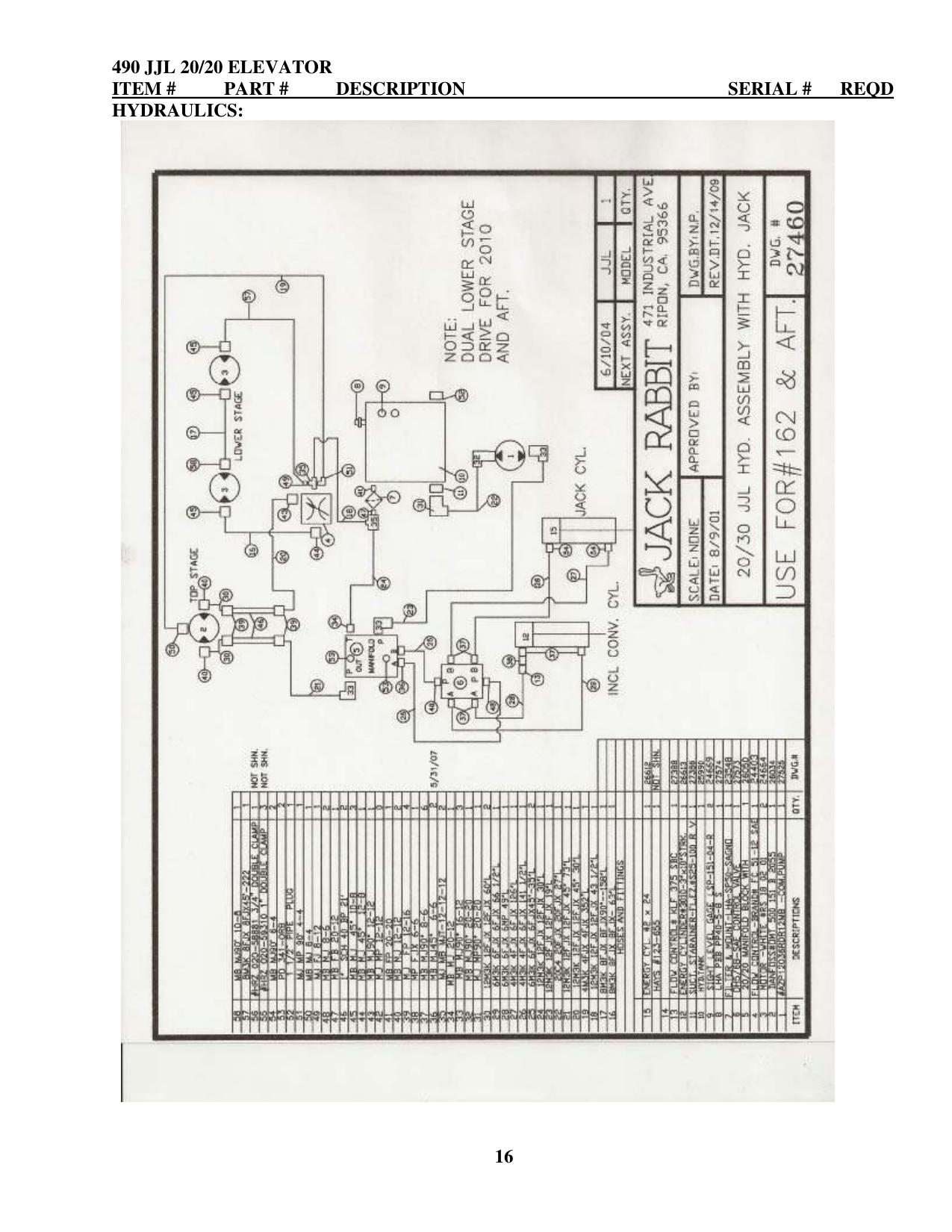

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 26034 | Incline Conveyor Motor (OMT500) #66-115,120,130---- | 1 |
| 35 | 24664 | Lower Hyd. Motor (#RS180201) #162--- | 2 |
| 180 | 23548A | Filter Element (LHA SP50-10) | 1 |
| 181 | 23548 | Filter (LHA SP50-NAGNO) Assemble | 1 |
| 182 | 24671 | Suction Flow Strainer (#S25-100-RV3) | 1 |
| 183 | 27386 | EZ Flow Strainer (#S 15 100-RV3) | 1 |
| 184 | 22283 | Breather (LHA PBB 40-5-8S) | 1 |
| 185 | 27574 | Pump (#P315 193FW AB20 65 RO ABO5-010 | 1 |
| 186 | 26613 | Cylinder (3” Dia x 10” Stroke) | 1 |
| 186 | 24641 | Lower Pin – Cylinder | 1 |
| 187 | 26612 | Cylinder (2”Dia. x 24”) Jack #7739 | 1 |
| 188 | 26050 | Duel Flow Manifold Block Assembly | 1 |
| 190 | 27524 | Jack or Incline Conveyor Selector Valve | 1 |
| 191 | 27573 | Jack or Incline Conveyor Selector Valve (DH5/6B-SAE) | 1 |
| 192 | 25335 | Flow Divider (BGR 51-3/4) | 1 |
| 193 | 24403 | Flow Control (FC 51-3/4) | 1 |
| 194 | 27388 | Flow Control Valve (KLF 375, 5BC) | 1 |
| 195 | 27182 | Hydraulic Tank Filler Cap | 1 |
| 196 | 26199 | Clamp (1” Hycon Double Clamp) | 3 |
| 197 | 24669 | Sight, Level Gauge (LSP-151) | 1 |
