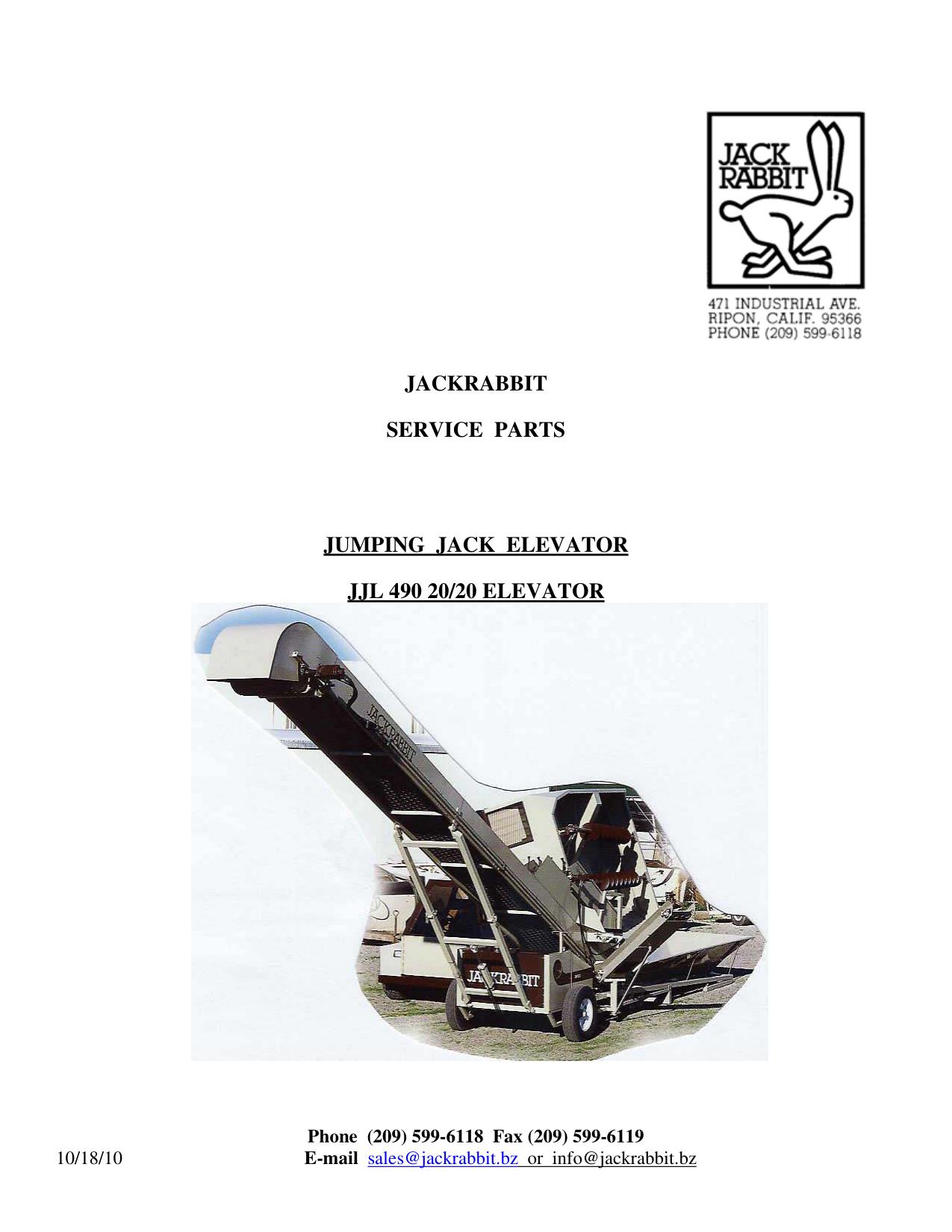

← Jackrabbit 20/20 JJ Elevator
Jackrabbit · Jackrabbit Jackrabbit 20/20 JJ Elevator
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 26034 | Incline Conveyor Motor (OMT500) 66-115,120,130---- | 1 |
| 2 | 25996 | Upper Torque Arm | 1 |
| 3 | 27352 | Clamping Collar | 1 |
| 4 | 26812 | Coupler Solid 1-1/2” ID | 1 |
| 5 | 22097 | Bearing (1-1/2” Pillow Block) | 2 |
| 6 | 24344 | Upper Drive Pulley 20” w/lag | 1 |
| 7 | 24374A | Snub Roller | 1 |
| 8 | 23524 | Flangette Bearing (#52 MST 22PPRAG) for snub roller | 2 |
| 9 | 27376 | (20” x 64’ 6”) Giant Z Incline Belt 1-129 & 207--- | 1 |
| 10 | 25070 | Idler Roller 20 3/8” return | 6 |
| 11 | 27307 | Bearing Housing for return rollers (end cap) | 12 |
| 12 | 27306 | Bearings for return rollers | 12 |
| 13 | 28215 | Shaft & Spring for 20 3/8”return roller | 6 |
| 14 | 24556 | Belt Wiper (UHMW) 27-3/4” | 2 |
| 15 | 22977 | Bearing (1” pillow block) | 2 |
| 16 | 24341A | Idler Pulley, lower 20 ¼” w/lag | 1 |
| 17 | 24923 | Slide Spacer UHMW (for 20/20) | 2 |
| 18 | 28120 | Transition Seal, incline belt (UHMW) | 2 |
| 19 | 24659 | Brushes and Holder Assembly | 6 |
| 20 | 27227 | Transition Side seal (for 20/20) | 1 |
| 21 | 26765 | Transition Side Seal | 1 |
| 22 | 26765A | Transition Side Seal | 1 |
| 26 | 31067 | FC 350 1 ½” Bearing | 1 |
| 28 | Incline Pan 21”X 114” (Welded to Incline Sides) | 1 |
