← Flory 9685/9610 Tractor Sweeper

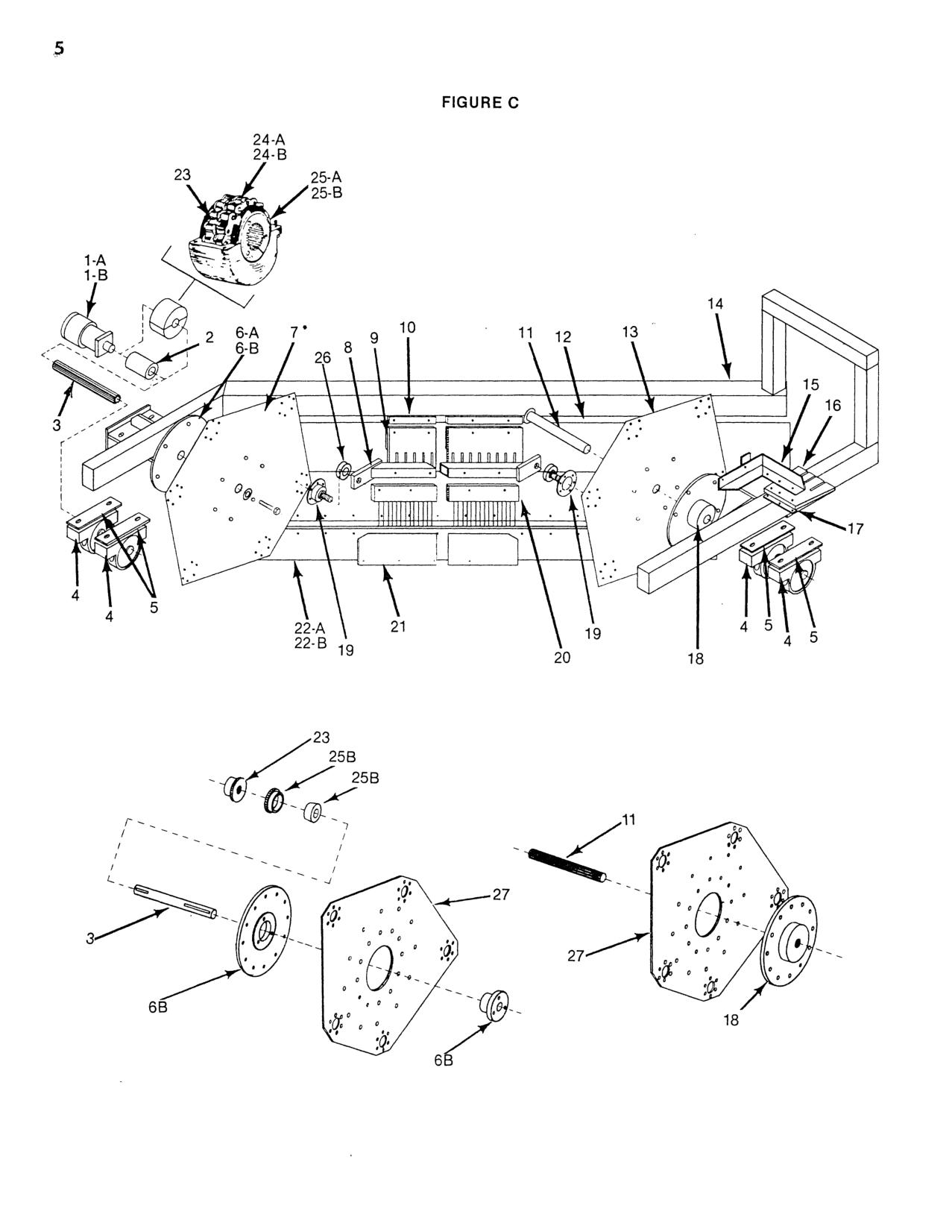

Figure 5 · Flory Flory 9685/9610 Tractor Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1A | CM179S | MOTOR-hydraulic | 1 |
| 1B | 60026 | KIT-seal (Char-Lynn Model no. 000-0000-007) | |
| 1B | 60533 | KIT-seal (Char-Lynn Model no. 000-0000-008) | |
| 1B | WMK14 | KIT-seal (White motor) | |
| 2 | TM5118 | COUPLER (serial no. 114 and before) | 1 |
| 3 | FS-TM5020 | SHAFT-splined (serial no. 101-138) | 1 |
| 3 | TM5021 | SHAFT-smooth (serial no. 139-144) | 1 |
| 4 | PBC2104 | BEARING | 4 |
| 5 | TM1498 | SPACER-bearing | 4 |
| 6A | TM6716 | HUB (serial no. 101-138) | 1 |
| 6B | TM6717 | HUB (serial no. 139-144) | 1 |
| 6B | SK104 | BUSHING (serial no. 139-144) | 1 |
| 7 | TM6175 | PLATE-end (serial no. 101-138) | 1 |
| 8 | TM6080 | BAR-tine (serial no. 101-130 & 138) | 6 |
| 8 | TM6081 | BAR-tine (serial no. 131-137 & 139-144) | |
| 9 | TM3031 | SWEEP-slotted rubber | 6 |
| 9 | T3034 | FINGER-rubber | 285 |
| 10 | TM6104 | CLAMPSTRIP-tine bar | |
| 11 | TM5006 | SHAFT (serial no. 101-138) | 1 |
| 11 | FS-TM5020 | SHAFT-splined (serial no. 139-144) | 1 |
| 12 | TM2051 | COVER-rear seal | 1 |
| 13 | TM6150 | PLATE-end (serial no. 101-138) | 1 |
| 14 | TM6070 | FRAME-reel | 1 |
| 15 | TM6126 | BRACKET-paddle | 12 |
| 16 | TM3042 | PADDLE | 12 |
| 17 | T6114 | CLAMPSTRIP-paddle | 12 |
| 18 | TM6162 | HUB (serial no. 101-138) | 1 |
| 18 | TM6716 | HUB (serial no. 139-144) | 1 |
| 19 | HR2296 | BEARING-tine bar (serial no. 101-130 & 138) | 12 |
| 19 | BR1690 | BEARING-tine bar (serial no. 131-137 & 139-144) | 12 |
| 20 | TM3020 | TINE | |
| 21 | TM6094 | RISER-tine bar | |
| 22A | TM3105 | SEAL | 1 |
| 22B | TM6130 | CLAMPSTRIP | 1 |
| 23 | 5016TMH | COUPLER (motor side) | 1 |
| 24A | 5016502 | CHAIN | 1 |
| 24B | 50DCL | LINK-connecting | 1 |
| 25A | FS-5016SPLH | COUPLER (sweeper side)(serial no. 101-138) | 1 |
| 25B | 50BTL16H | COUPLER (sweeper side)(serial no. 139-144) | 1 |
| 25B | 1610104 | BUSHING (serial no. 139-144) | 1 |
| 26 | T2018 | COVER-tine bar bearing (serial no. 101-130 & 138) | |
| 26 | T2019 | COVER-tine bar bearing (serial no. 131-137 & 139-144) . | |
| 27 | T6153 | PLATE-end (5 bar reel)(serial no. 139-144) | 2 |
| 28 | TM6072 | HOLDER-finger (not shown) | 6 |
