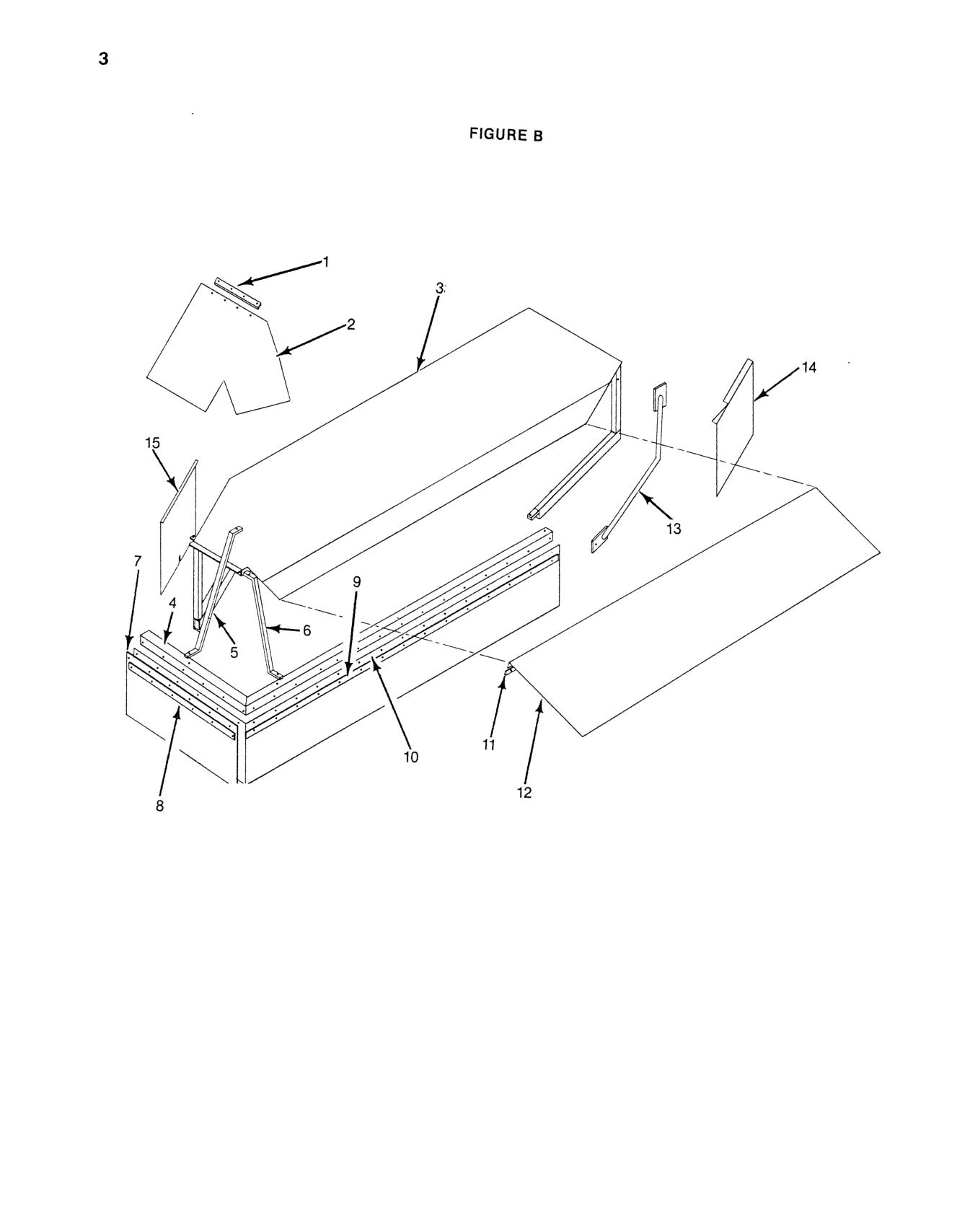

Figure 4 · Flory Flory 9685/9610 Tractor Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | TM6708 | CLAMPSTRIP-dust | 1 |
| 2 | TM3050 | CURTAIN-dust | 1 |
| 3 | TM2011 | COVER-reel | 1 |
| 4 | TM6057 | FRAME-windrow curtain | 1 |
| 5 | TM6044 | BRACE-right end | 1 |
| 6 | TM6046 | BRACE-front | 1 |
| 7 | TM3048 | CURTAIN-side | 1 |
| 8 | TM6018 | CLAMPSTRIP-side curtain | 1 |
| 9 | TM6008 | CLAMPSTRIP-windrow curtain | 1 |
| 10 | TM3010 | CURTAIN-windrow | 1 |
| 11 | TM6008 | CLAMPSTRIP-dust curtain | 1 |
| 12 | TM3068 | CURTAIN-dust | 1 |
| 13 | TM6030 | DEFLECTOR-branch | 1 |
| 14 | TM2112 | COVER-paddle | 1 |
| 15 | TM2111 | PLATE-filler | 1 |
