← Flory 9685/9610 Tractor Sweeper

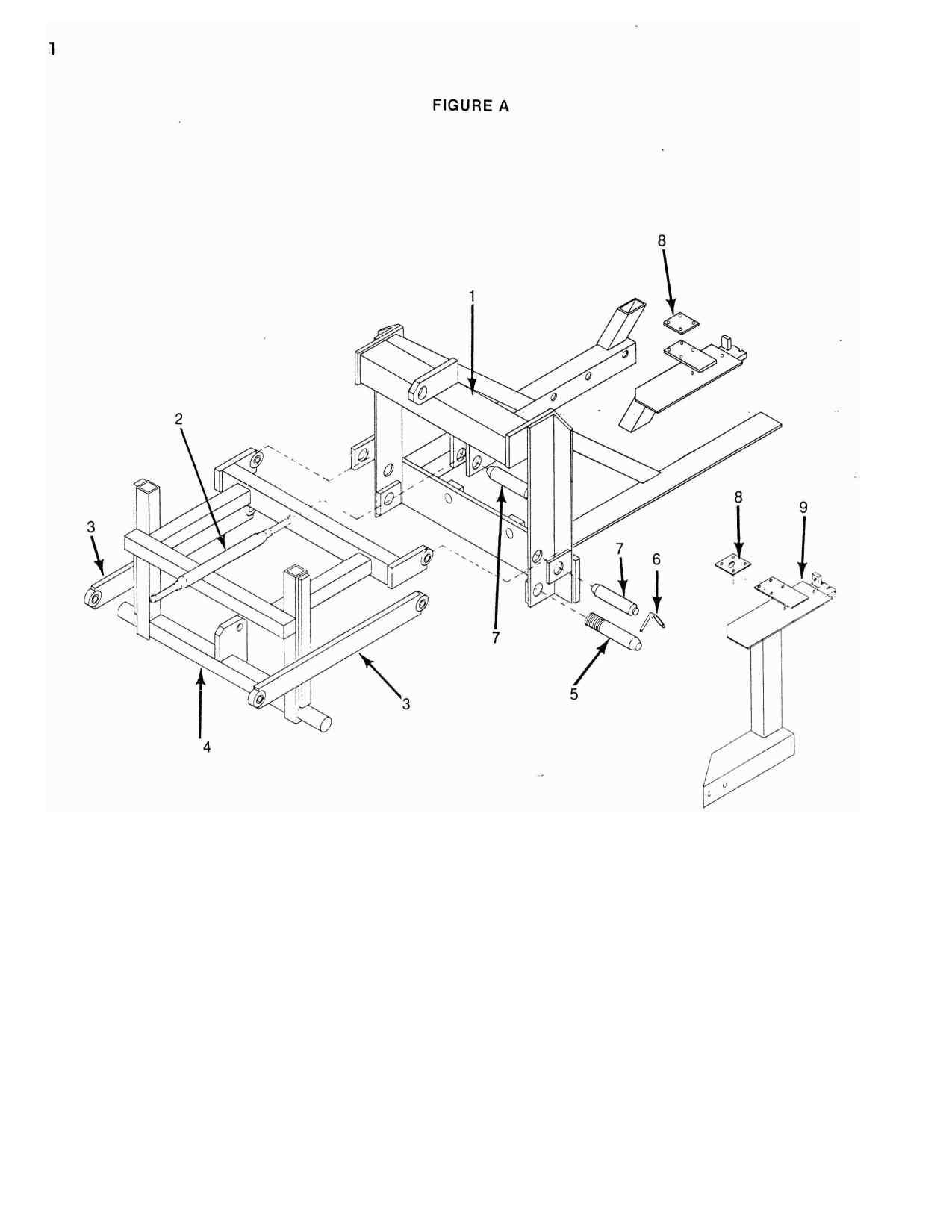

Figure 3 · Flory Flory 9685/9610 Tractor Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | TM6901 | FRAME-John Deere 2240, 2440 , and 2640 | 1 |
| 1 | TM6903 | FRAME-Massey Ferguson 265, 275, and 285 | 1 |
| 1 | TM6905 | FRAME-Ford 4000-7000, 4600, 5600, 6600 , and 7600 | 1 |
| 2 | 1757-16 | TOP LINK-pitch control | 1 |
| 3 | TM6211 | ARM-side (John Deere & Massey Ferguson) | 2 |
| 3 | TM6213 | ARM-side (Ford) | 2 |
| 4 | TM6271 | FRAME-lift | 1 |
| 5 | 12695 | PIN-implement | 4 |
| 6 | 12623 | PIN-klik | 8 |
| 7 | 12693 | PIN-top link | 4 |
| 8 | TM6801 | PLATE-flow control | 1 |
| 9 | TM6925 | FRAME-valve (Ford 4000-7000 , 4600, 6600, 7600) | 1 |
| 10 | TM6923 | FRAME-valve (Massey Ferguson 265, 275, and 285) | 1 |
