Right Side Brush Hydraulic Schematics · Flory Flory 78 Series Sweeper

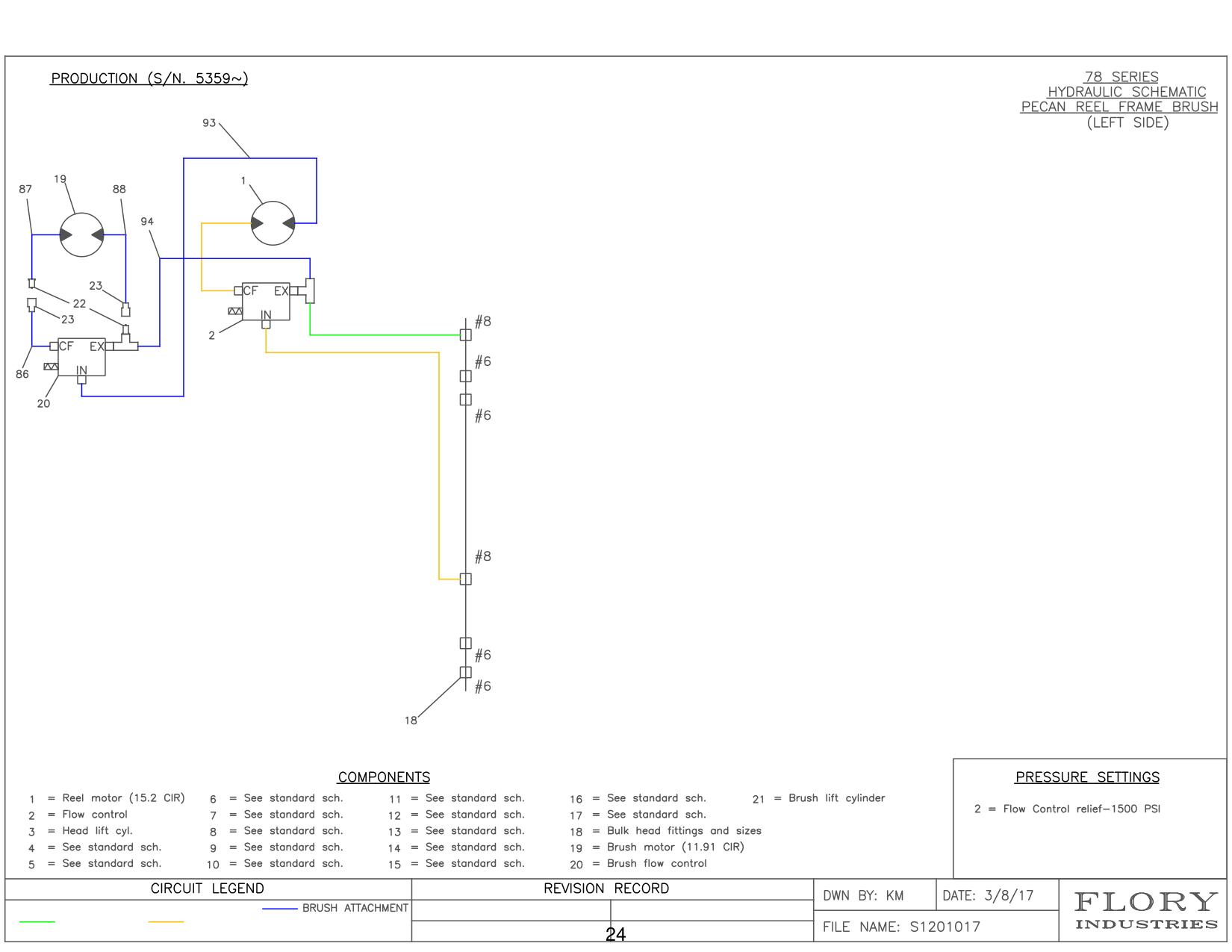

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 19 | HM1191 | MOTOR, hydraulic | 1 |
| 19 | HM2149-K | KIT, seal | 1 |
| 20 | RDRS195016P | VALVE, flow control | 1 |
| 20 | MK2190 | KIT, seal | 1 |
| 21 | WFC1504 | CYLINDER, hydraulic | 1 |
| 21 | LD108RK | SEAL KIT, cylinder | 1 |
| 22 | H4-63 | QUICK COUPLER, 1/2 male | 2 |
| 23 | H4-62 | QUICK COUPLER, 1/2 female | 2 |
| 24 | H3-63 | QUICK COUPLER, 3/8 male | 2 |
| 25 | H3-62 | QUICK COUPLER, 3/8 female | 2 |
| 80 | HOSE, pri. reel motor rt. port to brush flow ctrl 'IN' | 1 | |
| 81 | HOSE, brush flow ctrl 'CF' to brush motor Rt. port | 1 | |
| 82 | HOSE, brush motor Lt. port to brush flow ctrl 'EX' | 1 | |
| 83 | HOSE, brush flow ctrl 'EX' tee to pri flow ctrl. 'EX' | 1 | |
| 84 | HOSE, head lift cyl. Base tee to brush lift cyl. Rod end | 1 | |
| 85 | HOSE, brush lift cyl. Base end to hd lift cyl. Rod end tee | 1 | |
| 86 | HOSE, F/C "CF" port to male quick connect | 1 | |
| 87 | HOSE, brush motor right port to female quick connect | 1 | |
| 88 | HOSE, brush motor left port to brush F/C "EX" tee | 1 | |
| 89 | HOSE, brush lift cyl. rod end to female quick connect | 1 | |
| 90 | HOSE, brush lift cyl. base end to female quick connect | 1 | |
| 91 | HOSE, head lift cyl. rod end tee to male quick connect | 1 | |
| 92 | HOSE, head lift cyl. base end tee to male quick connect | 1 | |
| 93 | HOSE, pri. reel motor rt. port to brush flow ctrl 'IN' (PECAN) | 1 | |
| 94 | HOSE, brush flow ctrl 'CF' to brush motor Rt. Port (PECAN) | 1 | |
| 94 | BRUSH | ATTACHMENT |
