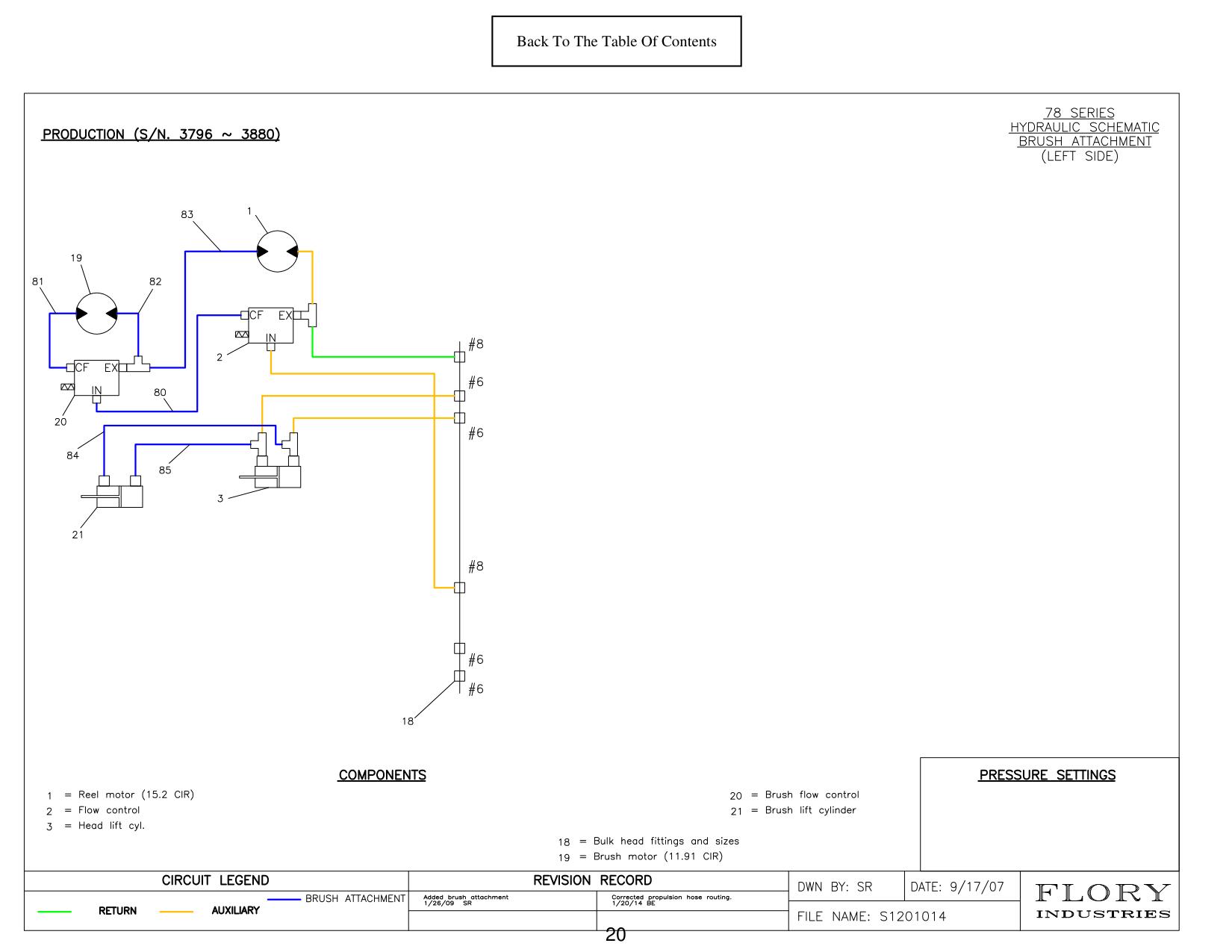

Figure 9 · Flory Flory 78 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 19 | HM1191 | MOTOR, hydraulic | 1 |
| 19 | HM2149-K | KIT, seal | 1 |
| 20 | RDRS195016P | VALVE, flow control | 1 |
| 20 | MK2190 | KIT, seal | 1 |
| 21 | WFC1504 | CYLINDER, hydraulic | 1 |
| 21 | LD108RK | SEAL KIT, cylinder | 1 |
| 80 | HOSE, pri. reel flow ctrl 'CF' to brush flow ctrl 'IN' | 1 | |
| 81 | HOSE, brush flow ctrl 'CF' to brush motor Rt. port | 1 | |
| 82 | HOSE, brush motor Lt. port to brush flow ctrl 'EX' | 1 | |
| 83 | HOSE, brush flow ctrl 'EX' tee to pri reel motor Lt. port | 1 | |
| 84 | HOSE, head lift cyl. Base tee to brush lift cyl. Rod end | 1 | |
| 85 | HOSE, brush lift cyl. Base end to hd lift cyl. Rod end tee | 1 | |
| 85 | MODEL | SIDE KICK |
