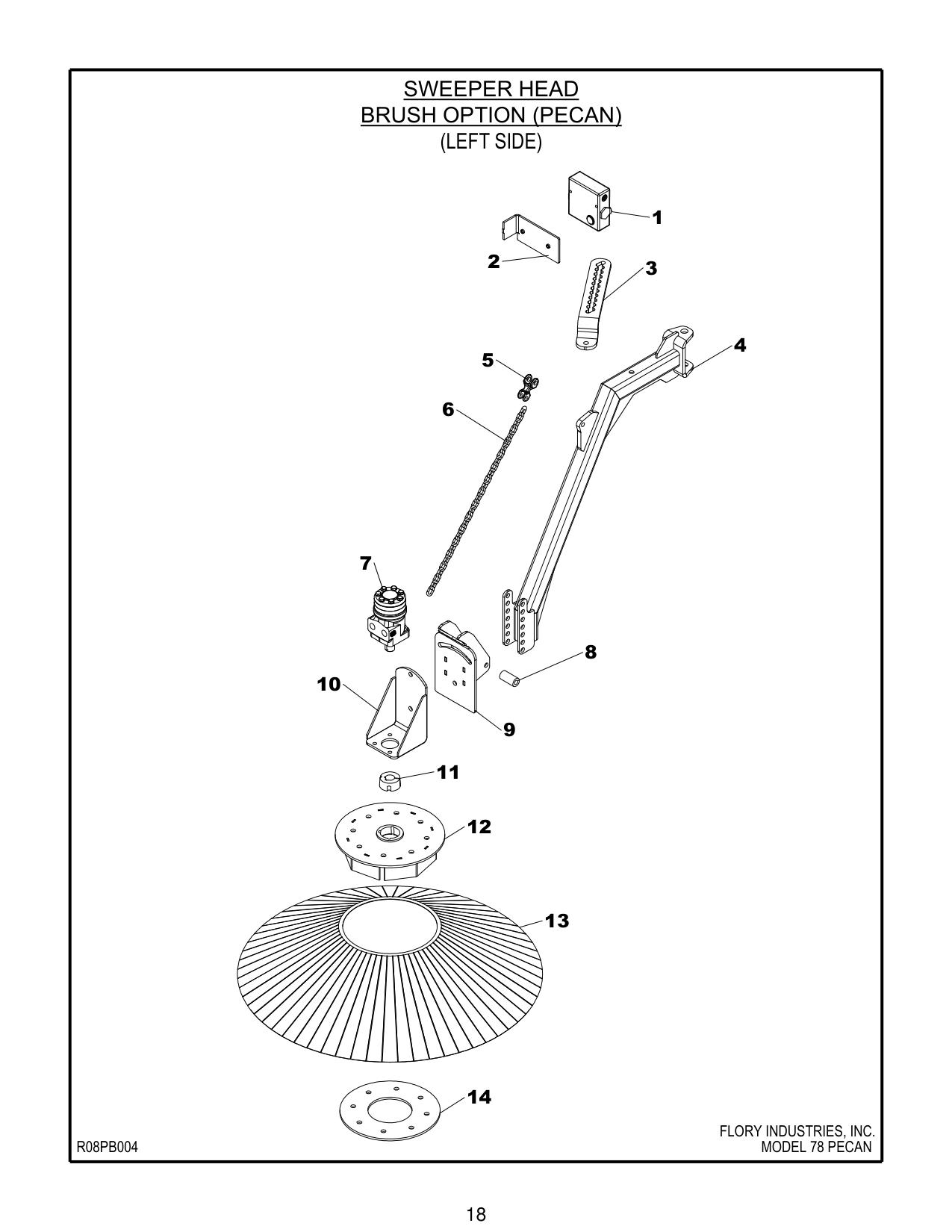

Figure 8 · Flory Flory 78 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1A | RDRS195016P | VALVE, flow control | 1 |
| 1B | MK2190 | KIT, seal | 1 |
| 2 | T636X7-063 | MOUNT, flow control (required weld on, sn ~ 5603) | 1 |
| 3 | T69837 | BRACKET, adjustment | 1 |
| 4 | T69823 | ARM, swing | 1 |
| 5A | PN4055 | CLEVIS, double | 1 |
| 5B | 87462 | PIN, clevis | 1 |
| 6 | CH2024 | CHAIN, 2/0 | 1 |
| 7A | HM1191 | MOTOR, hydraulic | 1 |
| 7B | HM2149-K | KIT, seal | 1 |
| 8 | C1906 | SPACER | 1 |
| 9 | T69737 | BRACKET, pitch | 1 |
| 10 | T69747 | MOUNT, motor | 1 |
| 11 | 1610100 | BUSHING | 1 |
| 12 | T69757 | PLATE, brush mount (top) | 1 |
| 13A | BH1036 | BRUSH, 36" | 4 |
| 13B | BH1046 | BRUSH, 46" | 4 |
| 14 | T69767 | PLATE, brush mount (bottom) | 1 |
| 14 | 1/4 X 2-1/2-C | USS BOLT | 2 |
| 14 | 3/8X1-C | USS BOLT | 4 |
| 14 | 1/2 X 1-1/2-C | USS BOLT | 3 |
| 14 | 1/2 X 3-C | USS BOLT | 1 |
| 14 | 1/2 X 3-1/2-C | USS BOLT | 9 |
| 14 | 5/8 X 2-C | USS BOLT | 2 |
| 14 | 1/4FW-C | USS FLATWASHER | 1 |
| 14 | 1/2FW-C | USS FLATWASHER | 13 |
| 14 | 1/4LW-C | USS LOCKWASHER | 2 |
| 14 | 3/8LW-C | USS LOCKWASHER | 4 |
| 14 | 1/4LN-C | USS LOCKNUT | 1 |
| 14 | 1/2LN-C | USS LOCKNUT | 13 |
| 14 | 5/8LN-C | USS LOCKNUT | 2 |
| 14 | MODEL | SIDE KICK |
