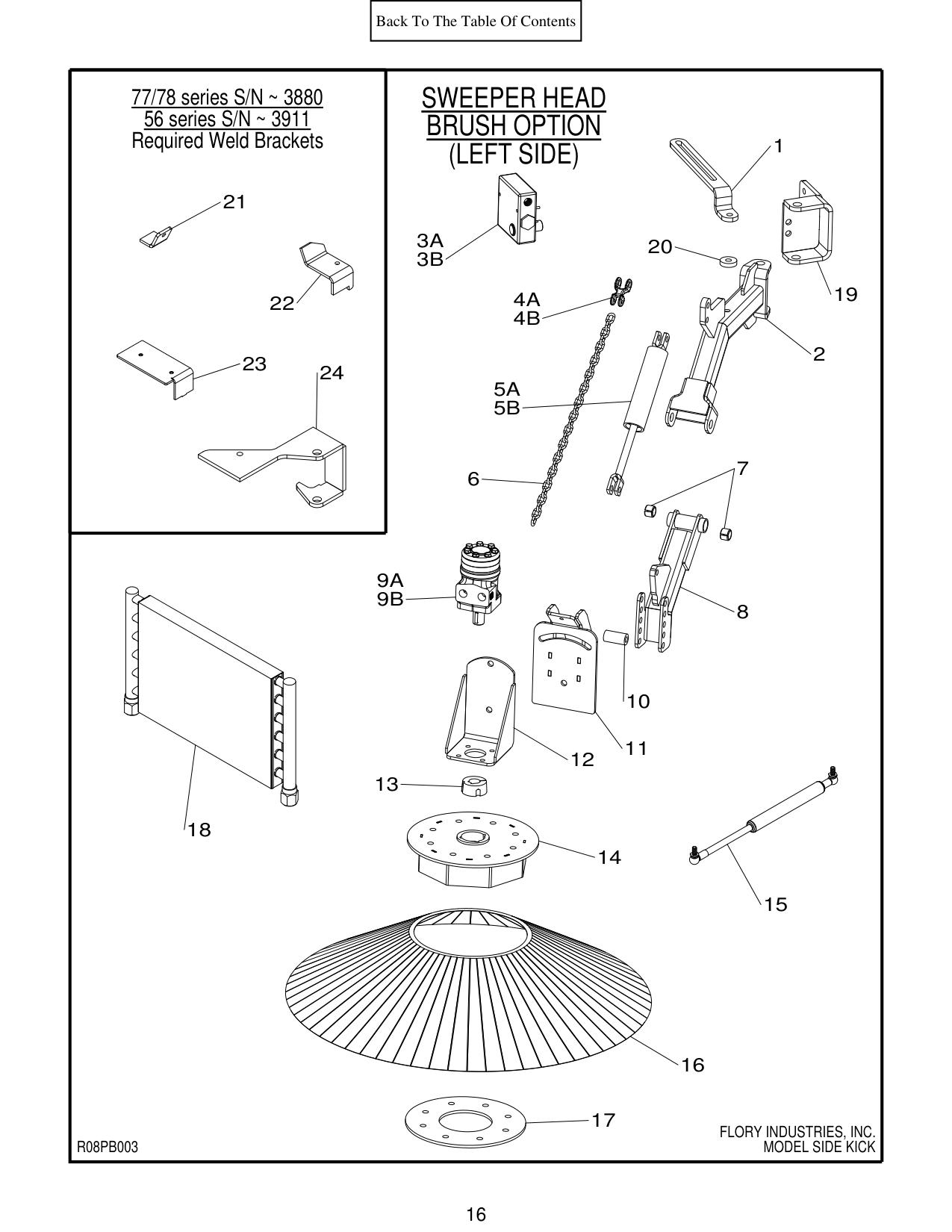

Figure 7 · Flory Flory 78 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 063T-6-6 | ADAPTER, hyd | 2 | |
| 2103-4-4 | ADAPTER, hyd | 2 | |
| 3/4 X 5-C | USS BOLT | 1 | |
| 3/4 X 2-C | USS BOLT | 2 | |
| 1/2 X 3-1/2-C | USS BOLT | 9 | |
| 1/2 X 1-1/2-C | USS BOLT | 5 | |
| 5/16 X 1-C | USS BOLT | 1 | |
| 1/4 X 2-1/2-C | USS BOLT | 2 | |
| 3/4FW-C | USS FLATWASHER | 6 | |
| 1/2FW-C | USS FLATWASHER | 6 | |
| 5/16FW-C | USS FLATWASHER | 1 | |
| 1/4LW-C | USS LOCKWASHER | 2 | |
| 3/4LN-C | USS LOCKNUT | 3 | |
| 1/2LN-C | USS LOCKNUT | 14 | |
| 5/16LN-C | USS LOCKNUT | 1 | |
| MODEL | SIDE KICK |
