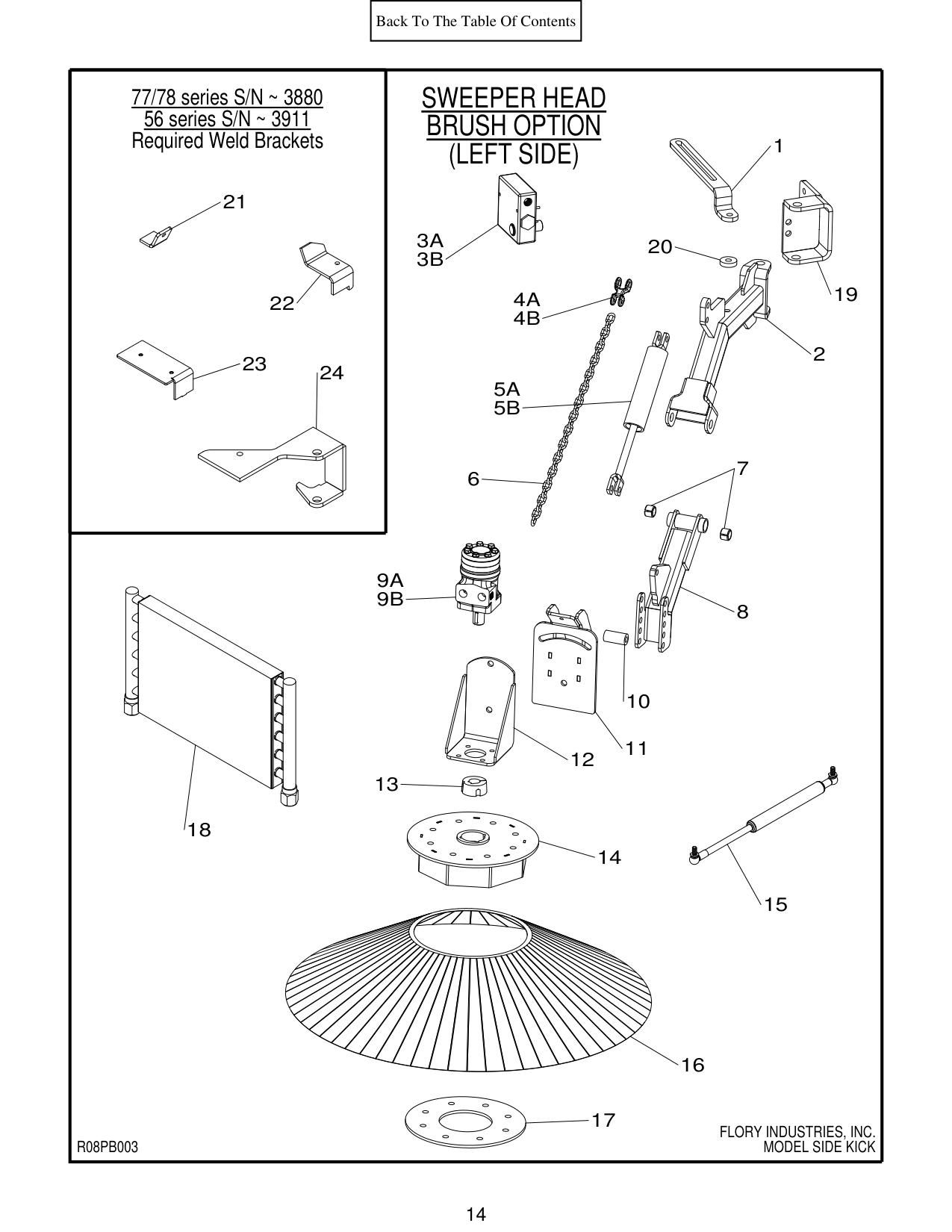

Figure 6 · Flory Flory 78 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 063T-6-6 | ADAPTER, hyd | 2 | |
| 2103-4-4 | ADAPTER, hyd | 2 | |
| 3/4 X 5-C | USS BOLT | 1 | |
| 3/4 X 2-C | USS BOLT | 2 | |
| 1/2 X 3-1/2-C | USS BOLT | 9 | |
| 1/2 X 1-1/2-C | USS BOLT | 5 | |
| 5/16 X 1-C | USS BOLT | 1 | |
| 1/4 X 2-1/2-C | USS BOLT | 2 | |
| 3/4FW-C | USS FLATWASHER | 6 | |
| 1/2FW-C | USS FLATWASHER | 6 | |
| 5/16FW-C | USS FLATWASHER | 1 | |
| 1/4LW-C | USS LOCKWASHER | 2 | |
| 3/4LN-C | USS LOCKNUT | 3 | |
| 1/2LN-C | USS LOCKNUT | 14 | |
| 5/16LN-C | USS LOCKNUT | 1 | |
| MODEL | SIDE KICK | ||
| 1 | T69837 | BRACKET, adjustment | 1 |
| 2 | T69717 | ARM, swing (36" brush) | 1 |
| 2 | T69787 | ARM, swing (46" brush) | 1 |
| 3A | RDRS195016P | VALVE, flow control | 1 |
| 3B | MK2190 | KIT, seal | 1 |
| 4A | PN4055 | CLEVIS, double | 1 |
| 4B | 87462 | PIN, clevis | 2 |
| 5A | WFC1504 | CYLINDER, hydraulic | 1 |
| 5B | LD108RK | SEAL KIT, cylinder | 1 |
| 6 | CH2024 | CHAIN, 2/0 | 1 |
| 7 | BU3091 | BUSHING, tension | 2 |
| 8 | T69727-R1 | ARM, lift | 1 |
| 9A | HM1191 | MOTOR, hydraulic | 1 |
| 9B | HM2149-K | KIT, seal | 1 |
| 10 | C1906 | SPACER | 1 |
| 11 | T69737 | BRACKET, pitch | 1 |
| 12 | T69747 | MOUNT, motor | 1 |
| 13 | 1610100 | BUSHING | 1 |
| 14 | T69757 | PLATE, brush mount (top) | 1 |
| 15 | SG4018 | SPRING, gas | 1 |
| 16 | BH1036 | BRUSH, 36" | 4 |
| 16 | BH1046 | BRUSH, 46" | 4 |
| 17 | T69767 | PLATE, brush mount (bottom) | 1 |
| 18 | OC1234 | COOLER, oil (77/78 Series s/n 3786~) | 1 |
| 19 | T69843 | BRACKET, brush arm attachment (s/n 4365~) | 1 |
| 20 | T19107 | SPACER, brush arm adjuster (s/n 4365~) Required Weld Brackets | 1 |
| 21 | T606XX-023 | MOUNT, gas spring (77/78 QTY. - 1) (56 QTY. - 2) | |
| 22 | WT69027 | MOUNT, gas spring | 1 |
| 23 | T606XX-001 | MOUNT, flow control | 1 |
| 24 | WT69017 | BRACKET, brush attachment | 1 |
| 24 | 2103-8-8 | ADAPTER, hyd | 3 |
| 24 | 0103-8-8 | ADAPTER, hyd | 1 |
| 24 | 393T-8-8 | ADAPTER, hyd | 1 |
| 24 | PD38BTX | ADAPTER, test | 1 |
| 24 | 013T-8-8 | ADAPTER, hyd | 1 |
| 24 | MODEL | SIDE KICK |
