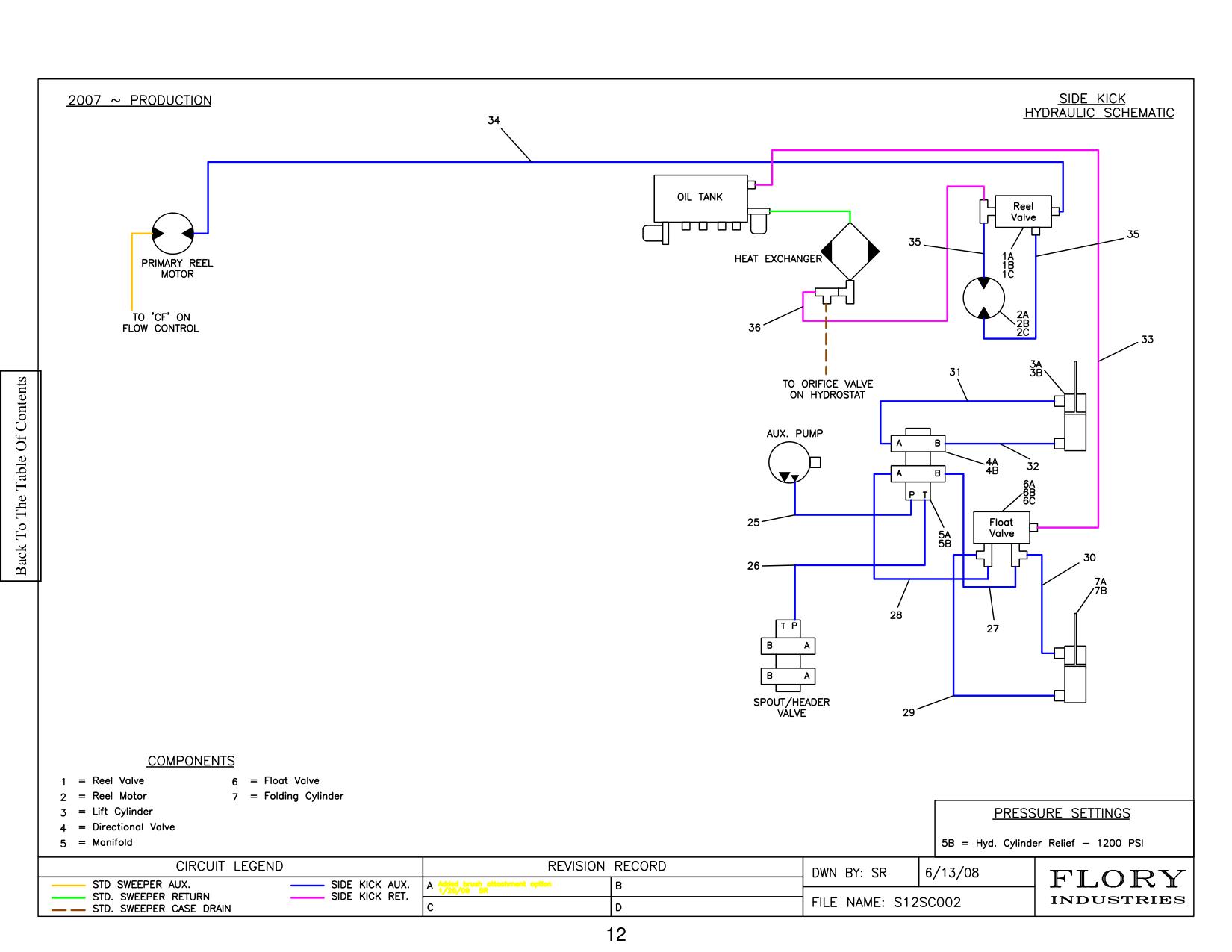

Figure 5 · Flory Flory 78 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1A | VL5077 | VALVE, reel | 1 |
| 1B | MF7077 | BODY, valve | 1 |
| 1C | ME1777 | COIL, 12v | 1 |
| 2A | HM1152 | MOTOR, reel | 1 |
| 2B | HM1152-K | SEAL KIT, motor | 1 |
| 2C | SF3152 | SHAFT, motor | 1 |
| 3A | HC2518 | CYLINDER, lift | 1 |
| 3B | 1C4433 | SEAL KIT, cylinder | 1 |
| 4A | VL5090 | VALVE, directional control | 2 |
| 4B | ME1260 | COIL, valve | 2 |
| 5A | MF7090 | MANIFOLD | 1 |
| 5B | VL7090 | VALVE, relief | 1 |
| 6A | VL5177 | VALVE, float | 1 |
| 6B | MF7177 | BODY, line | 1 |
| 6C | ME1877 | COIL, 12v | 1 |
| 7A | HC2522 | CYLINDER, folding | 1 |
| 7B | 1C4433 | SEAL KIT, cylinder | 1 |
| 25 | HOSE, aux. pump to cyl. valve port P | 1 | |
| 26 | HOSE, cyl. valve port 'T' to original hose | 1 | |
| 27 | HOSE, cyl. valve top 'B' port to float valve port #4 tee | 1 | |
| 28 | HOSE, cyl. valve top 'A' port to float valve port #2 tee | 1 | |
| 29 | HOSE, float valve port #2 tee to folding cyl. base end | 1 | |
| 30 | HOSE, float valve port #4 tee to folding cyl. rod end | 1 | |
| 31 | HOSE, cyl. valve bott. 'B' port to lift cyl. base end | 1 | |
| 32 | HOSE, cyl. valve top 'A' port to lift cyl. rod end | 1 | |
| 33 | HOSE, float valve port #1 to tank | 1 | |
| 34 | HOSE, main reel drive motor right port to reel drive valve port #2 | 1 | |
| 35 | HOSE, reel drv pt #3 to rl mtr lft. pt & reel drv vlv pt #2 to reel mtr rt. pt | 2 | |
| 36 | HOSE, reel drive valve port #2 to heat exchanger tee | 1 | |
| 36 | S12SC002 | Standard MODEL SIDE KICK |
