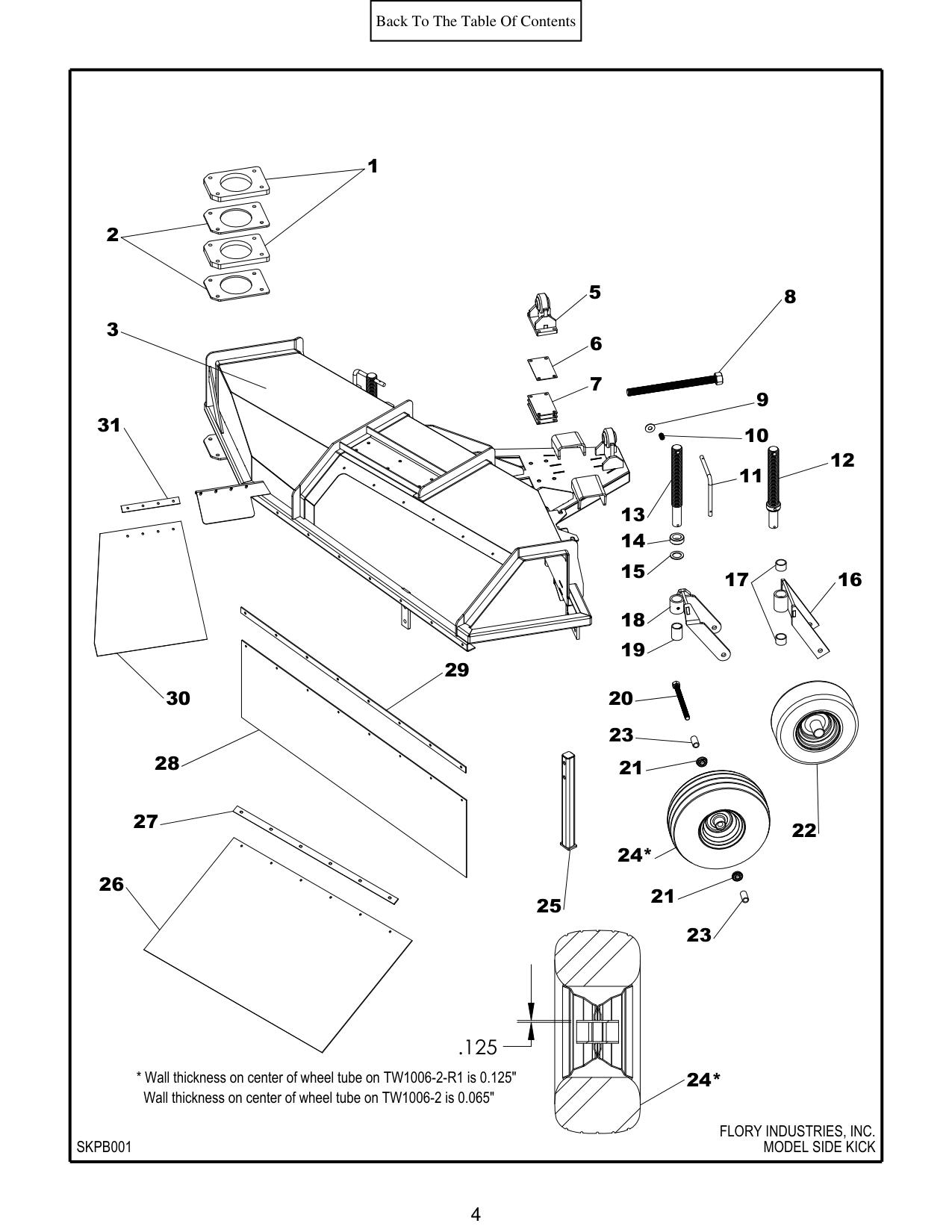

Figure 1 · Flory Flory 78 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | T39177 | SPACER, rubber | 2 |
| 2 | T69707 | SPACER | 2 |
| 3 | T69777 | FRAME, reel | 1 |
| 4 | RB5977 | BUMPER, rubber | 2 |
| 5 | T69357 | ADJUSTMENT, swivel (mfg.# 986~) | 1 |
| 6 | T69557 | SPACER, 14 Gauge (mfg.# 986~) | |
| 7 | T69457 | SPACER, 12 Gauge (mfg.# 986~) | |
| 8 | T19077 | BOLT, lift | 1 |
| 9 | 1/2FW-F | SAE FLAT WASHER | 2 |
| 10 | 523 | SPRING | 2 |
| 11 | T69127 | HANDLE, adjustment | 2 |
| 12 | T59177 | SHAFT, yoke pivot (mfg.# ~897) | 2 |
| 13 | T59277 | SHAFT, yoke pivot (mfg.# 996~) | 2 |
| 14 | C104 | COLLAR, shaft (mfg.# 996~) | 2 |
| 15 | BU1210 | BUSHING, machined (mfg.# 996~) | 2 |
| 16 | T69877 | YOKE (mfg.# ~897) | 2 |
| 17 | H694 | BUSHING, yoke (mfg.# ~897) | 4 |
| 18 | T69887 | YOKE (mfg.# 996~) | 2 |
| 19 | BU3108 | BUSHING, yoke (mfg.# 996~) | 2 |
| 20 | T19277 | BOLT, axle | 2 |
| 21A | BR1977 | BEARING, wheel (use w/ TW1006-2) | 4 |
| 21B | BR1978 | BEARING, wheel (use w/ TW1006-2-R1) | 4 |
| 22 | TW1006 | TIRE & WHEEL ASSEMBLY (13 X 5.00-6)(mfg.# ~897) | 2 |
| 23 | T19777 | SPACER, wheel (mfg.# 996~) | 4 |
| 24A | TW1006-2 | TIRE & WHEEL ASSEMBLY (15 X 6.00-6)(mfg.# 996~) | 2 |
| 24B | TW1006-2-R1 | TIRE & WHEEL ASSEMBLY (15 X 6.00-6)(mfg.# 996~) | 2 |
| 25 | T69677 | STAND, support | 1 |
| 26 | T61055 | CLAMPSTRIP, nut deflector | 1 |
| 27 | T30555 | DEFLECTOR, nut | 1 |
| 28 | T69287 | CLAMPSTRIP, bottom curtain | 1 |
| 29 | T39777 | CURTAIN, bottom | 1 |
| 30 | T69977 | CLAMPSTRIP, top/side curtain | 2 |
| 31 | T39477 | CURTAIN, top | 1 |
| 31 | SKPB001 | MODEL SIDE KICK |
