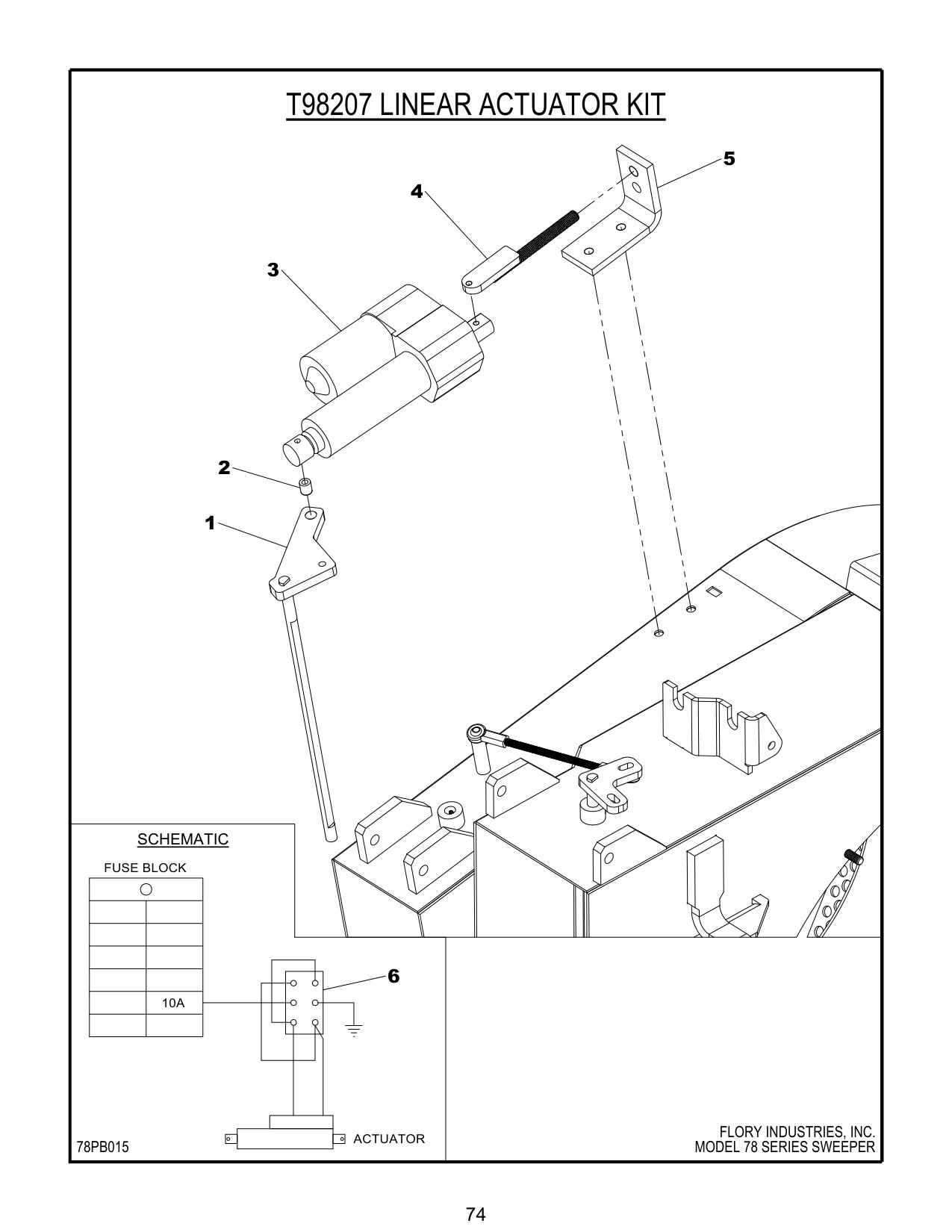

Figure 55 · Flory Flory 78 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| T98207 | OPTIONAL LINEAR ACTUATOR KIT consists of: | ||
| 1 | T50577 | SHAFT, damper (primary) | 1 |
| 2 | T19007 | BUSHING, damper shaft | 1 |
| 3 | ME0078 | ACTUATOR, linear | 1 |
| 4 | T69057 | MOUNT, damper actuator | 1 |
| 5 | T67019 | MOUNT, damper cylinder | 1 |
| 6 | S208R | SWITCH, toggle | 1 |
| 6 | 78PB015 | MODEL 78 SERIES SWEEPER |
