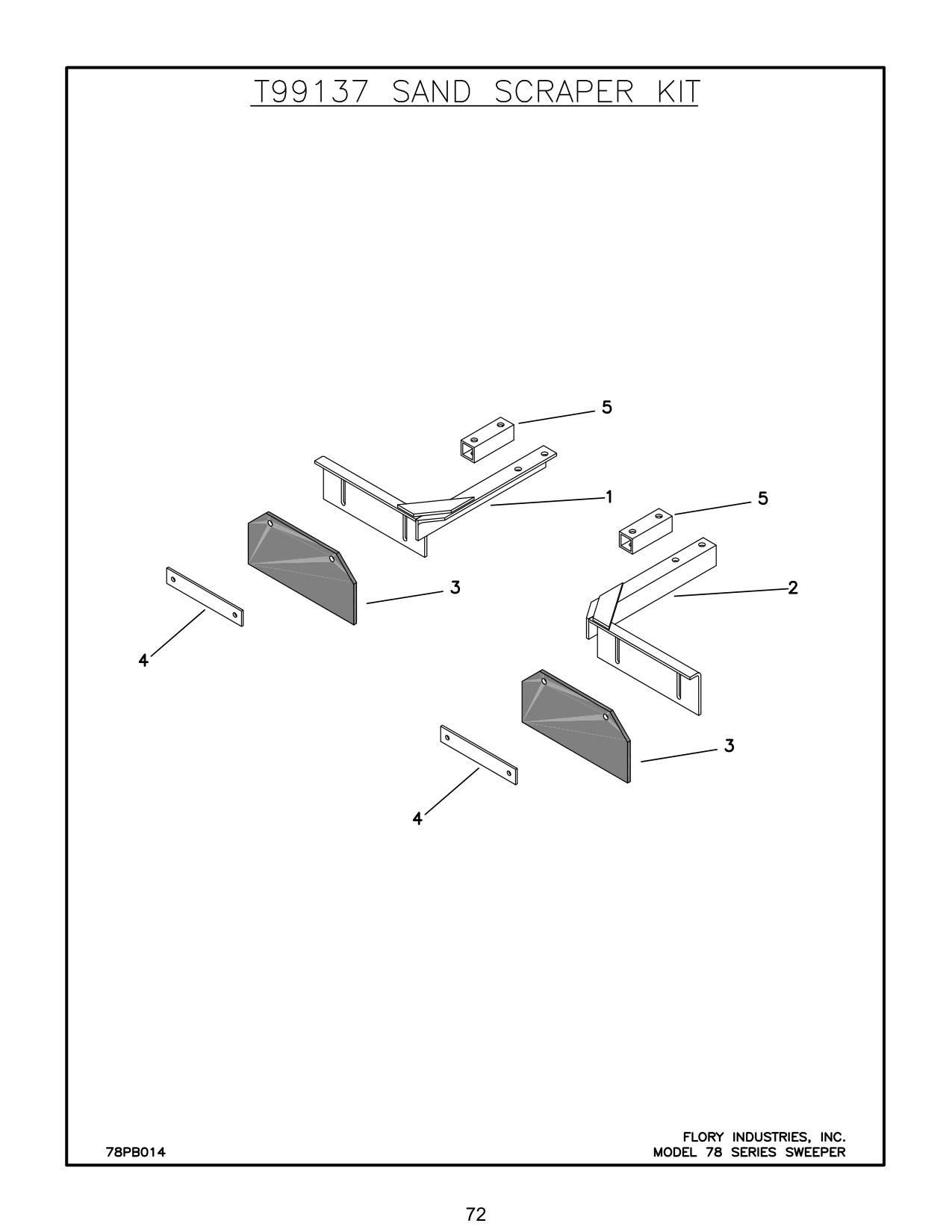

Figure 54 · Flory Flory 78 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| T99137 | OPTIONAL SAND SCRAPER KIT consists of: | ||
| 1 | T69217 | BRACKET, scraper (right) | 1 |
| 2 | T69237 | BRACKET, scraper (left) | 1 |
| 3 | T3171 | SCRAPER, wheel | 2 |
| 4 | T69017 | CLAMPSTRIP, scraper | 2 |
| 5 | T19407 | SPACER (7678 & 8678) | 2 |
| 5 | 1/2LW-C | USS LOCKWASHER | 4 |
| 5 | 1/2N-C | USS NUT | 4 |
| 5 | 3/8X1-1/4-C | USS BOLT | 4 |
| 5 | 3/8FW-C | USS FLATWASHER | 8 |
| 5 | 3/8LN-C | USS LOCKNUT | 4 |
| 5 | 1/2X3-1/4-C | USS BOLT | 4 |
| 5 | 78PB014 | MODEL 78 SERIES SWEEPER |
