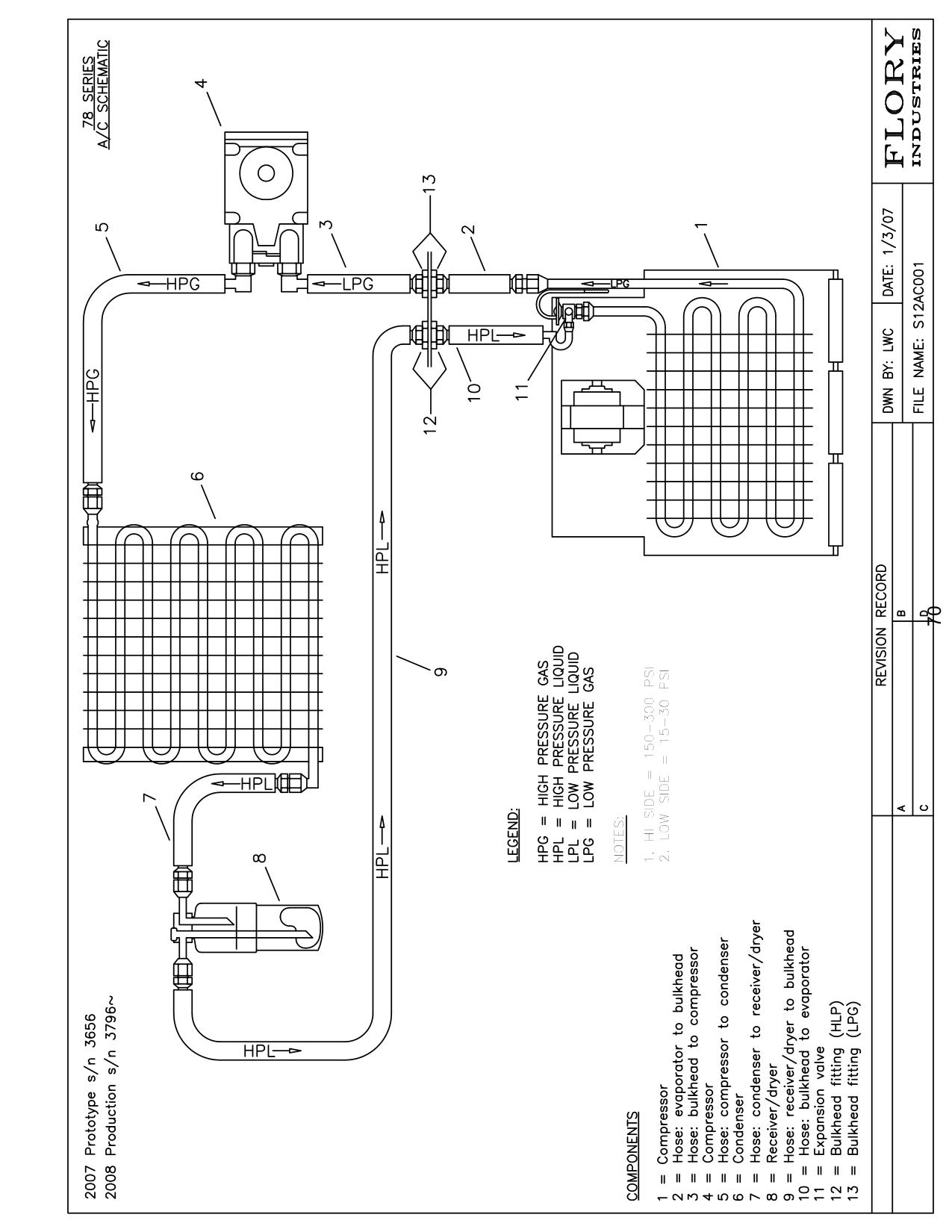

Figure 53 · Flory Flory 78 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1A | AR1110 | EVAPORATOR-ac | 1 |
| 1B | AR7111 | ASSEMBLY-evaporator fan (includes 1C & 1D) | 1 |
| 1C | ME9111 | MOTOR-evaporator fan | 1 |
| 1D | FN2111 | WHEEL-fan motor | 2 |
| 1E | FL0011 | FILTER-evaporator | 1 |
| 1F | SW1900 | THERMOSTAT-evaporator | 1 |
| 1G | SW8900 | SWITCH-fan speed | 1 |
| 1H | CT1900 | KNOB-switch (fan speed & thermostat) | 2 |
| 2 | HS9012 | HOSE-evaporator to cab bulkhead | 1 |
| 3 | HS9072 | HOSE-cab bulkhead to compressor | 1 |
| 4 | AR3175 | COMPRESSOR-ac | 1 |
| 5 | HS9852 | HOSE-compressor to condenser | 1 |
| 6 | 175-220 | CONDENSER | 1 |
| 7 | HS9613 | HOSE-condenser to receiver / drier | 1 |
| 8A | 33-0012A | RECEIVER / DRIER (s/n ~4995) | 1 |
| 8A | AR4020 | RECEIVER / DRIER (s/n 4996~) | 1 |
| 8B | SW1070 | SWITCH-pressure | 1 |
| 9 | HS9648 | HOSE-receiver / drier to cab bulkhead | 1 |
| 10 | HS9612 | HOSE-cab bulkhead to evaporator | 1 |
| 11 | AR6010 | VALVE-expansion | 1 |
| 12 | FT8006 | Fitting, cab bulkhead (HPL) | 1 |
| 13 | FT8010 | Fitting, cab bulkhead (LPG) | 1 |
| 13 | S12AC001 | MODEL 78 SERIES SWEEPER |
