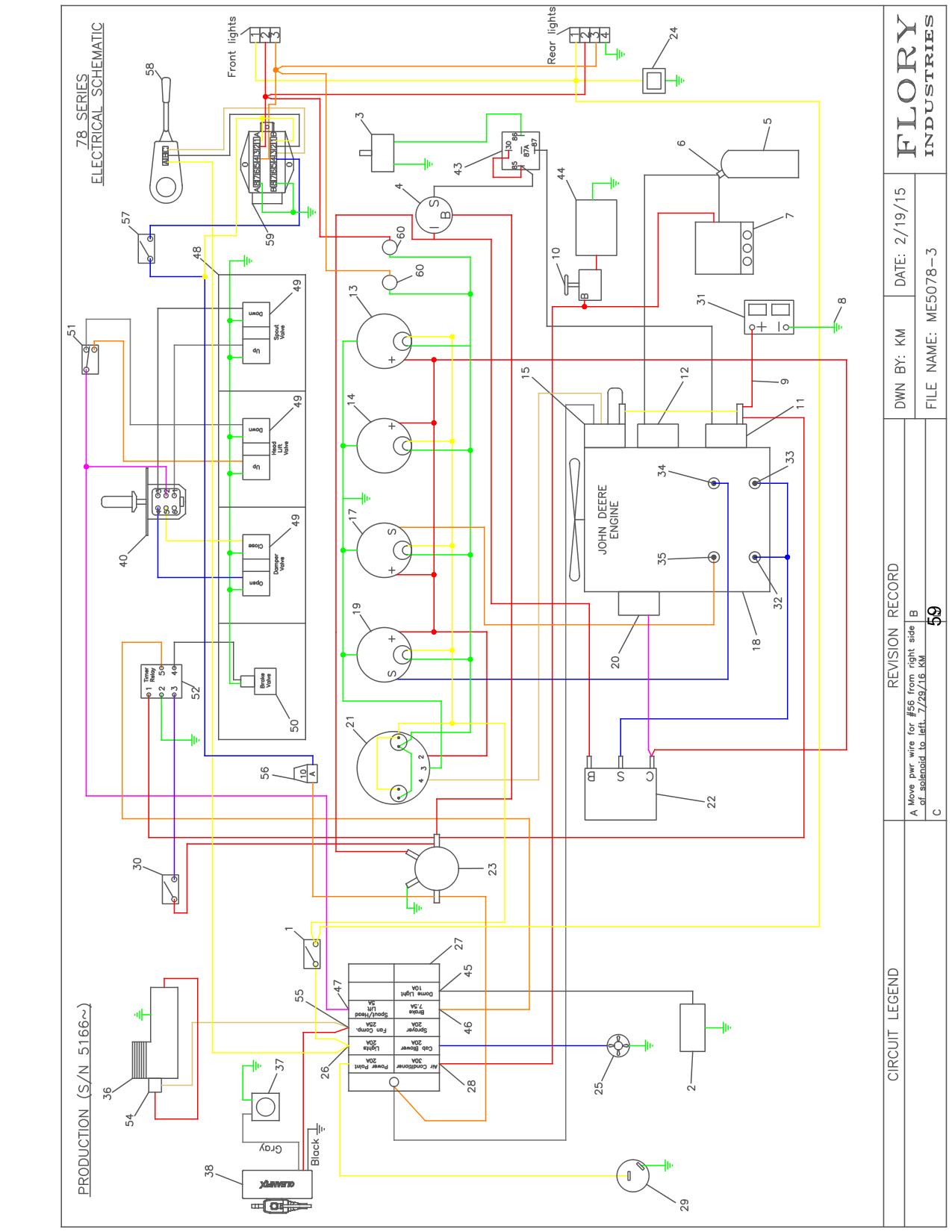

Figure 44 · Flory Flory 78 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | S2098 | SWITCH, light | 1 |
| 2 | LT5900 | LIGHT, dome | 1 |
| 3 | SW4077 | SWITCH, neutral start (on hydrostat control) | 1 |
| 4 | 95612 | SWITCH, ignition (s/n ~4269) | 1 |
| 4 | SW5078 | SWITCH, ignition (s/n 4285~) | 1 |
| 5 | 33-0012A | RECEIVER/DRYER, air conditioner (s/n ~4995) | 1 |
| 5 | AR4020 | RECEIVER/DRYER, air conditioner (s/n 4996~) | 1 |
| 6 | SW1070 | SWITCH, binary pressure | 1 |
| 7 | 175-220 | CONDENSER, air conditioner | 1 |
| 8 | 04216 | CABLE, battery (negative)(s/n ~4047) | 1 |
| 8 | CB4232 | CABLE, battery (negative)(s/n 4074~) | 1 |
| 9 | 04207 | CABLE, battery (positive)(s/n ~4047) | 1 |
| 9 | CB3238 | CABLE, battery (positive)(s/n 4074~) | 1 |
| 10 | 220-215 | SWITCH, heater fan speed | 1 |
| 11 | SA3078 | STARTER | 1 |
| 12 | AR3175 | COMPRESSOR, air conditioner | 1 |
| 13 | 331502 | GAUGE, hourmeter | 1 |
| 14 | 332502 | GAUGE, voltage | 1 |
| 15A | RE533653 | ALTERNATOR (95 amp) | 1 |
| 15B | AR55283 | CONNECTOR, alternator wire | 1 |
| 16 | 64181 | LIGHT, front | 2 |
| 17 | 310502 | GAUGE, water temperature | 1 |
| 18 | 4045T-3 | ENGINE, John Deere | 1 |
| 19 | 350516 | GAUGE, oil pressure | 1 |
| 20 | RE66153 | PUMP, fuel injection | 1 |
| 21 | GA5333 | GAUGE, tachometer | 1 |
| 22A | 117 | SWITCH, magnetic relay | 1 |
| 22B | SFE14 | FUSE, switch (1/4 amp) | 1 |
| 23 | SW3 | SOLENOID, relay | 1 |
| 24 | 88176 | LIGHT, rear (s/n ~5135) | 1 |
| 24 | LT1033 | LIGHT, rear (s/n 5166~) | 1 |
| 25A | AR7010 | BLOWER, cab | 1 |
| 25B | ME9110 | MOTOR, blower | 1 |
| 25C | FN2010 | FAN, blower | 1 |
| 26 | ATC-20 | FUSE, 20 amp (lights, sprayer, power point plug, & | 4 |
| 27 | ME3012 | BLOCK, fuse | 1 |
| 28 | ATC-30 | FUSE, 30 amp (air conditioner) | 1 |
| 29 | PG6010 | PLUG, power point | 1 |
| 30 | S2098 | SWITCH, brake (s/n ~4047) | 1 |
| 30 | SW2212 | SWITCH, brake (s/n 4074~) | 1 |
| 31 | C27-XHD | BATTERY | 1 |
| 32 | SW1075 | SWITCH, water temperature (s/n ~3880) | 1 |
| 32 | SW1078 | SWITCH, water temperature (s/n 3953~) | 1 |
| 33 | SW6075 | SWITCH, low oil engine shutdown | 1 |
| 34 | 360003 | SENDER, oil pressure | 1 |
| 35A | SD2416 | SENDER, water temperature | 1 |
| 35B | 51M7041 | O-RING, temperature sender | 1 |
| 36 | ME0904 | COMPRESSOR, fan (obsolete) | 1 |
| 36 | ME0905 | COMPRESSOR, fan | 1 |
| 37 | SW2500 | SWITCH, manual purge (used with ME0978) | 1 |
| 37 | SW2533 | SWITCH, manual purge (used with ME0979) | 1 |
| 38 | ME0978 | BOX, fan control (obsolete) | 1 |
| 38 | ME0979 | BOX, fan control | 1 |
| 39 | VL5013 | SOLENOID, brake valve (s/n ~3880) | 1 |
| 40 | NSS | CONNECTOR, plug (to hydrostat control) | 1 |
| 41 | VL5090 | VALVE, spout (s/n ~3880) | 1 |
| 42 | VL5090 | VALVE, head lift (s/n ~3880) | 1 |
| 43 | FS-SW3012 | RELAY, neutral start switch | 1 |
| 44 | ME0077 | HEATER (optional) | 1 |
| 45 | ATC-10 | FUSE, 10 amp (dome light) | 1 |
| 46 | ATC-7.5 | FUSE, 7.5 amp (brake) | 1 |
| 47 | ATC-5 | FUSE, 5 amp (spout/head lift) | 1 |
| 48 | MF7285 | MANIFOLD, solenoid valve (s/n 3953~) | 1 |
| 49 | VL4185 | VALVE, control (head lift, spout, & damper) (s/n 3953~) | 3 |
| 50 | VL5912 | VALVE, brake & high/low shift (s/n 3953~) | 2 |
| 51 | S208C | SWITCH, damper (s/n 3953~) | 1 |
| 52 | SW9030 | RELAY, time delay (s/n 3953~) | 1 |
| 53 | FS-SW3012 | RELAY, fan compressor (obsolete) | 1 |
| 54 | SW6210 | SWITCH, air pressure (obsolete) | |
| 54 | SW6210-R1 | SWITCH, air pressure (obsolete) | 1 |
| 54 | SW6210-R2 | SWITCH, air pressure (not shown) | 1 |
| 55 | ATC-25 | FUSE, 25 amp (fan compressor) | 1 |
| 56A | ME3056 | HOLDER, fuse (s/n 5166~) | 1 |
| 56B | ATC-10 | FUSE, ATC 10A (s/n 5166~) | 1 |
| 57 | S2098 | SWITCH, hazard (s/n 5166~) | 1 |
| 58 | SW0010 | SWITCH, turn signals (s/n 5166~) | 1 |
| 59 | ME0010 | MODULE, turn signals flasher (s/n 5166~) | 1 |
| 60 | ME7030 | INDICATOR, turn signals (s/n 5166~) | 2 |
| 60 | N/A | HARNESS, wire (special orders only, use machine s/n) | 1 |
