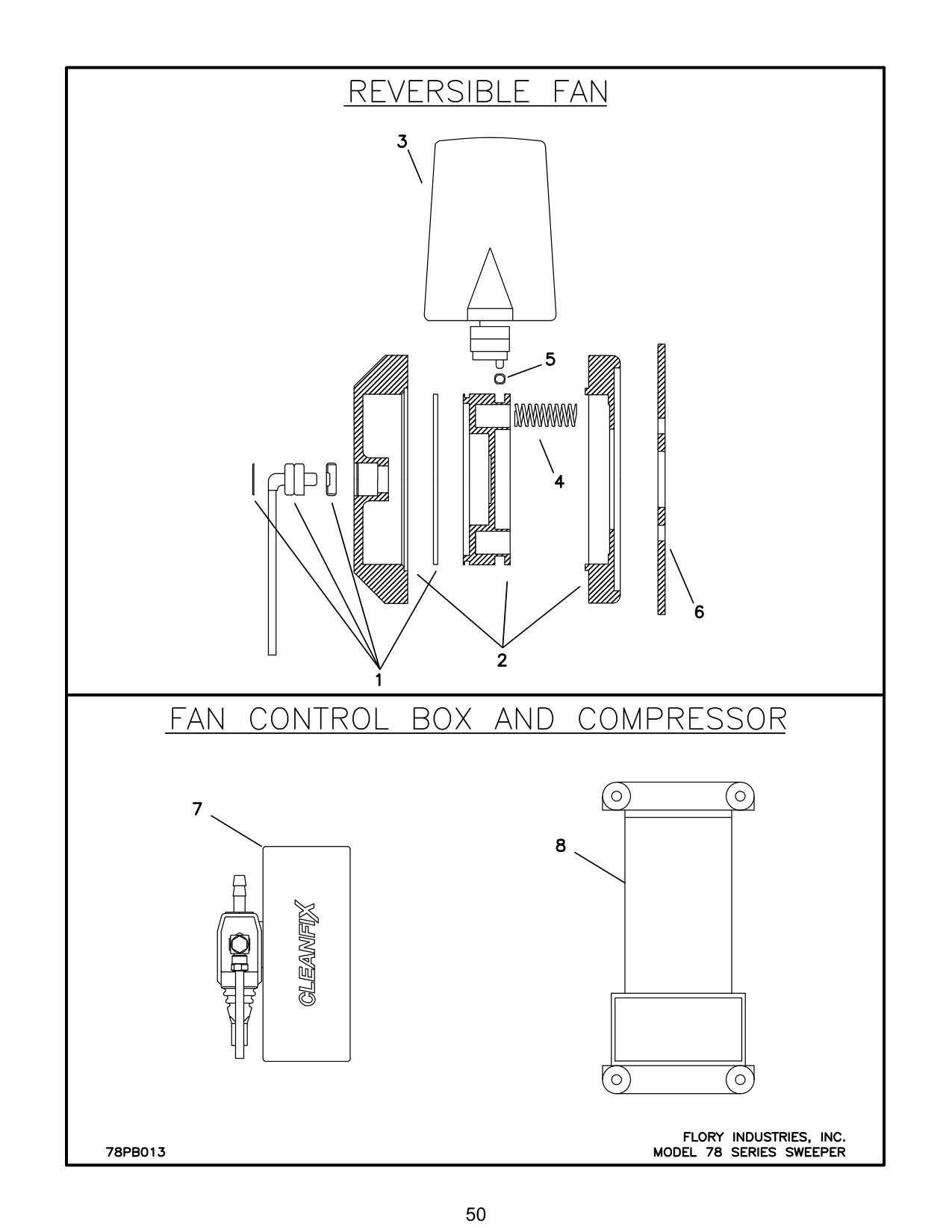

Figure 36 · Flory Flory 78 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| FN4175 | ASSEMBLY, fan (includes numbers 1-5) | 1 | |
| 1 | FN4160K | KIT, bearing and seal | 1 |
| 2 | NSS | HOUSING, fan | 1 |
| 3 | FN3075 | BLADE, fan (set of 3) | 3 |
| 4 | SG5075 | SPRING, fan piston | 10 |
| 4 | SG5175 | SPRING, fan piston (polymer) | 4 |
| 5 | BR2075 | BEARING, pin | 9 |
| 6 | BA5075 | FLANGE, adapter | 1 |
| 7A | ME0978 | BOX, fan control (obsolete - replace with ME0979) | 1 |
| 7A | ME0979 | BOX, fan control | 1 |
| 7B | HS0078-1 | AIRLINE, control box to b/h (3/16 rubber) (~50") (s/n ~4584) | |
| 7B | HS0078-1 | AIRLINE, control box to b/h (3/16 rubber) (~56") (s/n 4610~) | |
| 7B | HS0078-1 | AIRLINE, b/h to fan (~7") (s/n ~4584) | |
| 7B | HS0078-1 | AIRLINE, b/h to fan (~5.5") (s/n 4610~) | |
| 7C | HS0075-1 | AIRLINE, compressor to control box (6mm) (~48") | |
| 7D | CA2000 | CLAMP, zip (airline to radiator core) | 1 |
| 7E | CA2078 | CLAMP, ear (fan airline) (3/16")(used with rubber hose) | 4 |
| 8 | ME0904 | COMPRESSOR, fan (3-bolt mount)(obsolete) | 1 |
| 8 | ME0905 | COMPRESSOR, fan (4-bolt mount) | 1 |
| 9 | SW6210 | SWITCH, air pressure (obsolete) | |
| 9 | SW6210-R1 | SWITCH, air pressure (not shown) | 1 |
| 9 | SW6210-R2 | SWITCH, air pressure (not shown) | 1 |
| 10 | ATC-20 | FUSE, 20 amp (obsolete - replace with ATC-25) | 1 |
| 10 | ATC-25 | FUSE, 25 amp | 1 |
| 11 | FT2075 | FITTING, bulkhead (not shown)(used with poly hose) | 1 |
| 12 | FD252 | DECAL, cooling fan (not shown) | 1 |
| 13 | FT2275 | FITTING, tee (not shown)(used with poly & rubber hose) | 1 |
| 14 | FT3075 | FITTING, coupling (not shown)(used with poly hose) | 1 |
| 15 | FT0075 | FITTING, compression (not shown)(used w/ poly hose) | 1 |
| 16 | SW2500 | SWITCH, fan purge (used with ME0978) (not shown) | 1 |
| 16 | SW2533 | SWITCH, fan purge (used with ME0979) (not shown) | 1 |
| 17 | RB7078 | GROMMET, rubber (not shown)(used with rubber hose) | 1 |
| 18 | FT3078 | FITTING, hose to compressor tee (not shown) | 1 |
| 19 | ME8078 | TIMER, fan (10 Sec.) (obsolete - replace with ME0979) | 1 |
| 20 | FS-SW3012 | RELAY, pressure switch (not shown) | 1 |
| 21 | ME5211 | HARNESS, pressure switch (not shown) | 1 |
| 21 | HOSE | NOTE: When replacing poly hose remove 11, 14, & 15 and replace with rubber hose 7B-E, 17, & | |
| 21 | 78PB013 | MODEL 78 SERIES SWEEPER |
