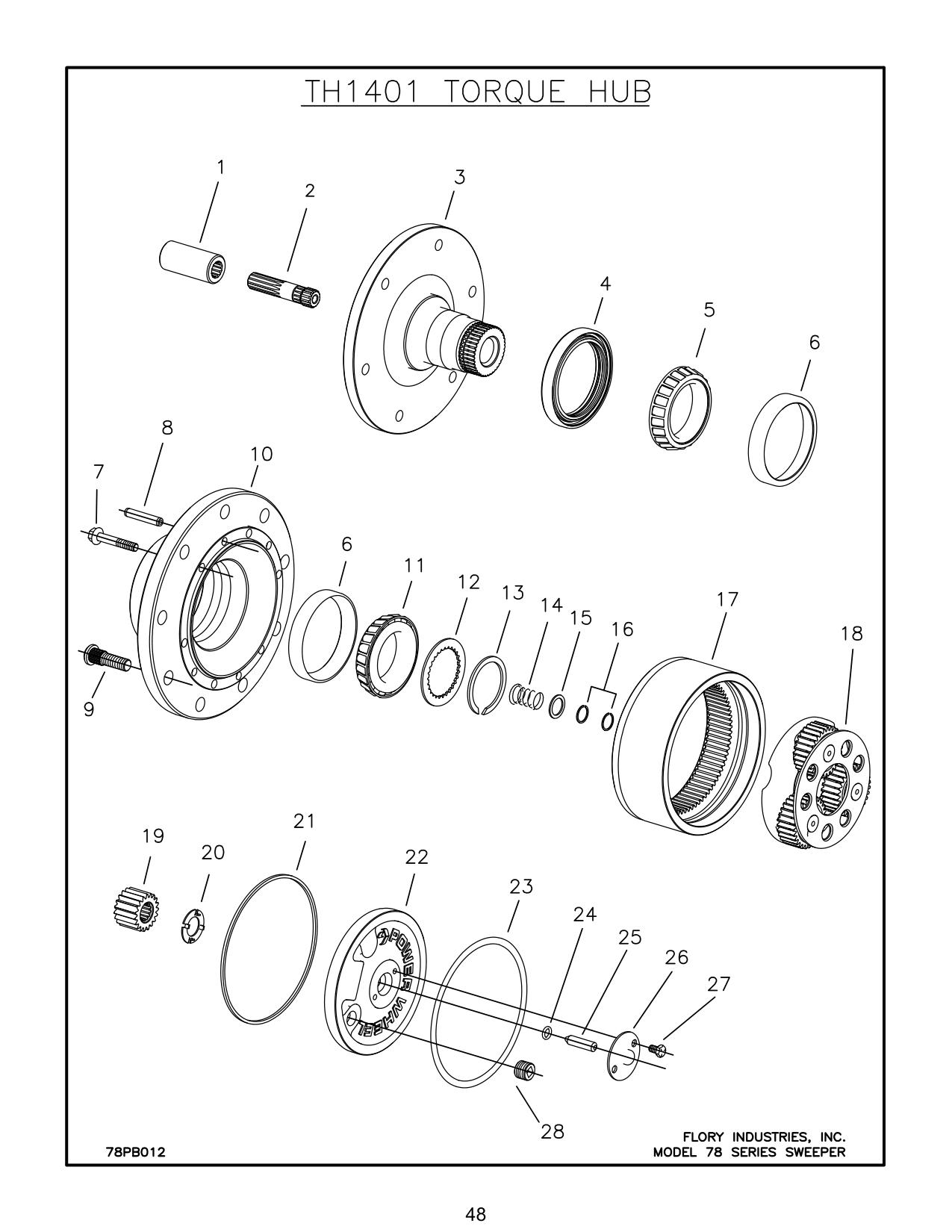

Figure 35 · Flory Flory 78 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | CP4078 | COUPLING | 1 |
| 2 | SF4078 | SHAFT, input | 1 |
| 3 | SN4078 | SPINDLE | 1 |
| 4 | SL4078 | SEAL, oil | 1 |
| 5 | BR4310 | CONE, bearing | 1 |
| 6 | BR3310 | CUP, bearing | 2 |
| 7 | BT4210 | BOLT, hex head | 6 |
| 8 | PN1110 | SPRING, pin coiled | 4 |
| 9 | BT4078 | BOLT, wheel | 9 |
| 10 | HB2009 | HUB | 1 |
| 11 | BR4410 | CONE, bearing | 1 |
| 12 | BU7310 | SPACER, splined | 1 |
| 13 | MK2410 | KIT, retaining ring | 1 |
| 14 | SG1110 | SPRING, disengage | 1 |
| 15 | WS4078 | WASHER, thrust | 1 |
| 16 | RN1078 | RING, retaining | 2 |
| 17 | GR4078 | GEAR, ring | 1 |
| 18 | HG4078 | ASSEMBLY, secondary carrier | 1 |
| 19 | GR4187 | GEAR, primary sun | 1 |
| 20 | WS5310 | WASHER, thrust | 1 |
| 21 | OR4078 | O-RING | 1 |
| 22 | CV4010 | COVER, large | 1 |
| 23 | RN1110 | RING retaining | 1 |
| 24 | OR4139 | O-RING | 1 |
| 25 | CT7010 | PLUNGER, disengage | 1 |
| 26 | CV4110 | COVER, disengage | 1 |
| 27 | BT4110 | BOLT, hex head | 2 |
| 28 | PG4010 | PLUG, magnetic | 1 |
| 28 | 78PB012 | MODEL 78 SERIES SWEEPER |
