Figure 34 · Flory Flory 78 Series Sweeper

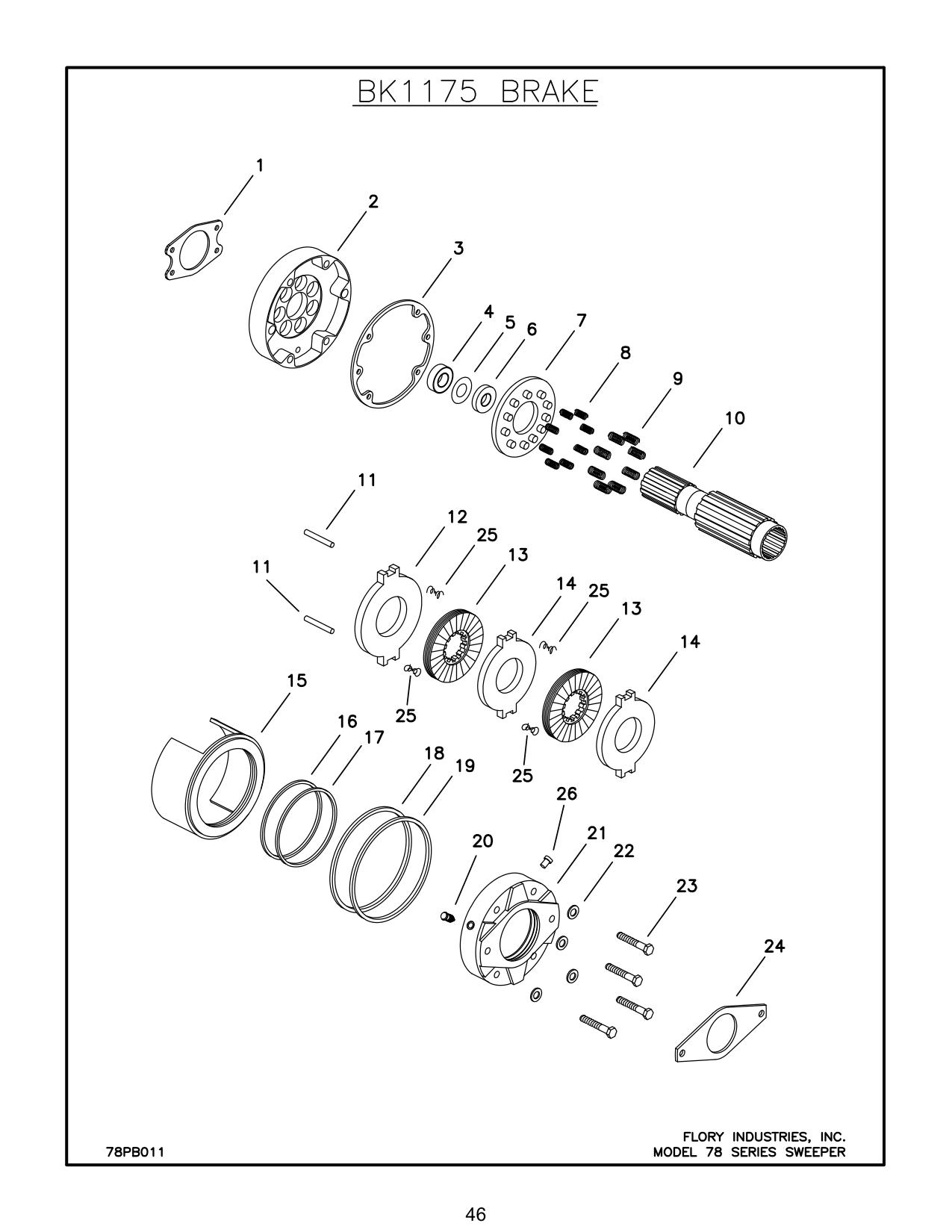

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | GS1010 | GASKET | 1 |
| 2 | HG1075 | HOUSING | 1 |
| 3 | GS1075 | GASKET, housing | 1 |
| 4 | 34574 | BEARING, ball | 1 |
| 5 | RN1075 | RING, retaining | 1 |
| 6 | 37144 | SEAL | 1 |
| 7 | RN8075 | RETAINER, spring | 1 |
| 8 | 28962 | SPRING, compression (small) | 9 |
| 9 | 28963 | SPRING, compression (large) | 10 |
| 10 | SF1075 | SHAFT, splined | 1 |
| 11 | PN8075 | PIN, torque | 2 |
| 12 | DC1075 | DISC, primary | 1 |
| 13 | DC1175 | DISC, rotating | 4 |
| 14 | DC1275 | DISC, stationary | 4 |
| 15 | PS1075 | PISTON | 1 |
| 16 | 27967 | RING, backup | 1 |
| 17 | 27808 | O RING | 1 |
| 18 | 27966 | RING, backup | 1 |
| 19 | 27777 | O RING | 1 |
| 20 | 29035 | SCREW, bleeder | 1 |
| 21 | DC1375 | PLATE, power | 1 |
| 22 | WS8075 | WASHER | 4 |
| 23 | BT1075 | BOLT | 4 |
| 24 | 28426 | GASKET | 1 |
| 25 | SG1018 | SPRING, separator | 8 |
| 26 | PG1011 | PLUG, protective | 1 |
| 26 | 78PB011 | MODEL 78 SERIES SWEEPER |
