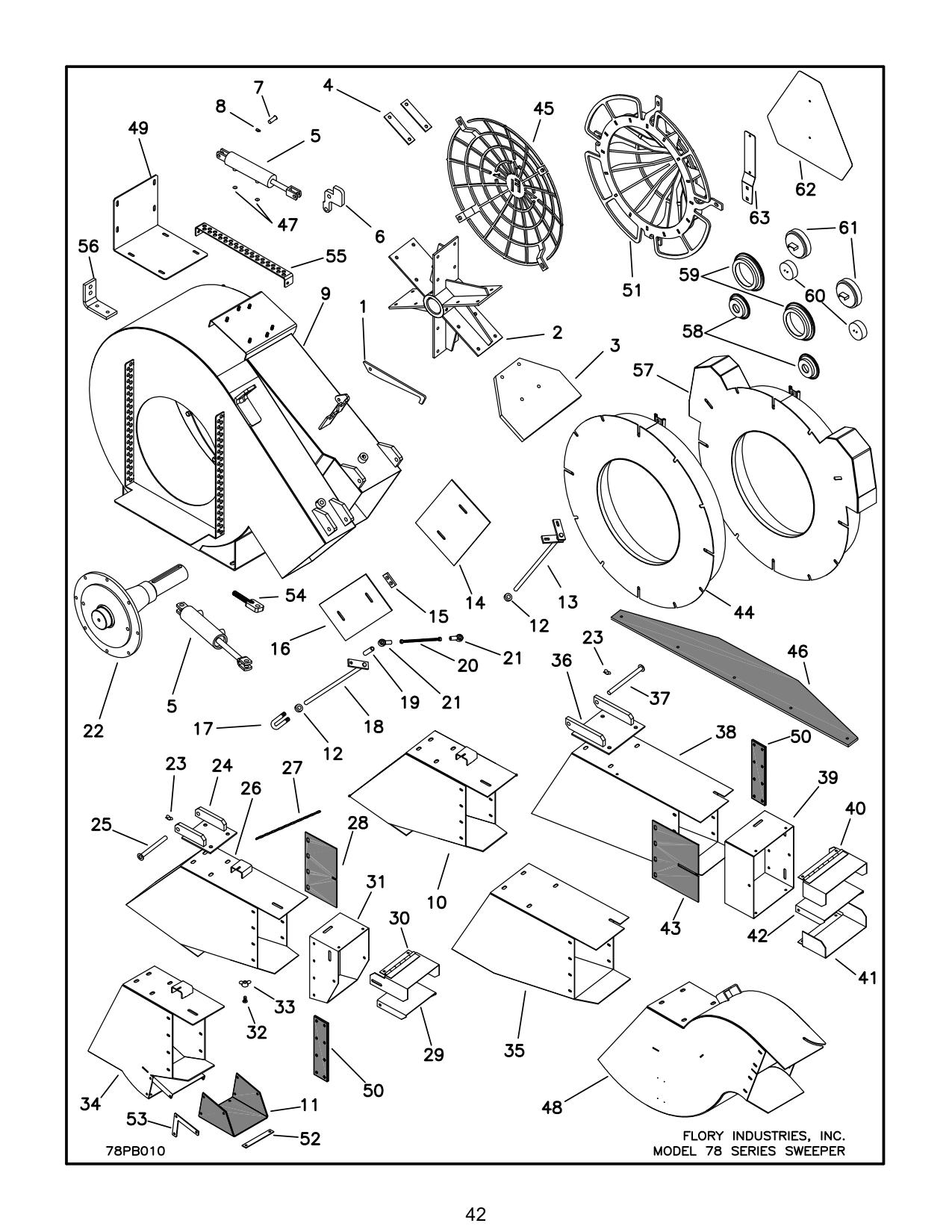

Figure 31 · Flory Flory 78 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | T23077 | LATCH, spout | 1 |
| 2 | T63947 | SPIDER, blower fan | 1 |
| 3 | T34953 | BLADE SET, blower fan (set of 6) | 1 |
| 4 | T61157 | CLAMP, fan blade (obsolete) | 12 |
| 4 | T61157-R1 | CLAMP, fan blade | 12 |
| 5A | WFC1504 | CYLINDER, spout | 1 |
| 5A | WFC1504 | CYLINDER, damper (s/n 3953~) | 1 |
| 5B | LD108RK | SEAL KIT, cylinder | 2 |
| 6 | T67417 | MOUNT, cylinder | 2 |
| 7 | 87462 | PIN, cylinder | 2 |
| 8 | RN8050 | RUE RING, cylinder pin | 2 |
| 9 | T66277 | HOUSING, blower fan | 1 |
| 10 | T66477 | SPOUT, blower (primary)(7678) | 1 |
| 11 | T31137 | DEFLECTOR, spout | 1 |
| 12 | C008 | SHAFT COLLAR, 1/2" | 2 |
| 13 | T50597 | SHAFT, damper (secondary) | 1 |
| 14 | T65637 | DAMPER, spout (secondary) | 1 |
| 15 | T6480 | CLAMP, damper u bolt | 4 |
| 16 | T65617 | DAMPER, spout (primary) | 1 |
| 17 | T1180 | U BOLT, damper shaft | 4 |
| 18 | T50567 | SHAFT, damper (primary) (s/n ~3952) | 1 |
| 18 | T50577 | SHAFT, damper (primary) (s/n 3953~) | 1 |
| 19 | T10117 | SPACER, damper cable (primary) | 1 |
| 20 | T11447 | ROD, damper linkage | 1 |
| 21 | SPF5 | ROD END | 2 |
| 22 | T52037 | SHAFT, blower fan (s/n ~4772) (obsolete) | 1 |
| 22 | T52037-R1 | SHAFT, blower fan | 1 |
| 23 | RN8050 | RUE RING, spout pin | 2 |
| 24 | T67437 | MOUNT, spout (primary) | 1 |
| 25 | T12937 | PIN, spout (primary) | 1 |
| 26 | T66387 | SPOUT, blower (primary)(8678) | 1 |
| 27 | T40127 | CHAIN, spout | 1 |
| 28 | T31117 | SEAL, spout (primary) | 1 |
| 29 | T65907 | VANE, spout (primary)(lower) | 1 |
| 30 | T65937 | VANE, spout (primary)(upper) | 1 |
| 31 | T66397 | NOSE, spout (primary) | 1 |
| 32 | 5/16X1C-C | USS BOLT | 2 |
| 33 | 5/16TN-C | USS THUMBNUT | 2 |
| 34 | T66357 | SPOUT, blower (primary)(6678, 7678, 70678) | 1 |
| 35 | T66607 | SPOUT, blower (secondary)(6678, 7678, 70678) | 1 |
| 35 | 78PB010 | MODEL 78 SERIES SWEEPER | |
| 36 | T67457 | MOUNT, spout (secondary) | 1 |
| 37 | T12977 | PIN, spout (secondary) | 1 |
| 38 | T66517 | SPOUT, blower (secondary)(80678) | 1 |
| 39 | T66527 | NOSE, spout (secondary) | 1 |
| 40 | T66037 | VANE, spout (secondary)(upper) | 1 |
| 41 | T66057 | VANE, spout (secondary)(lower) | 1 |
| 42 | T65927 | VANE, spout (secondary)(center) | 1 |
| 43 | 731127 | SEAL, spout (secondary) | 1 |
| 44 | 768177 | TUBE, air inlet (s/n ~ 5135) | 1 |
| 45 | 721237 | GUARD, air inlet | 1 |
| 46 | 731217 | FLAP, air | 1 |
| 47 | WS3011 | PLATE, orifice | 2 |
| 48A | 166637 | SPOUT, berm (secondary)(6678, 7678, 8678) | 1 |
| 48B | T69638 | SPOUT, short berm (secondary)(6678, 7678, 8678) | 1 |
| 49 | 167557 | MOUNT, air cleaner (s/n ~3830) | 1 |
| 50 | T31817 | HINGE, spout extension | 2 |
| 51 | T69197 | GUARD, air inlet (optional) | 1 |
| 52 | 760123 | CLAMPSTRIP, spout deflector (6678, 7678, 70678) | 2 |
| 53 | T61167 | CLAMPSTRIP, spout deflector (6678, 7678, 70678) | 2 |
| 54 | T67059 | MOUNT, damper cylinder (s/n 3953~) | 1 |
| 55 | 721027 | GUARD, blower | 1 |
| 56 | T67019 | MOUNT, cylinder | 1 |
| 57 | T68197 | TUBE, air inlet (s/n 5166 ~) | 1 |
| 58 | RB7208 | GROMMET, light 2.5" (s/n 5166 ~) | 2 |
| 59 | ME0110 | GROMMET, light 4" (s/n 5166 ~) | 2 |
| 60 | LT3125 | LIGHT, red s/t/t 2.5" (s/n 5166 ~) | 2 |
| 61 | LT3040 | LIGHT, amber turn 4" (s/n 5166 ~) | 2 |
| 62 | 101105 | SIGN, smv (s/n 5166 ~) | 1 |
| 63 | 112409 | BRACKET, smv (s/n 5166 ~) | 1 |
